21-Ton Log Splitter

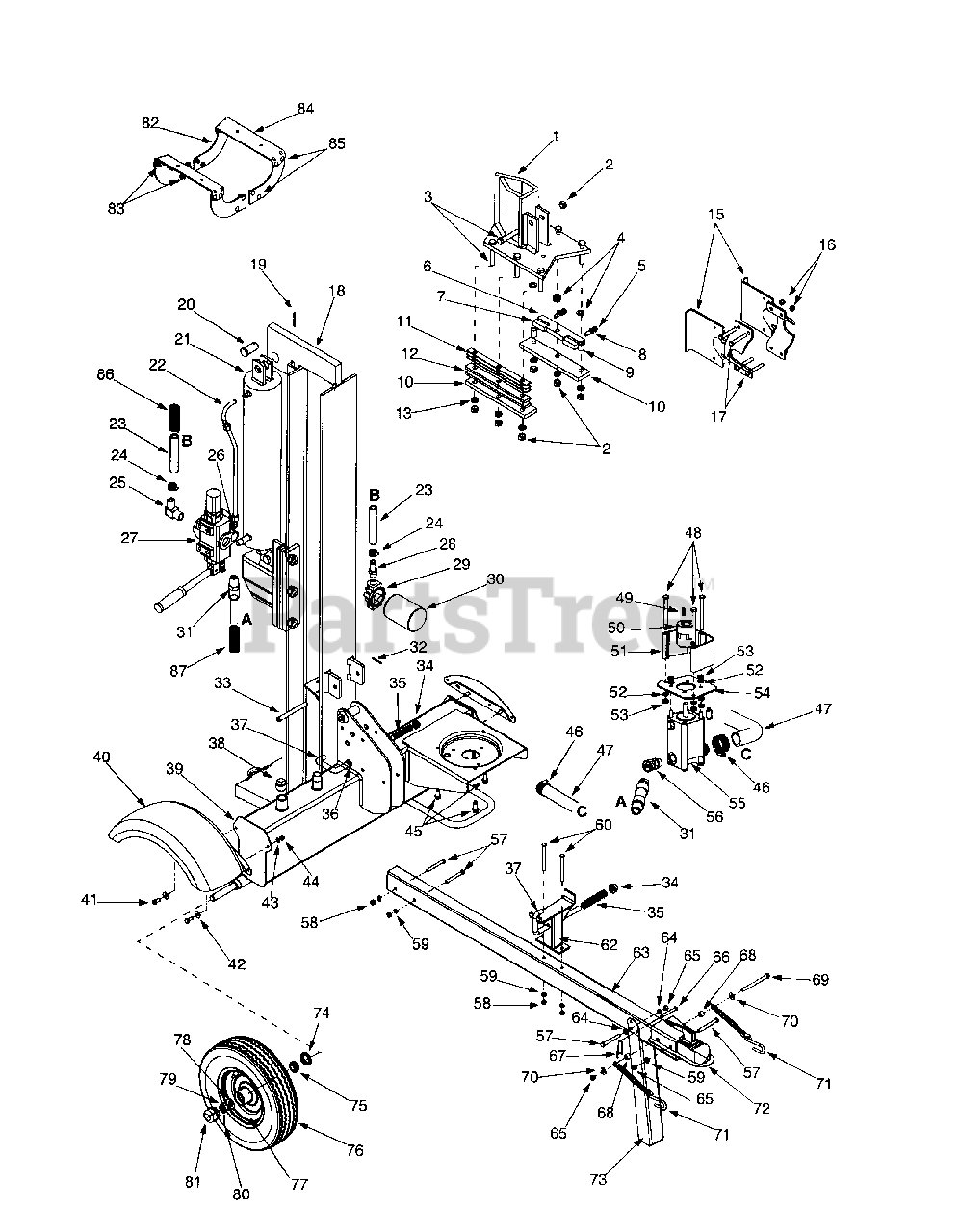

General Assembly Parts Diagram

  • Title

1

781-03238

Wedge Assembly

$

$

Not available

2

White Outdoor 712-0239

Lock Nut 1/2-20

$6.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 16

0

4

White Outdoor 736-0192

Flat Washer .531 ID x .93 OD

$4.99

$

In Stock, Qty 16

0

5

White Outdoor 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$7.49

$

In Stock, Qty 11

0

6

White Outdoor 781-0356

Floating Gib Plate

Variations

White Outdoor 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$139.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$139.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$139.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$139.99

$

Usually ships in 3-6 days

0

$130.99

$

Usually ships in 3-6 days

0

7

White Outdoor 781-0351

Adjustable Gib

$19.99

$

In Stock, Qty 11

0

8

White Outdoor 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 750-0743

Spacer

$

$

Not available

10

White Outdoor 781-0537

Back Bracket

Variations

White Outdoor 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$46.99

$

In Stock, Qty 7

0

White Outdoor 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 7

0

White Outdoor 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$46.99

$

In Stock, Qty 7

0

White Outdoor 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

11

White Outdoor 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

White Outdoor 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

$

$

12

White Outdoor 781-0350A

Fixed Gib

Variations

White Outdoor 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$32.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$32.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$32.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$32.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$32.99

$

In Stock, Qty 8

0

White Outdoor 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$32.99

$

In Stock, Qty 8

0

$30.99

$

Usually ships in 3-6 days

0

13

White Outdoor 736-0921

Lock Washer 1/2

$4.99

$

In Stock, Qty 17

0

14

White Outdoor 712-0239

Lock Nut 1/2-20

$6.49

$

In Stock, Qty 20+

0

15

White Outdoor 781-0168A

Stripper Side

Variations

White Outdoor 781-0168A-0483

Stripper Half - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0168A-0638

Stripper Half - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0168A-0637

STRIPPER HALF - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0168A-0662

STRIPPER HALF - OYSTER GRAY (0662)

$

$

Not available

$

$

16

White Outdoor 712-0130

Lock Nut 3/8-16

$4.49

$

In Stock, only 4 left!

0

17

White Outdoor 710-0859

Hex Cap Screw 3/8-16 x 2.5

$7.49

$

In Stock, Qty 20+

0

18

White Outdoor 681-0102

Beam Assembly

Variations

White Outdoor 681-0102-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 681-0093

Beam Assembly (w/o Tray)

Variations

White Outdoor 681-0093-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

20

White Outdoor 711-1135

Clevis Pin

$66.99

$

Usually ships in 3-6 days

0

21

White Outdoor 718-0306

Hydraulic Cylinder
(Superseded to 918-0306)

Variations

White Outdoor 718-0306-0483

HYDRAULIC CYLINDER 4.5" - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 718-0306-0498

HYDRAULIC CYLINDER 4.5" - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 718-0306-0637

HYDRAULIC CYLINDER 4.5" - POWDER BLACK (0637)

$

$

Not available

White Outdoor 718-0306-0638

HYDRAULIC CYLINDER 4.5" - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 718-0306-0662

HYDRAULIC CYLINDER 4.5" - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 718-0306-0674

HYDRAULIC CYLINDER 4.5" - YARDMAN YELLOW (0674)

$

$

Not available

$

$

22

White Outdoor 727-0471

Hydraulic Tube

$

$

Not available

23

White Outdoor 727-0443

Return Hose 3/4" ID x 44" Lg.

$125.99

$

In Stock, only 2 left!

0

24

White Outdoor 726-0132

Hose Clamp 5/8"

$16.99

$

Usually ships in 3-6 days

0

25

White Outdoor 737-0153

Return Elbow

$61.99

$

Usually ships in 3-6 days

0

26

White Outdoor 737-0192

90 Degree Solid Adapter

$44.99

$

Usually ships in 3-6 days

0

27

White Outdoor 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

White Outdoor 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$406.99

$

In Stock, only 2 left!

0

White Outdoor 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$406.99

$

In Stock, only 2 left!

0

$406.99

$

In Stock, only 2 left!

0

28

727-0235

3/4" Hose Adapter

$

$

Not available

29

White Outdoor 737-0316

Filter Housing
(Superseded to 753-06643)

$103.99

$

Usually ships in 3-6 days

0

30

White Outdoor 723-0405

Oil Filter
(Superseded to 723P0405)

$45.99

$

In Stock, Qty 17

0

31

White Outdoor 727-0502

High Pressure Hydraulic Hose

$221.99

$

Usually ships in 3-6 days

0

32

White Outdoor 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 15

0

33

White Outdoor 738-0805

Hinge Pin 1/2 x 4.8"

$

$

Not available

34

White Outdoor 726-0214

Push Cap

$11.99

$

In Stock, Qty 20+

0

35

White Outdoor 732-0583

Compression Spring 4"

$12.99

$

In Stock, Qty 8

0

36

White Outdoor 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$7.49

$

In Stock, only 1 left!

0

37

White Outdoor 781-0690

Locking Rod

$37.99

$

Usually ships in 3-6 days

0

38

White Outdoor 737-0236

Pipe Plug
(Superseded to 737-0348A)

$24.99

$

In Stock, only 3 left!

0

39

White Outdoor 681-0176

Frame Assembly 4.0 Gal

$

$

Not available

40

White Outdoor 681-0138

Fender Assembly
(Superseded to 781-04000)

Note: Not used in this application

Variations

White Outdoor 681-0138-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 681-0138-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0138-0638

LOGSPLITTER FENDER-MTD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0138-0662

Fender - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 681-0138-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 681-0138-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

41

White Outdoor 710-0157

Hex Cap Screw 5/16-24 x .75

Note: Not used in this application

$4.49

$

In Stock, only 3 left!

0

42

White Outdoor 736-0159

Washer 5/16

Note: Not used in this application

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

Note: Not used in this application

$4.99

$

In Stock, Qty 20+

0

44

White Outdoor 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

Note: Not used in this application

$7.49

$

In Stock, Qty 8

0

45

White Outdoor 710-0654A

Hex Washer Screw 3/8-16 x 1.

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 726-0174

Hose Clamp

$10.99

$

Usually ships in 3-6 days

0

47

White Outdoor 735-0256

Suction Hose

$

$

Not available

48

White Outdoor 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

49

White Outdoor 714-0122

Square Key 3/16" x .75

$3.99

$

In Stock, Qty 19

0

50

White Outdoor 717-0891

Flexible Coupling .750 x .500
(Superseded to 917-0891)

Note: use with 718-04127 pump, for 3/4" engine crankshaft

$168.99

$

Usually ships in 3-6 days

0

50

White Outdoor 718-04145

Flexible Coupling .875 x .500
(Superseded to 918-04145)

Note: use with 718-04127 pump, for 7/8" engine crankshaft

$96.99

$

In Stock, only 4 left!

0

50

White Outdoor 718-04395

Coupling, .875 Diameter

Note: use with 718-04127 pump, for 7/8" engine crankshaft, Not shown

$19.99

$

In Stock, Qty 8

0

50

White Outdoor 718-04392

Coupling, .500 Diameter

Note: use with 718-04127 pump, Not shown

$15.99

$

In Stock, Qty 10

0

50

White Outdoor 735-04103

Bushing, Spider Coupling

Note: use with 718-04127 pump, Not shown

$15.99

$

In Stock, Qty 13

0

50

White Outdoor 710-1842

Set Screw
(Superseded to 710-1842A)

Note: use with 718-04127 pump, Not shown

$5.99

$

In Stock, Qty 5

0

50

White Outdoor 718-0686

Flexible Coupling .875 x .437
(Superseded to 918-0686)

Note: use with 718-0683 pump

$110.99

$

In Stock, only 3 left!

0

51

White Outdoor 719-0353

Coupling Shield

$57.99

$

Usually ships in 3-6 days

0

52

White Outdoor 736-0119

Lock Washer 5/16" ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

54

White Outdoor 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

White Outdoor 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$74.99

$

In Stock, only 2 left!

0

$74.99

$

In Stock, only 2 left!

0

55

White Outdoor 718-0683

Gear Pump (11 gpm)
(Superseded to 753-05194)

Note: No longer available, furnish 753-05194 Kit

$1600.99

$

In Stock, only 1 left!

0

55

White Outdoor 753-05194

Pump Kit

Note: includes pump 718-04127 and couplers

$1600.99

$

In Stock, only 1 left!

0

55

White Outdoor 718-04127

Gear Pump (9.5 gpm)
(Superseded to 918-04127)

$796.99

$

Usually ships in 3-6 days

0

56

White Outdoor 737-0329

45 Degree Elbow

$

$

Not available

57

White Outdoor 710-0521

Hex Bolt 3/8-16 x 3"

$5.49

$

In Stock, Qty 6

0

58

White Outdoor 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

59

White Outdoor 736-0169

L-Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 710-0411

Hex Bolt 3/8-16 x 4"

$8.99

$

In Stock, Qty 20+

0

62

White Outdoor 681-0110

Support Beam Assembly
(Superseded to 681-0110-0637)

Variations

White Outdoor 681-0110-0637

SUPPORT ASSY. BEAM - POWDER BLACK (0637)

$

$

Not available

$

$

63

White Outdoor 781-0680A

Tube
(Superseded to 781-0680B)

Variations

White Outdoor 781-0680A-0637

TUBE-TONGUE - POWDER BLACK (0637)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0648

TUBE-TONGUE - TECH GRAY (0648)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0650

TUBE-TONGUE - RED METALLIC (0650)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0674

TUBE-TONGUE - YARDMAN YELLOW (0674)

$251.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0680A-0689

TUBE-TONGUE - POLO GREEN (0689)

$251.99

$

Usually ships in 3-6 days

0

$203.99

$

Usually ships in 3-6 days

0

64

White Outdoor 736-0185

Flat Washer 3/8

$4.49

$

In Stock, only 4 left!

0

65

White Outdoor 712-0375

Hex Lock Nut 3/8-16

$4.99

$

In Stock, only 1 left!

0

66

White Outdoor 711-0813

Clevis Pin 5/16 x 2.5"
(Superseded to 911-0813)

$7.49

$

In Stock, only 2 left!

0

67

White Outdoor 732-0194

Spring Pin

$4.99

$

In Stock, Qty 7

0

68

White Outdoor 750-0497

Spacer 3/8" ID x .625" OD

$11.99

$

Usually ships in 3-6 days

0

69

White Outdoor 710-0944

Hex Bolt 3/8-16 x 4"

$11.99

$

In Stock, Qty 11

0

70

White Outdoor 736-0262

Flat Washer 3/8" ID x .87" OD

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 713-0433

Chain
(Superseded to 713-0433A)

$47.99

$

In Stock, only 1 left!

0

72

White Outdoor 727-0311

Hitch Coupler

$

$

Not available

73

White Outdoor 781-0162

Jack Stand

Variations

White Outdoor 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0162-0648

STAND-JACK - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

74

White Outdoor 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.99

$

In Stock, Qty 15

0

75

White Outdoor 741-0987

Bearing Cone
(Superseded to 941-04298)

$17.99

$

In Stock, Qty 20+

0

76

White Outdoor 634-0186

Wheel Assembly

$385.99

$

In Stock, only 1 left!

0

77

White Outdoor 634-0188

Rim Assembly (Oyster Gray)

$175.99

$

Usually ships in 3-6 days

0

78

White Outdoor 736-0351

Flat Washer .76" ID x 1.5" OD

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 712-0359

Slotted Nut 3/4-16

$12.99

$

In Stock, only 2 left!

0

80

White Outdoor 714-0162

Cotter Pin 5/32" x 1-1/4"

$5.49

$

In Stock, Qty 20+

0

81

White Outdoor 734-0873

Hub Cap

$12.99

$

Usually ships in 3-6 days

0

82

White Outdoor 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

White Outdoor 781-0686-0498

LOGSPLITTER TRAY BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0686-0637

LOGSPLITTER TRAY BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

83

White Outdoor 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

84

White Outdoor 781-0682

Log Tray
(Superseded to 753-05424)

Variations

White Outdoor 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

85

White Outdoor 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

86

White Outdoor 781-0526

Hose Guard
(Superseded to 781-0526A)

Note: Not used in this application

$56.99

$

Usually ships in 3-6 days

0

87

White Outdoor 781-0538

Hose Guard
(Superseded to 781-0538A)

Note: Not used in this application

$37.99

$

Usually ships in 3-6 days

0
