GS 27T (24AF570C022) - Cub Cadet Gold Series Log Splitter (2002) General Assembly Parts Diagram

Gold Series Log Splitter

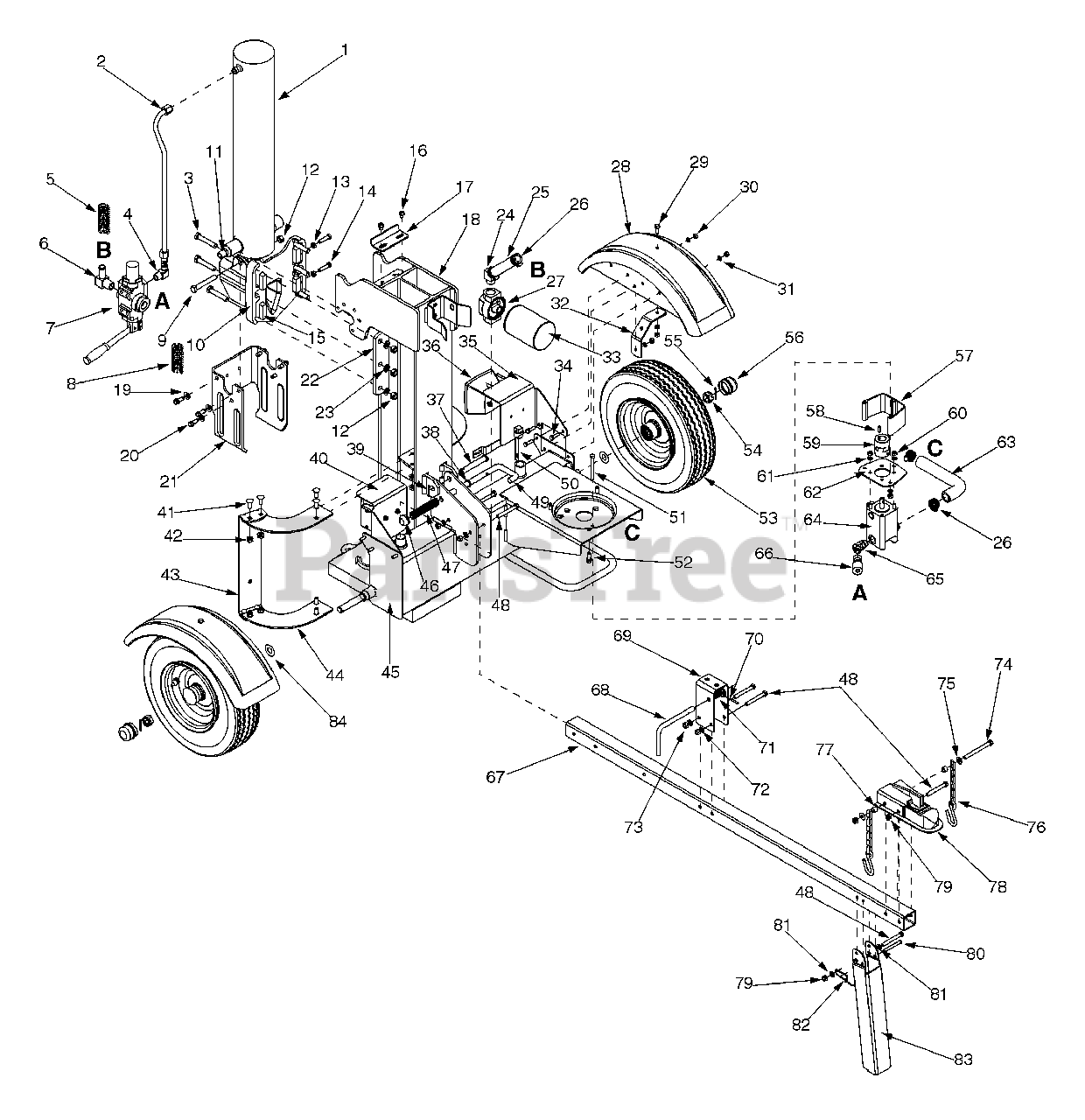

General Assembly Parts Diagram

  • Title

1

Cub Cadet 718-0769

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: replace with 718-0769A

$1050.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 753-0563

Seal Kit 4.5" for Fisher Cylinder 718-0769

Note: 718-0769 Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder. Not shown

$254.99

$

In Stock, only 1 left!

0

1

Cub Cadet 718-0769A

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: replaces 718-0769

$1050.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 953-05607

Kit Seal 4.5" for XINGHUI cylinder 718-0769A

Note: Kit Seal 4.5" for XINGHUI cylinder 718-0769A See Service Kit 753-05607. Not shown

$90.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 953-05608

Kit Seal 4.5" for ENERGY cylinder 718-0769A

Note: Kit Seal 4.5" for ENERGY cylinder 718-0769A See Service Kit 753-05608. Not shown.

$240.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 727-0634

Hydraulic Tube

$

$

Not available

3

Cub Cadet 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 16

0

4

Cub Cadet 737-0192

90 Degree Solid Adapter

$44.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 781-0526

Hose Guard
(Superseded to 781-0526A)

$56.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-0153

Return Elbow

$61.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

Cub Cadet 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$406.99

$

In Stock, only 2 left!

0

Cub Cadet 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$406.99

$

In Stock, only 2 left!

0

$406.99

$

In Stock, only 2 left!

0

7

Cub Cadet 718-0523

Lever bracket

Note: Not shown

$38.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 718-0522

Control lever cap (opposite end of handle)

Note: Not shown

$

$

Not available

8

Cub Cadet 781-0538

Hose Guard
(Superseded to 781-0538A)

$37.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0515

Hex Cap Screw 1/2-20 x 3.50

$12.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$260.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 737-0238

Nipple Pipe 1/2-14

$27.99

$

In Stock, only 4 left!

0

12

Cub Cadet 712-0239

Lock Nut 1/2-20

$6.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$7.49

$

In Stock, Qty 11

0

15

Cub Cadet 781-0351

Adjustable Gib

$19.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-0604A

Hex Washer Screw 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 781-1054

Support Bracket
(Superseded to 781-1054-0637)

Variations

Cub Cadet 781-1054-0637

BRACKET-SUPT CYLIND - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 681-0162

Beam Assembly
(Superseded to 681-04071A-0637)

Variations

Cub Cadet 681-0162-0637

USE 681-04071A-0637 BEAM ASM- - POWDER BLACK (0637)

$1726.99

$

Usually ships in 3-6 days

0

$1726.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0300

Flat Washer .406 ID x .875 OD

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 781-1048

Dislodger
(Superseded to 781-04426)

Variations

Cub Cadet 781-1048-0637

Dislodger Bracket - POWDER BLACK (0637)

$92.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

Cub Cadet 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$43.99

$

In Stock, only 2 left!

0

$43.99

$

In Stock, only 2 left!

0

23

Cub Cadet 736-0921

Lock Washer 1/2

$4.99

$

In Stock, Qty 17

0

24

Cub Cadet 737-0312

Adapter 3/4-14

$51.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 727-0443

Return Hose 3/4" ID x 44" Lg.

$125.99

$

In Stock, only 2 left!

0

26

Cub Cadet 726-0132

Hose Clamp 5/8"

$16.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 737-0316

Filter Housing
(Superseded to 753-06643)

$103.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-2496

Fender
(Superseded to 731-2496A)

$87.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-1238

Hex Washer Screw 5/16-18 x .875
(Superseded to 710-1238A)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 781-1024

Fender Mounting Bracket
(Superseded to 781-1024A-0637)

Variations

Cub Cadet 781-1024-0637

BRACKET-MT FEND - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$45.99

$

In Stock, Qty 17

0

34

Cub Cadet 710-0376

Hex Cap Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 681-0164

Light Bracket LH
(Superseded to 681-0164-0637)

Variations

Cub Cadet 681-0164-0637

BRACKET ASM-LIGHT LH - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 625-0062

Taillight

$206.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 725-2058

RH Taillight Assembly

Note: Not shown

$

$

Not available

36

Cub Cadet 725-2059

LH Taillight Assembly

Note: Not shown

$

$

Not available

36

Cub Cadet 725-2060

Wiring Harness

$

$

Not available

37

Cub Cadet 711-1587

Clevis Pin

$

$

Not available

38

Cub Cadet 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$7.49

$

In Stock, only 1 left!

0

39

Cub Cadet 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 15

0

40

Cub Cadet 781-1027

Light Bracket RH
(Superseded to 781-1027A-0637)

Variations

Cub Cadet 781-1027-0637

BRACKET-LIGHT - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

42

Cub Cadet 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

43

Cub Cadet 781-0682

Log Tray
(Superseded to 753-05424)

Variations

Cub Cadet 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

Cub Cadet 781-0686-0498

Log Splitter Tray Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0686-0637

Log Splitter Tray Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

45

Cub Cadet 681-0161

Frame Assembly
(Superseded to 753-05565)

$

$

Not available

46

Cub Cadet 726-0214

Push Cap

$11.99

$

In Stock, Qty 20+

0

47

Cub Cadet 732-0583

Compression Spring

$12.99

$

In Stock, Qty 8

0

48

Cub Cadet 710-0521

Hex Bolt 3/8-16 x 3"

$5.49

$

In Stock, Qty 6

0

49

Cub Cadet 781-0690

Lock Rod

$37.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 737-0348

Vented Dipstick
(Superseded to 737-0348A)

$24.99

$

In Stock, only 3 left!

0

51

Cub Cadet 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

52

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 634-0186

Wheel Assembly

$385.99

$

In Stock, only 1 left!

0

53

Cub Cadet 941-04089

Cone Bearing
(Superseded to 941-04298)

$17.99

$

In Stock, Qty 20+

0

53

Cub Cadet 921-0168

Grease Retainer

$9.99

$

In Stock, Qty 15

0

54

Cub Cadet 712-0359

Slotted Nut 3/4-16

$12.99

$

In Stock, only 2 left!

0

55

Cub Cadet 714-0162

Cotter Pin

$5.49

$

In Stock, Qty 20+

0

56

Cub Cadet 734-0873

Hub Cap

$12.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 719-0353

Coupling Shield

$57.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 714-0122

Square Key 3/16" x .75

$3.99

$

In Stock, Qty 19

0

59

Cub Cadet 717-0891

Flexible Coupling (Stamped L075) .750 x .500 ID
(Superseded to 917-0891)

Note: use with 718-04127 pump, for 3/4" engine crankshaft

$168.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 718-04145

Flexible Coupling (Stamped L075) .875 x .500 ID
(Superseded to 918-04145)

Note: use with 718-04127 pump, for 7/8" engine crankshaft

$96.99

$

In Stock, only 4 left!

0

59

Cub Cadet 735-0652

Bushing, Spider Coupling

Note: not shown, use with 717-0891, 718-04145 or 718-0686 coupling

$49.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 718-04395

Coupling .875 ID Engine Side

Note: not shown, use with 718-04127 pump (Not compatible with coupling stamped L075)

$19.99

$

In Stock, Qty 8

0

59

Cub Cadet 718-04392

Coupling .500 ID Pump Side

Note: not shown, use with 718-04127 pump (Not compatible with coupling stamped L075)

$15.99

$

In Stock, Qty 10

0

59

Cub Cadet 735-04103

Bushing, Spider Coupling

Note: not shown, use with 718-04392 and 718-04395 coupling

$15.99

$

In Stock, Qty 13

0

59

Cub Cadet 710-1842

Set Screw 1/4-20 x .38
(Superseded to 710-1842A)

Note: Not shown

$5.99

$

In Stock, Qty 5

0

59

Cub Cadet 718-0686

Flexible Coupling (Stamped L075) .875 x .437 ID
(Superseded to 918-0686)

Note: use with 718-0683 pump

$110.99

$

In Stock, only 3 left!

0

60

Cub Cadet 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

61

Cub Cadet 736-0119

Lock Washer 5/16" ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 781-0097

Rear Coupling Support
(Superseded to 781-0097-0637)

Variations

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$74.99

$

In Stock, only 2 left!

0

$74.99

$

In Stock, only 2 left!

0

63

Cub Cadet 727-0633

Hose

$

$

Not available

64

Cub Cadet 718-0683

Gear Pump (11 gpm)
(Superseded to 753-05194)

Note: No longer available, furnish 753-05194 Kit

$1600.99

$

In Stock, only 1 left!

0

64

Cub Cadet 753-05194

Pump Kit

Note: includes 718-04127 pump & couplings, Not shown

$1600.99

$

In Stock, only 1 left!

0

64

Cub Cadet 718-04127

Gear Pump (9.5 gpm)
(Superseded to 918-04127)

$796.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 737-0329

45 Degree Elbow

$

$

Not available

66

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$221.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 781-0788

Tube Assembly

Variations

Cub Cadet 781-0788-0637

TUBE-TONGUE LOGSP - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0788-0650

TUBE-TONGUE LOGSP - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0788-0689

TUBE-TONGUE LOGSP - POLO GREEN (0689)

$

$

Not available

Cub Cadet 781-0788-0709

TUBE-TONGUE LOGSP - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 781-0788-0638

TUBE-TONGUE LOGSP - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0788-0662

TUBE-TONGUE LOGSP - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0788-0716

TUBE-TONGUE LOGSP - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 781-0788-0721

USE 781-0788-4044 TUBE-TONGUE - SEARS RED (0721)

$

$

Not available

Cub Cadet 781-0788-4021

TUBE-TONGUE LOGSP - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 781-0788-4044

TUBE-TONGUE LOGSP - CRAFTSMAN RED (4044)

$

$

Not available

$165.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 747-1261

Latch Rod

$42.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 781-1045

Latch

Variations

Cub Cadet 781-1045-0637

Latch - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0638

LATCH - MTD/TROY-BILT RED (0638)

$63.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0606

LATCH LOGSP - MAJESTIC ORANGE (0606)

$51.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0650

LATCH LOGSP - RED METALLIC (0650)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0662

LATCH - OYSTER GRAY (0662)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0689

LATCH - POLO GREEN (0689)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0716

LATCH LOGSP - CUB YELLOW-99 (0716)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-0721

USE 781-1045-4044 LATCH - SEARS RED (0721)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-4021

LATCH LOGSP - CUB YELLOW 2 (4021)

$59.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-1045-4044

LATCH LOGSP - CRAFTSMAN RED (4044)

$59.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 715-0120

Spiral Pin

$11.99

$

In Stock, Qty 5

0

71

Cub Cadet 732-3127

Spring Compression
(Superseded to 932-3127)

$4.99

$

In Stock, Qty 15

0

72

Cub Cadet 736-0169

L-Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

74

Cub Cadet 710-0944

Hex Cap Screw 3/8-16 x 4.25

$11.99

$

In Stock, Qty 11

0

75

Cub Cadet 736-0262

Flat Washer .385 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 713-0433

Chain
(Superseded to 713-0433A)

$47.99

$

In Stock, only 1 left!

0

77

Cub Cadet 750-0497

Spacer .375 ID x .625 OD

$11.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 727-0311

Coupling Hitch

$

$

Not available

79

Cub Cadet 712-0375

Hex Lock Nut 3/8-16

$4.99

$

In Stock, only 1 left!

0

80

Cub Cadet 711-0813

Clevis Pin
(Superseded to 911-0813)

$7.49

$

In Stock, only 2 left!

0

81

Cub Cadet 736-0185

Flat Washer .375 ID x .738 OD

$4.49

$

In Stock, only 4 left!

0

82

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, Qty 7

0

83

Cub Cadet 781-0789

Jack Stand

Variations

Cub Cadet 781-0789-0637

Log Splitter Jack Stand - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0789-0638

STAND-JACK LOGSPL - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0789-0709

STAND-JACK LOGSPL - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 781-0789-0716

STAND-JACK LOGSP - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 781-0789-0650

STAND-JACK LOGSP - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0789-0662

STAND-JACK LOGSPL - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0789-0689

STAND-JACK LOGSPL - POLO GREEN (0689)

$

$

Not available

$

$

84

Cub Cadet 736-0351

Flat Washer .760 ID x .500 OD

$4.49

$

In Stock, Qty 20+

0
