GS190 LA QHAF (GCACA) - Honda Engine, Made in USA (SN: GCACA-1000001 - GCACA-2074904) OIL PAN Parts Diagram

Engine, Made in USA

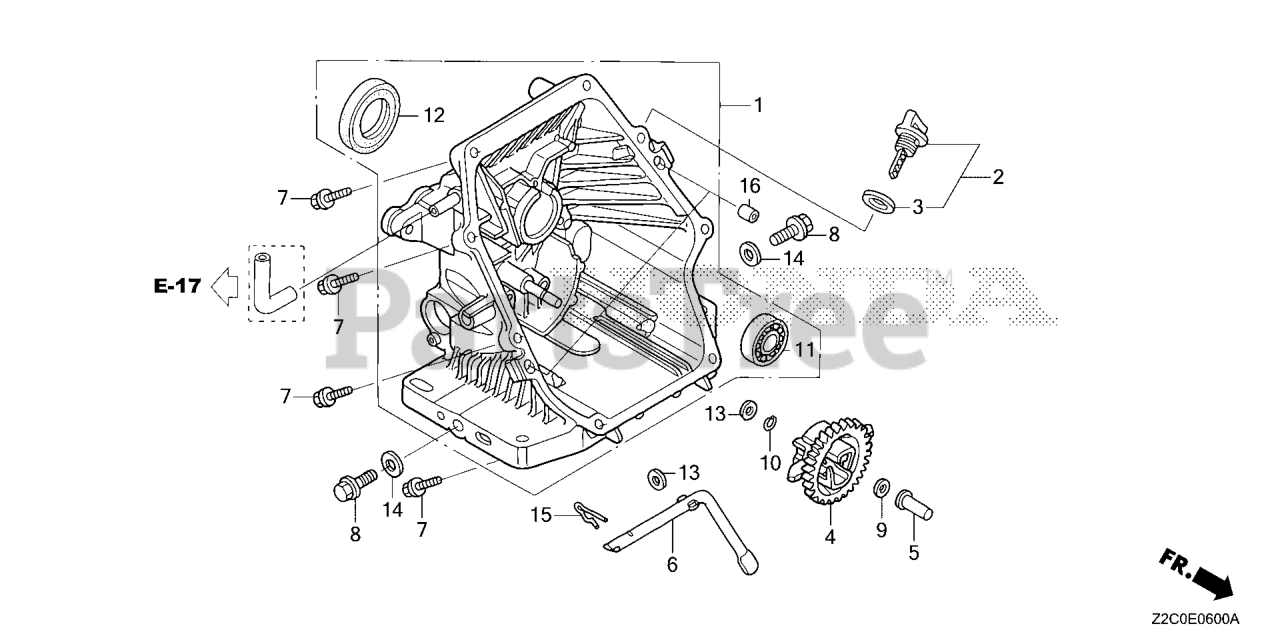

OIL PAN Parts Diagram

  • Title

1

Honda 11300-Z2A-660

COVER ASSY., CRANKCASE

$156.99

$

Usually ships in 3-6 days

0

2

Honda 15600-ZF0-003

CAP ASSY., OIL FILLER

Note: Use up to Engine SN 2001641.

$10.99

$

In Stock, only 3 left!

0

2

Honda 15650-Z1A-000

GAUGE ASSY., OIL LEVEL

Note: Use from Engine SN 2001642.

$1.49

$

In Stock, only 2 left!

0

3

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

Note: Use up to Engine SN 2001641.

$3.99

$

In Stock, Qty 20+

0

3

Honda 15625-Z2L-801

GASKET, OIL FILLER CAP (NOT AVAILABLE)

Note: Use from Engine SN 2001642.

$

$

Not available

4

Honda 16510-ZL8-000

GOVERNOR ASSY.

$13.99

$

In Stock, only 2 left!

0

5

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

Note: Use up to Engine SN 1999999.

$4.49

$

In Stock, Qty 12

0

5

Honda 16531-Z8B-000

SLIDER, GOVERNOR

Note: Use from Engine SN 2000001.

$4.99

$

Usually ships in 3-6 days

0

6

Honda 16541-Z8A-000

SHAFT, GOVERNOR ARM

$1.49

$

In Stock, Qty 8

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$3.49

$

In Stock, Qty 20+

0

8

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$5.99

$

In Stock, Qty 10

0

9

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, Qty 20+

0

10

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 20+

0

11

Honda 91001-ZL8-003

BEARING, RADIAL BALL (62/28)

$31.99

$

Usually ships in 3-6 days

0

12

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

$8.49

$

In Stock, only 4 left!

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

14

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.99

$

In Stock, Qty 20+

0

15

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 20+

0

16

Honda 90701-Z8B-000

PIN, DOWEL (8X20)

$0.99

$

Usually ships in 3-6 days

0
