GSTBC (UT-15084-C) - Homelite String Trimmer Engine Internal Parts Diagram

String Trimmer

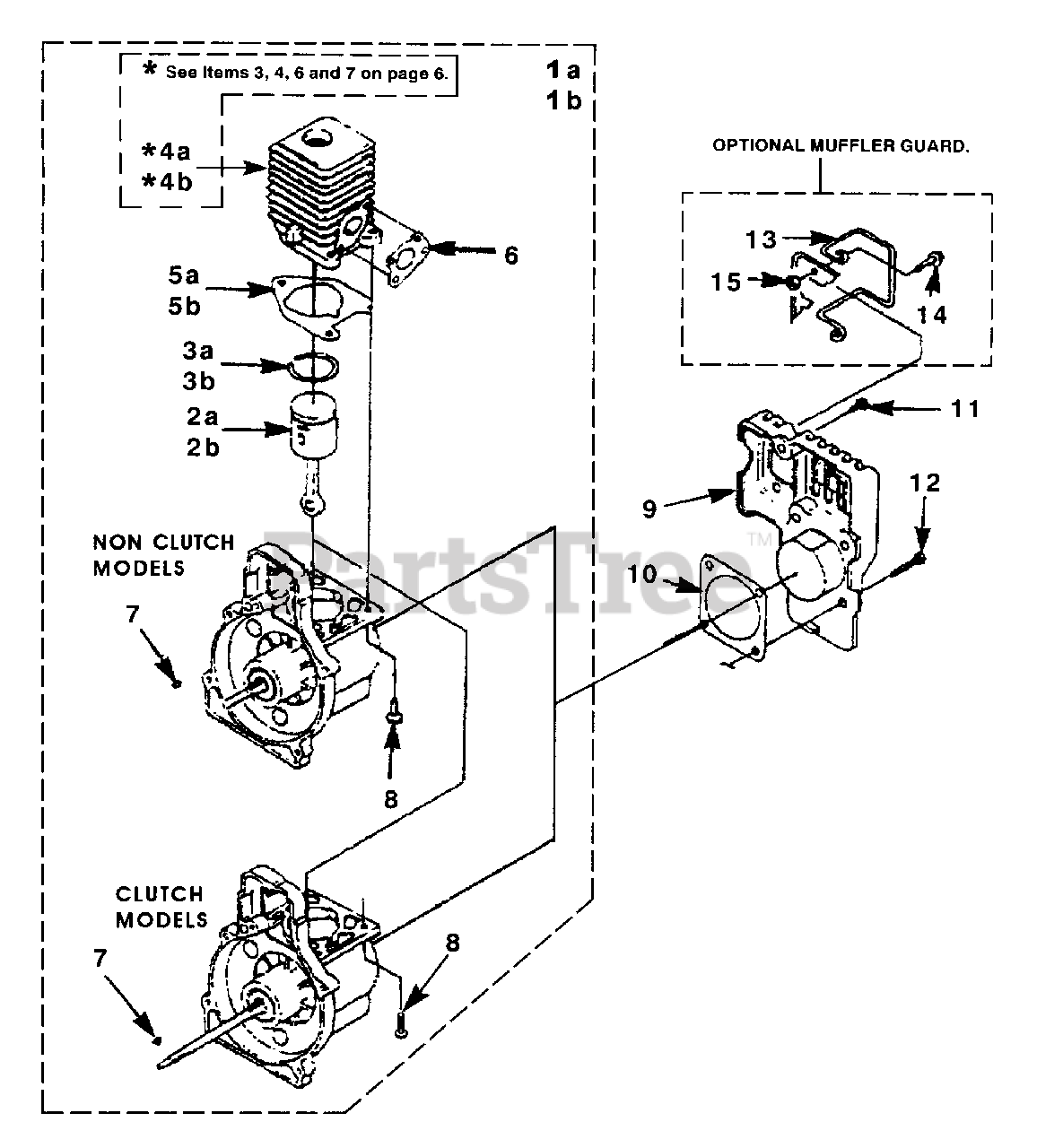

Engine Internal Parts Diagram

  • Title

1a

Homelite A07134

SHORT BLOCK (30CC Non Clutch)
(Superseded to UP00386)

Note: Short Blocks Include Items 2a-8

$

$

Not available

1b

Homelite A07135

SHORT BLOCK (30CC Clutch)
(Superseded to UP03121A)

Note: Short Blocks Include Items 2a-8

$237.99

$

Usually ships in 3-7 days

0

2a

Homelite A03599

30CC PISTON & ROD
(Superseded to UP03037)

$53.99

$

In Stock, only 1 left!

0

3a

Homelite 03179

RING - Piston
(Superseded to 690161005)

$

$

Not available

4a

Homelite A09058

30CC CYLINDER KIT
(Superseded to UP07146)

$

$

Not available

5a

Homelite 04388B

GASKET - Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 08840

GASKET - Heat Dam

$

$

Not available

7

Homelite 69250

KEY - Woodruff

$

$

Not available

8

Homelite 825691

SCREW - Thread Forming (10-24 X 3/4")

Note: Torque Specs. 55-65 In/Lbs, 6.2-7.3 Nm, Red 262 Required Loctite

$

$

Not available

?1c

Homelite A09055

SHORT BLOCK (25CC Non Clutch)
(Superseded to UP03117)

Note: Short Blocks Include Items 2b-8

$

$

Not available

?1d

Homelite A09056

SHORT BLOCK (25CC Clutch)
(Superseded to UP03123)

Note: Short Blocks Include Items 2b-8

$

$

Not available

2b

Homelite A07314

25CC PISTON & ROD
(Superseded to UP00768A)

$

$

Not available

3b

Homelite 96935

RING - Piston
(Superseded to UP03838)

$

$

Not available

4b

Homelite A07145

25CC CYLINDER KIT
(Superseded to UP07145)

$43.99

$

In Stock, only 1 left!

0

5b

Homelite 04388B

GASKET - Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 08840

GASKET - Heat Dam

$

$

Not available

7

Homelite 69250

KEY - Woodruff

$

$

Not available

8

Homelite 825691

SCREW - Thread Forming (10-24 X 3/4")

$

$

Not available

9

Homelite A00858

CRANKCASE COVER

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 98767A

GASKET - Crankcase Cover

$

$

Not available

11

Homelite 82541

SCREW - Plastite (#10 X 1/2")

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm

$1.49

$

In Stock, Qty 5

0

12

Homelite 82538

SCREW - Taptite (10-24 X 1/2")

Note: Torque Specs. 25-30 In/Lbs, 2.8-3.4 Nm, Red 262 Required Loctite

$1.49

$

Usually ships in 3-7 days

0

13

Homelite A00254A

WIRE GUARD KIT

$

$

Not available

14

Homelite 88049

SCREW - Hex Sems (10-24 X 1/2")

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm

$

$

Not available

15

Homelite 81208

NUT (10-24)

$

$

Not available
