GSTBC (UT-15084) - Homelite String Trimmer Boom & Head II Parts Diagram

String Trimmer

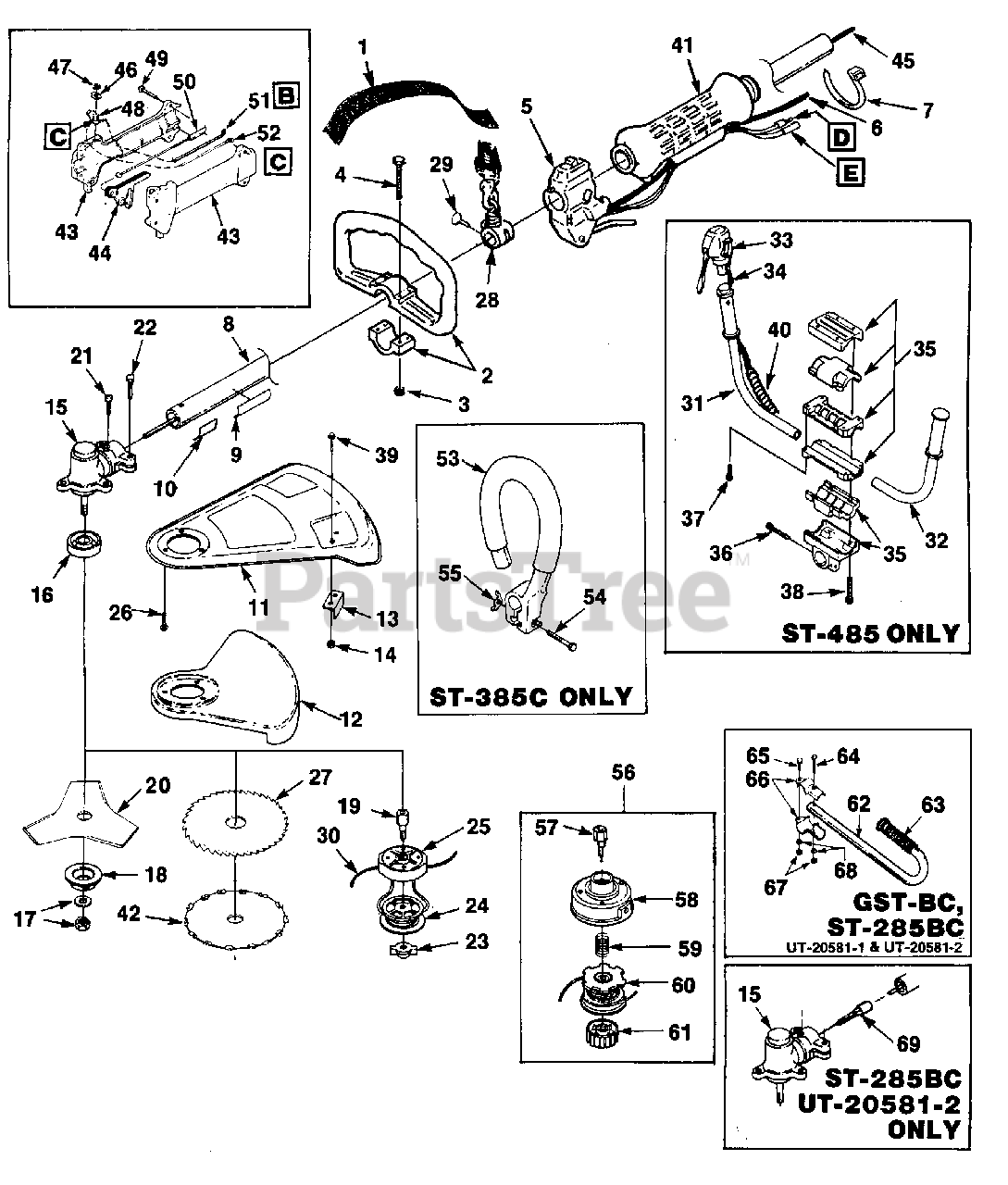

Boom & Head II Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS w/CONNECTOR

$

$

Currently unavailable

2

Homelite A00736

HANDLE (ST-385)

$

$

Not available

3

Homelite 00677

NUT (ST-385)

$

$

Not available

4

Homelite 00676

SCREW (ST-385)

$

$

Not available

5

Homelite A00738

THROTTLE & SWITCH w/Lead (ST-385)
(Superseded to UP06617)

$

$

Not available

6

Homelite A03004

THROTTLE CABLE (ST-385 & ST-385C)

$

$

Not available

7

Homelite 46840

CABLE- Tie

$

$

Not available

8

Homelite A00114

HOUSING- Drive Shaft (ST-385, ST-385C, ST-485)

$

$

Currently unavailable

9

Homelite 989241

DECAL- Starting Instructions

$

$

Currently unavailable

10

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

Homelite A034881

HOUSING- Drive Shaft (GST-BC & ST-285BC UT20581-1)
(Superseded to UP04337)

$52.99

$

Usually ships in 3-7 days

0

Homelite 989241

DECAL- Starting Instructions

$

$

Currently unavailable

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

Homelite A94442

BRACKET- Hanger (See #28)

$10.99

$

Usually ships in 3-7 days

0

Homelite 82260

SCREW- Thumb (See #29)

$

$

Not available

Homelite 98832

SHAFT- Drive (See #45)

$

$

Not available

Homelite A00187

HOUSING- Drive Shaft (ST-285BC, UT-20581-2)

$

$

Currently unavailable

Homelite 989241

DECAL- Starting Instructions

$

$

Currently unavailable

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

Homelite 04167

SHAFT- Flexible (See #45)

$

$

Not available

11

Homelite 988461

DEFLECTOR- Grass

$

$

Currently unavailable

12

Homelite 988472

GUARD- Blade

$18.99

$

Usually ships in 3-7 days

0

13

Homelite 00075

BLADE- Cut-off
(Superseded to 07076)

$

$

Not available

14

Homelite 81208

NUT (10-24)

$

$

Not available

15

Homelite A03887

GEAR HEAD ASSEMBLY

$

$

Currently unavailable

16

Homelite 0043606

WASHER- Flange

$

$

Currently unavailable

17

Homelite 04277

NUT- Hex (L.H.)
(Superseded to 678018001)

$

$

Not available

18

Homelite 04259

WASHER- Flange

$

$

Not available

19

Homelite 00490

CONNECTOR- Drive

$

$

Not available

20

Homelite D98717A

TRI-ARC BLADE
(Superseded to D98717C)

$12.99

$

Usually ships in 3-7 days

0

21

Homelite 88049

SCREW (10-24 x 1/2")

$

$

Not available

22

Homelite 88053

SCREW (10-24 x 1")
(Superseded to 96624)

$

$

Not available

23

Homelite 812721

NUT- (L.H.)

$

$

Currently unavailable

24

Homelite DA02598A

SPOOL & STRING (Dual Line)

$

$

Currently unavailable

Homelite DA98912B

SPOOL & STRING (Dual Line) (GST-BC & ST-275BC)

$

$

Currently unavailable

25

Homelite A00144

HOUSING & EYELET
(Superseded to A00116A)

$

$

Not available

26

Homelite 88049

SCREW (10-24 x 1/2")

$

$

Not available

27

Homelite D98935A

BLADE- Saw (optional)

$

$

Currently unavailable

28

Homelite A94442

BRACKET- Hanger

$10.99

$

Usually ships in 3-7 days

0

29

Homelite 82260

SCREW (10-24 x 1/2")

$

$

Not available

30

Homelite 0395903

LINE- Replacement (.095 Dia.) 1 lb. Box (250 Ft.)
(Superseded to D06514)

$

$

Not available

Homelite DA97952B

LINE- Replacement (.080 Dia.) (100 Ft.) (GST-BC & ST-285BC)
(Superseded to D06509A)

$

$

Not available

31

Homelite A00590

HANDLE BAR (ST-485)

$

$

Currently unavailable

32

Homelite A00591

HANDLE BAR (ST-485)

$

$

Currently unavailable

33

Homelite A00593

THROTTLE & SWITCH w/lead (ST-485)

$

$

Not available

34

Homelite A03005

THROTTLE CABLE (ST-485)
(Superseded to 0254203)

$2.99

$

Usually ships in 3-7 days

0

35

Homelite A00592

HANDLE BRACKET (ST-485)

$

$

Currently unavailable

36

Homelite 00605

SCREW

$

$

Not available

37

Homelite 00606

SCREW
(Superseded to 03942)

$

$

Not available

38

Homelite 00607

SCREW
(Superseded to 03944)

$

$

Not available

39

Homelite 80869

SCREW (10-24 x 3/8")

$

$

Not available

40

Homelite 00684

SLEEVING- Plastic (ST-485)

$

$

Not available

41

Homelite 03234

GRIP- Handle

$

$

Currently unavailable

42

Homelite DA00714A

BLADE- Saw 7" Machete (optional)

$

$

Currently unavailable

43

Homelite A00879

HANDLE GRIP ASSEMBLY

$

$

Not available

44

Homelite 98772A

TRIGGER
(Superseded to UP04558)

$

$

Not available

45

Homelite 98832

DRIVE SHAFT (Solid)

$

$

Not available

Homelite 04167

SHAFT- Flexible (ST-285BC, UT-20581-2)

$

$

Not available

46

Homelite 95231

PLATE- Indicating
(Superseded to UP04266)

$

$

Not available

47

Homelite 72084A1

NUT-
(Superseded to UP04146)

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 93653

SWITCH- Toggle
(Superseded to UP04261)

$

$

Not available

49

Homelite 82368

SCREW- Plastite (#8 x 3/4")
(Superseded to PS00055)

$

$

Not available

50

Homelite A03006

CABLE- Throttle

$

$

Not available

51

Homelite A98918

LEAD- Electrical

$

$

Not available

52

Homelite A98919

LEAD- Ground

$

$

Currently unavailable

53

Homelite A98525

HANDLE & PAD (ST-385C)

$

$

Currently unavailable

54

Homelite 80295

SCREW- Hex hd. (ST-385C)

$2.99

$

Usually ships in 3-7 days

0

55

Homelite 93992

NUT- Wing (ST-385)

$

$

Not available

56

Homelite A03174

CONVERSION KIT

$

$

Currently unavailable

57

Homelite 9855141

CONNECTOR- Drive (ST-385BC & ST-485)

$

$

Not available

58

Homelite A98231A

HOUSING & EYELET (ST-385C & ST-485)
(Superseded to 099068001005)

$

$

Not available

59

Homelite 98848

SPRING- Compression (ST-385C & ST-485)
(Superseded to UP06526)

$1.49

$

In Stock, only 2 left!

0

60

Homelite DA02598A

SPOOL & STRING (ST-385C & ST-485)

$

$

Currently unavailable

61

Homelite A97910A

RETAINER (ST-385C & ST-485)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

62

Homelite A03552

HANDLE-"J" (GST-BC & ST-285BC)
(Superseded to UP06534)

$

$

Not available

63

Homelite 94474B

GRIP (GST-BC & ST-285BC)

$

$

Not available

64

Homelite 88071

SCREW(1/4-20 x 1 1/2") (GST-BC & ST-285BC)

$

$

Not available

65

Homelite 88078

SCREW (1/4-20 x 1") (GST-BC & ST-285BC)

$

$

Not available

66

Homelite 00422

CLAMP- Handle bar (GST-BC & ST-285BC)
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

67

Homelite 81267

NUT (1/4-20) (GST-BC & ST-285BC)

$

$

Not available

68

Homelite 83061

WASHER (1/4") (GST-BC & ST-285BC)

$

$

Not available

69

Homelite 04256

ADAPTOR (ST-285BC, UT-20581-2)
(Superseded to PS05243)

$

$

Not available
