GSV190 LA N1L (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) FLYWHEEL (1) Parts Diagram

Engine, Made in USA

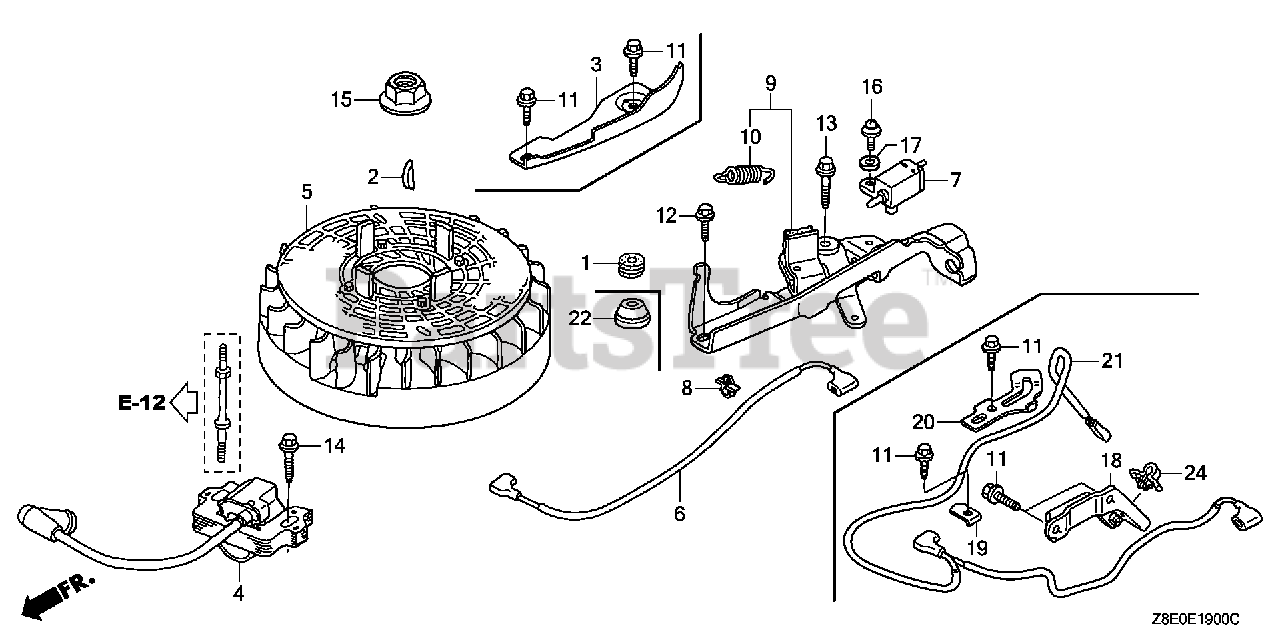

FLYWHEEL (1) Parts Diagram

  • Title

2

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 4510273.

$5.99

$

Usually ships in 3-6 days

0

2

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

Note: Use up to Engine SN 4510272.

$4.49

$

In Stock, Qty 12

0

3

Honda 19612-Z0L-000

PLATE, SIDE

$15.99

$

In Stock, only 1 left!

0

4

Honda 30500-ZL8-014

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (USE FOR F/W OF TEC) (TEC) Use up to Engine SN 3747197.

Note: Use from Engine SN 1045910.

$69.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z8B-901

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (PHELON)
(Superseded to 30500-Z8B-903)

Note: Use up to Engine SN 1045909.

$28.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z8B-902

COIL ASSY., IGN

Note: Use from Engine SN 1045910.

$23.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z8B-903

COIL ASSY., IGNITION (PHELON)

Note: Use up to Engine SN 1045909.

$28.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z8B-903

COIL ASSY., IGNITION (PHELON)

Note: Use from Engine SN 1045910.

$28.99

$

Usually ships in 3-6 days

0

5

Honda 31105-Z0Y-010

FLYWHEEL ASSY. (PHELON) (USE FOR IGN. COIL OF PHELON)

Note: Use up to Engine SN 1045909.

$27.99

$

Usually ships in 3-6 days

0

5

Honda 31105-Z0Y-800

FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC)

Note: Use from Engine SN 1045910.

$21.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 13

0

14

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

Note: Use from Engine SN 1054862.

$1.99

$

In Stock, only 4 left!

0

14

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

Note: Use up to Engine SN 1054861.

$2.99

$

In Stock, only 1 left!

0

15

Honda 90213-S3Y-000

NUT, FLANGE (14MM)

$5.99

$

Usually ships in 3-6 days

0
