GSV190 LA N1L (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) RECOIL STARTER Parts Diagram

Engine, Made in USA

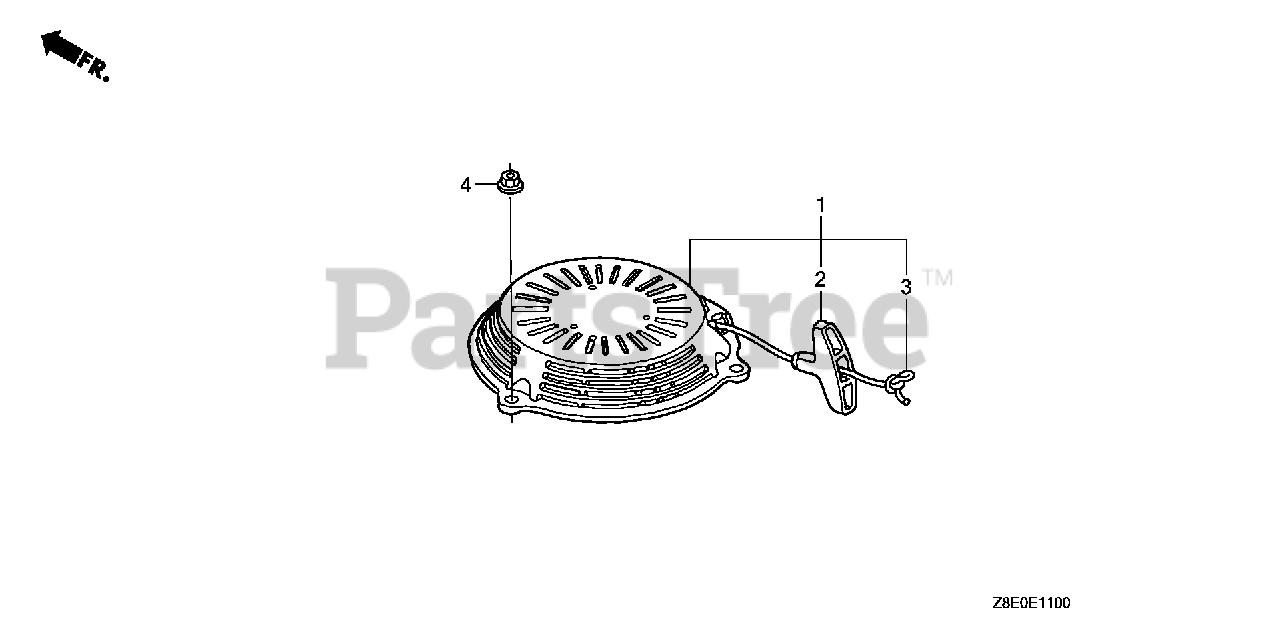

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z0Y-013ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-Z0Y-023ZA)

Note: Use up to Engine SN 4503430.

$18.99

$

In Stock, Qty 9

0

1

Honda 28400-Z8B-003ZD

STARTER ASSY., RECOIL *R280* (LONG ROPE) (POWER RED)

Note: Use from Engine SN 4503431 to 4506437.

$16.99

$

In Stock, Qty 14

0

1

Honda 28400-Z8B-901ZB

STARTER ASSY., RECOIL *R280* (LONG ROPE) (POWER RED)
(Superseded to 28400-Z8B-902ZB)

Note: Use from Engine SN 4506438.

$12.99

$

In Stock, Qty 20+

0

2

Honda 28461-ZL8-003

KNOB, RECOIL STARTER (Honda Code 5580634).

$3.99

$

In Stock, Qty 13

0

3

Honda 28462-ZL8-V71

ROPE, RECOIL STARTER (LONG TYPE)

Note: Use from Engine SN 4503431.

$2.49

$

In Stock, only 2 left!

0

3

Honda 28462-ZL8-631

ROPE, RECOIL STARTER (Honda Code 5580642). (#3.5X90")

Note: Use up to Engine SN 4503430.

$3.99

$

In Stock, Qty 10

0

4

Honda 90201-ZM0-000

NUT, FLANGE (6MM) (Honda Code 6478812).

$2.99

$

In Stock, Qty 10

0
