GT 1054 (14W794AK009) - Cub Cadet 54" Garden Tractor (2014) Engine Accessories Parts Diagram

54" Garden Tractor

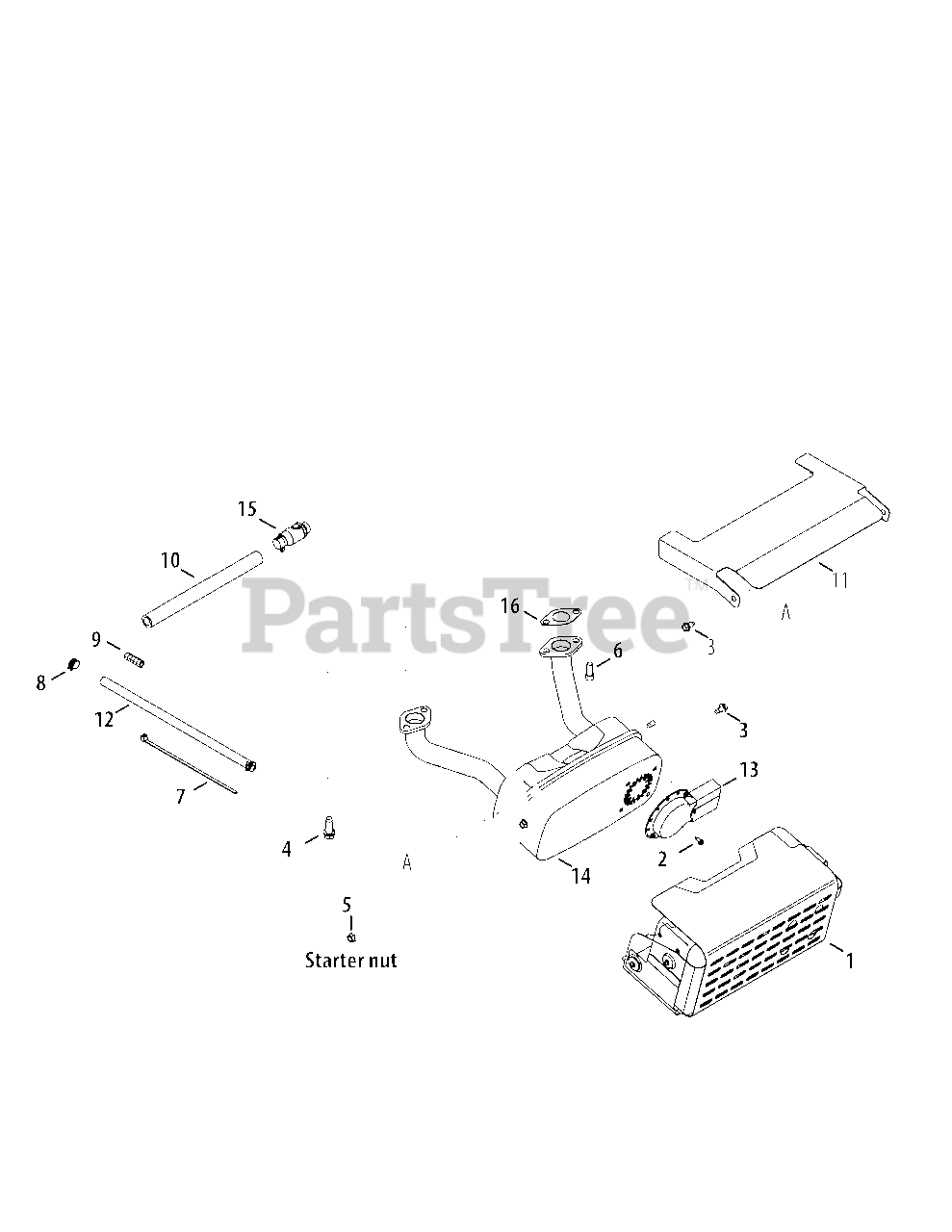

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 683-04549-0637

Shield Ass’y, Muffler
(Superseded to 683-05460A-0637)

$74.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-05070A

Tan Torx Screw 1/4

Note: (Not Shown)

$6.49

$

In Stock, Qty 12

0

1

Cub Cadet 747-06404

Muffler Shield Rod
(Superseded to 747-06404A-0637)

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0227

Screw, Ab, #8-18, 0.500,

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04683A

Screw, Self-tapping, 3/8-16, 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 8

0

5

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1314A

Screw, Sokt Head, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

8

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 751-12089-28

Hose, Vent

$8.49

$

In Stock, only 1 left!

0

10

Cub Cadet 751-3141-14

Hose, Extension, Oil Drain

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 783-06378A

Heat Shield

$28.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751-10349

Hose, Fuel, Low Permeation, 1/4

$

$

Not available

13

Cub Cadet 751-11053A

Deflector, Muffler, Long
(Superseded to 751-11053B)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 751-10528A

Muffler, Kohler
(Superseded to 951-10528B)

$149.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-10517A

Drain, Oil

$22.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-24-041-49-S

Gasket, Exhaust

$

$

Not available
