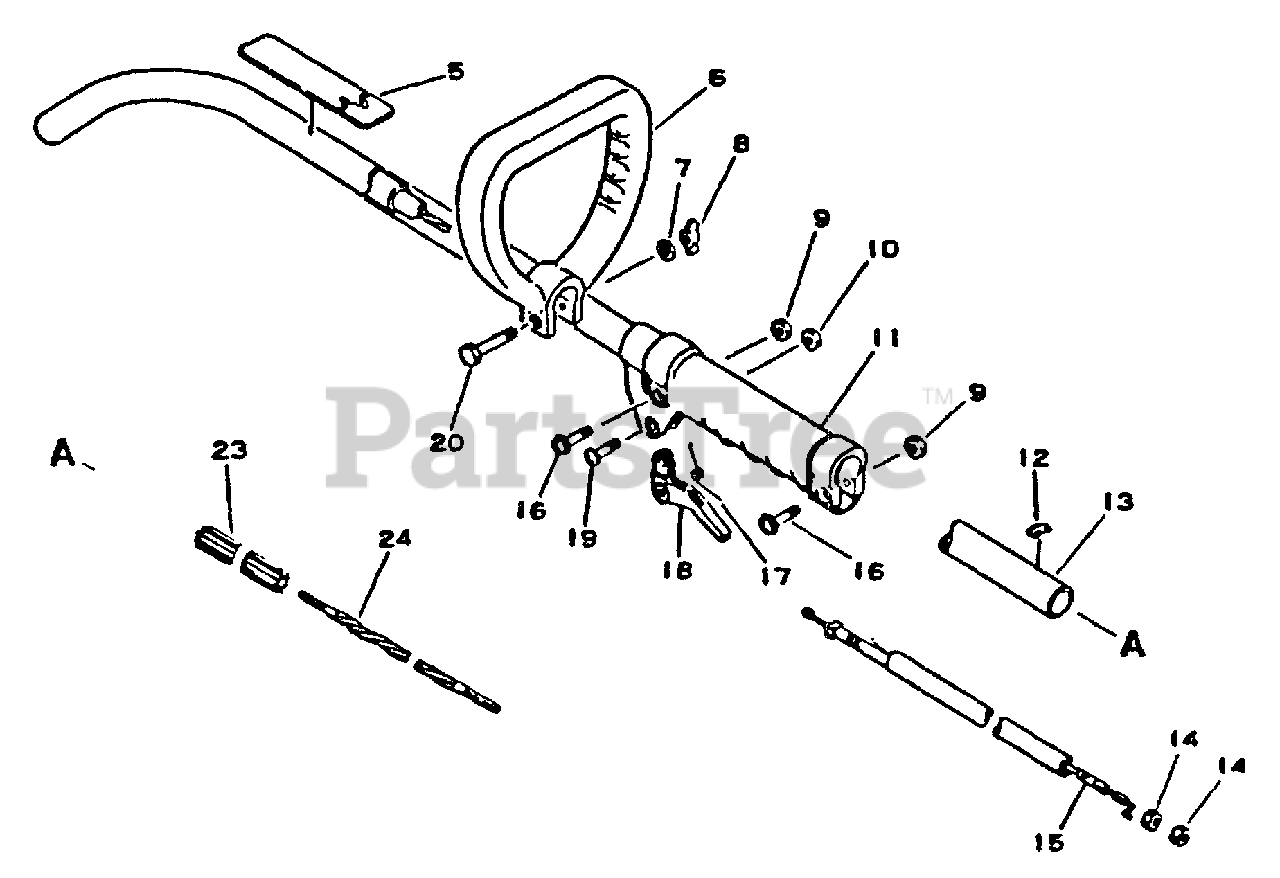

GT-1100 - Echo String Trimmer (SN: 001001 - 077000) Driveshaft, Handles, Throttle Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle Parts Diagram

  • Title

5

Echo 89016044330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

C5

Echo 89031744330

LABEL - CAUTION
(Superseded to 89031744430)

$

$

Not available

6

Echo 35161009630

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

7

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 90052500006

WINGNUT - 6

$1.99

$

In Stock, Qty 9

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

11

Echo 35121344330

GRIP, HANDLE

$16.99

$

In Stock, only 2 left!

0

12

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 12

0

13

Echo 61021044330

MAIN PIPE ASSY
(Superseded to 61060944330)

$57.99

$

In Stock, Qty 7

0

14

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

15

Echo 17800144330

CABLE, THROTTLE

Note: (Prior To S/N 051001)

$22.99

$

Usually ships in 2-4 days

0

15

Echo 17800145130

CABLE, THROTTLE
(Superseded to 17800144430)

Note: (Eff. S/N 051001 & Up)

$12.99

$

In Stock, only 2 left!

0

16

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

17

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, only 3 left!

0

18

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, Qty 5

0

19

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 13

0

20

Echo 90010006040

BOLT - 6X40

$0.99

$

Usually ships in 2-4 days

0

23

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

$26.99

$

In Stock, only 3 left!

0

24

Echo 61001344330

DRIVESHAFT - FLEXIBLE
(Superseded to 61001309630)

$16.99

$

In Stock, only 2 left!

0
