GT-1100 - Echo String Trimmer (SN: 077001 - 098000) Driveshaft, Handles, Throttle Parts Diagram

String Trimmer

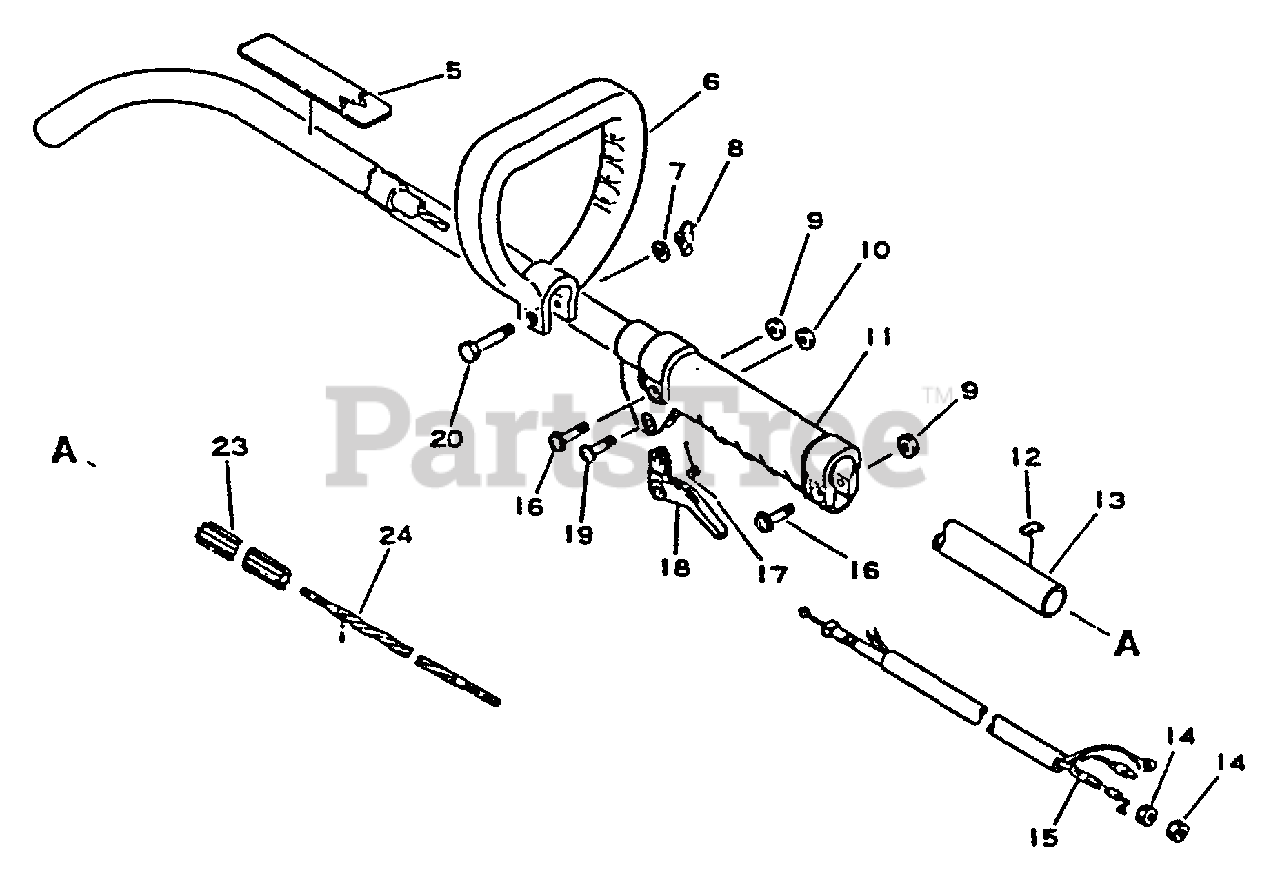

Driveshaft, Handles, Throttle Parts Diagram

  • Title

6

Echo 35161009630

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

7

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 4 left!

0

9

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

11

Echo 35121344330

GRIP

$16.99

$

In Stock, only 2 left!

0

13

Echo 61021044330

MAIN PIPE ASSY
(Superseded to 61060944330)

Note: L. 48-1/2in. 1231.2mm D. 7/8in. 22mm

$57.99

$

In Stock, Qty 7

0

14

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

15

Echo 17800145130

CABLE, THROTTLE
(Superseded to 17800144430)

$12.99

$

In Stock, only 2 left!

0

16

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

17

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

18

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.99

$

In Stock, Qty 5

0

19

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

20

Echo 90010006040

BOLT - 6×40

$0.99

$

Usually ships in 2-4 days

0

24

Echo 61001344330

DRIVESHAFT - FLEXIBLE
(Superseded to 61001309630)

Note: L. 48in. 1219.2mm D. 1/4in. 6mm

$16.99

$

In Stock, only 2 left!

0

13

Echo 61060944330

MAIN PIPE ASSY

Note: 48-1/2in. 1231.9mm D. 7/8in. 22mm

$57.99

$

In Stock, Qty 7

0

5

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

23

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

Note: L. 44-1/2in. 1130.3mm D. 6/8in. 18mm

$26.99

$

In Stock, only 3 left!

0

13

Echo 61060944430

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Same as U.S. Canadian Model

$

$

Not available

5

Echo 89031744330

LABEL - CAUTION
(Superseded to 89031744430)

Note: CANADA MODELS

$

$

Not available

12

Echo 890152-04930

LABEL - ALIGNMENT

Note: CANADA MODELS

$0.99

$

In Stock, Qty 11

0

23

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

Note: Same as U.S. Canadian Model

$26.99

$

In Stock, only 3 left!

0
