GT-1100 - Echo String Trimmer (SN: 077001 - 098000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

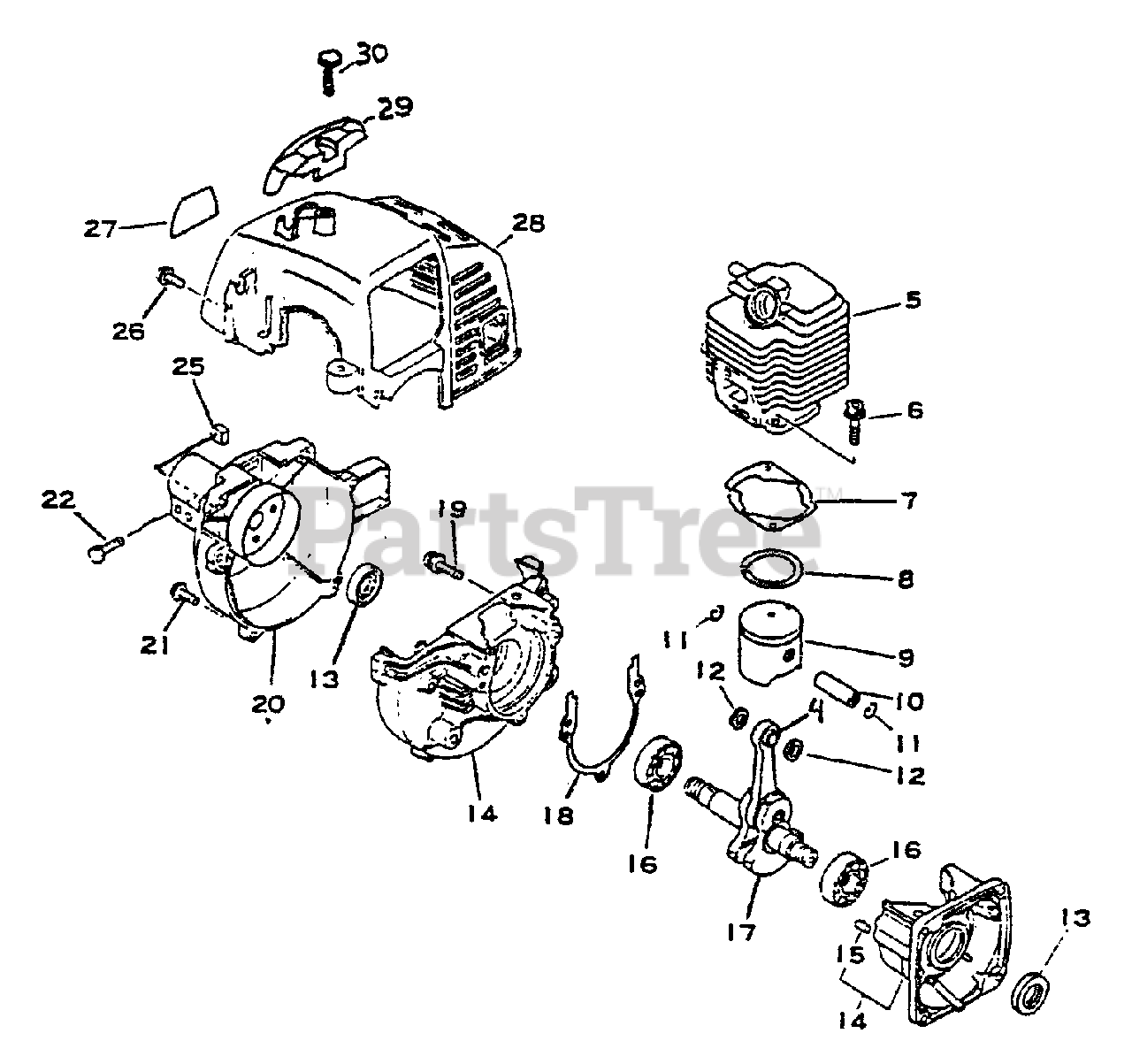

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 10101145230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

7

------------------

GASKET, CYLINDER

Note: USE GASKET KIT P/N 88900044330

$

$

Not available

8

Echo 10001144330

RING, PISTON
(Superseded to P021002930)

$

$

Not available

9

Echo 10001044430

PISTON
(Superseded to Discontinued)

$

$

Not available

10

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

13

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

16

Echo 90081030201

BEARING, BALL - 6201

$

$

Currently unavailable

17

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

Note: (INC. 10001211520)

$283.99

$

Usually ships in 2-4 days

0

18

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900044330

$

$

Not available

19

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

20

Echo 10150344330

FAN CASE ASSY

$66.99

$

Usually ships in 2-4 days

0

21

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 6

0

22

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

25

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

26

Echo 90024604012

SCREW - 4X12

$1.49

$

In Stock, Qty 16

0

27

Echo 89011244330

LABEL - ECHO
(Superseded to 89011248730)

$

$

Not available

28

Echo 10151444430

COVER, ENGINE
(Superseded to 10151444530)

$24.99

$

In Stock, only 2 left!

0

29

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

30

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

4

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0
