GT-1100 - Echo String Trimmer (SN: 098001 - 126000) Carburetor Parts Diagram

String Trimmer

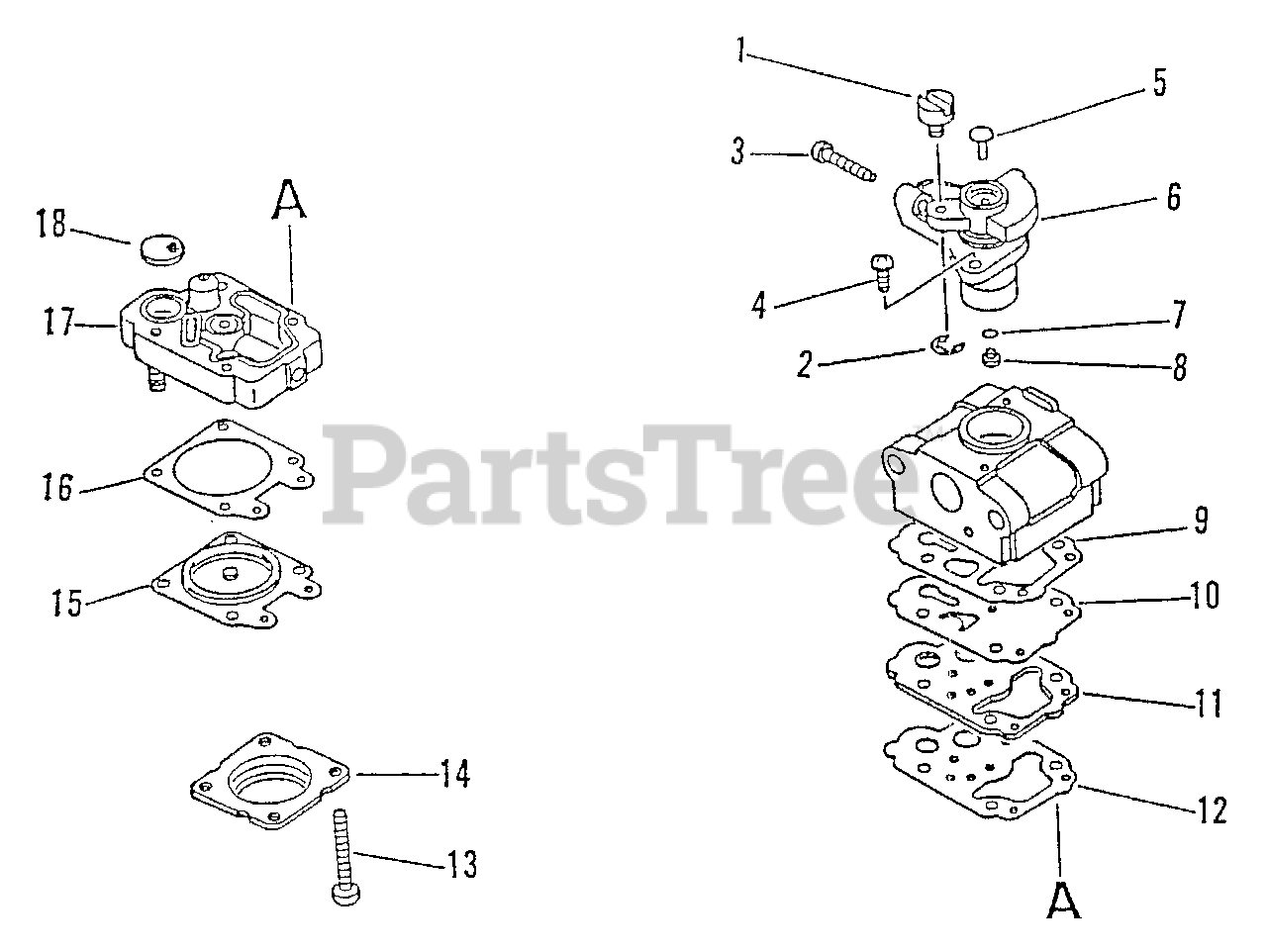

Carburetor Parts Diagram

  • Title

Echo 12300045130

CARBURETOR WYL-6
(Superseded to Discontinued)

$

$

Not available

1

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

3

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

4

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

6

Echo 12311645130

THROTTLE VALVE ASSY

$19.99

$

Usually ships in 2-4 days

0

7

------------------

O-RING

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit P/N, 12310144430

$

$

Not available

8

------------------

JET

Note: Included in Carburetor Repair Kit, P/N 12310044430

$

$

Not available

9

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit P/N, 12310144430

$

$

Not available

10

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

11

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

12

------------------

GASKET, PLATE

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

13

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12314203930

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

15

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

16

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

17

------------------

BASE, PURGE

Note: Included in Carburetor Repair Kit, P/N 12310044430

$

$

Not available

18

------------------

STRAINER

Note: Included in Carburetor Repair Kit, P/N 12310044430

$

$

Not available

Echo 12310044430

REPAIR KIT

Note: Includes ITEMS 7-10,12, 15-18

$27.99

$

Usually ships in 2-4 days

0

Echo 12310144430

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 7,9,10,12,15,& 16

$11.99

$

Usually ships in 2-4 days

0
