GT-1100 - Echo String Trimmer (SN: 098001 - 126000) Gear Case, Shield, Tool, Accessories Parts Diagram

String Trimmer

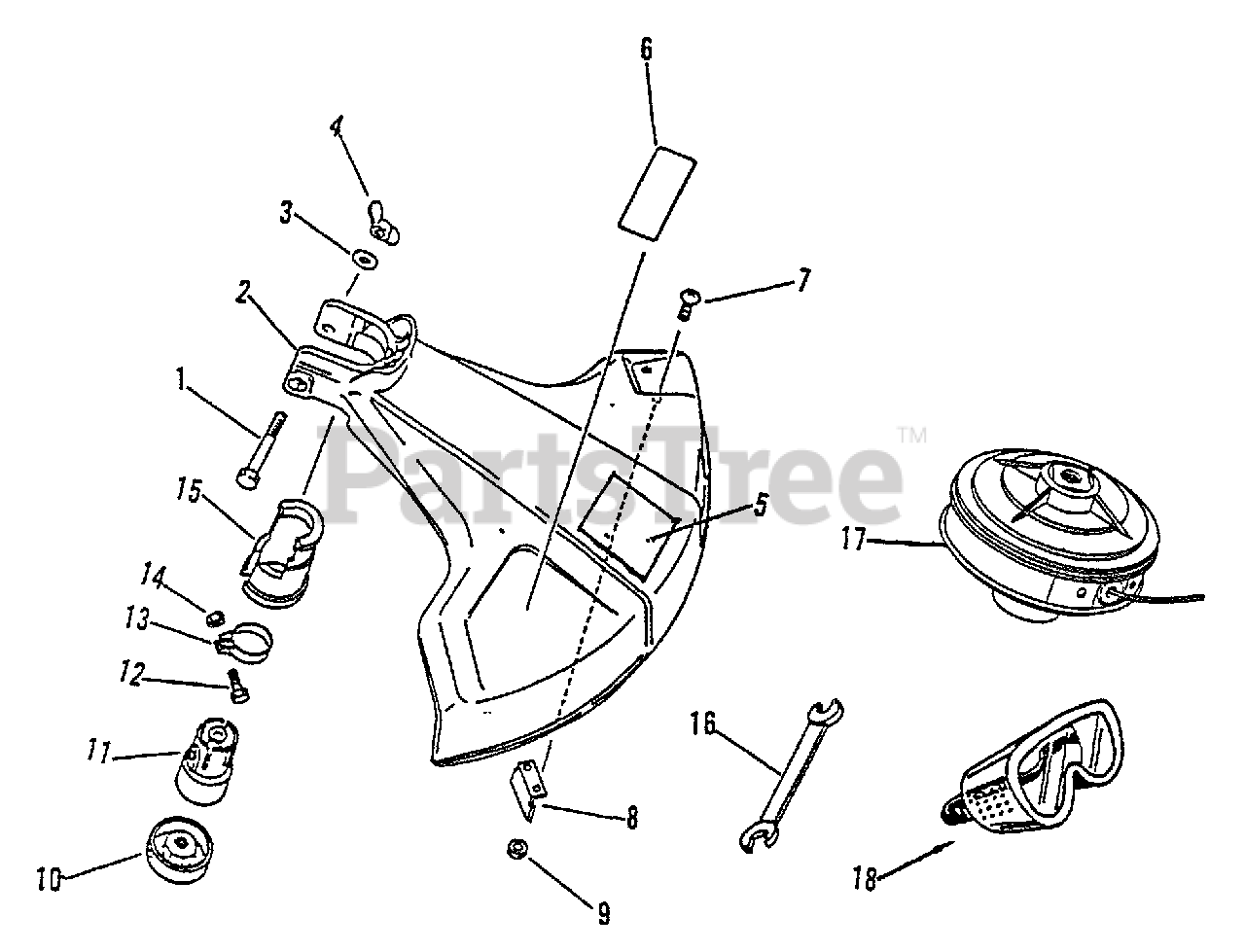

Gear Case, Shield, Tool, Accessories Parts Diagram

  • Title

Echo 69900040631

SHIELD ASSY

Note: Includes Items 1-5, 7-9

$

$

Currently unavailable

1

Echo 90010006050

BOLT - 6×50

$0.99

$

In Stock, Qty 5

0

2

SHIELD

Note: Order Complete Assembly

$

$

Not available

3

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 4 left!

0

5

Echo 89016844330

LABEL, CAUTION

$3.99

$

Usually ships in 2-4 days

0

6

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

7

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

8

Echo 69901623231

KNIFE, TRIMMER LINE
(Superseded to P021006080)

$1.99

$

In Stock, only 3 left!

0

9

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 61030544330

PLATE, ADAPTER - UPPER

$26.99

$

Usually ships in 2-4 days

0

11

Echo 61040044330

GEAR CASE ASSY
(Superseded to 61040452430)

$70.99

$

In Stock, only 2 left!

0

12

Echo 90015005010

BOLT

$1.49

$

Usually ships in 2-4 days

0

13

Echo 61044844330

BAND

$8.49

$

Usually ships in 2-4 days

0

14

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

15

Echo 61044944330

BRACKET, BEARING CASE
(Superseded to Discontinued)

$

$

Not available

16

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

17

Echo 21560040

GT ECHOMATIC® HEAD
(Superseded to 99944200908)

$44.99

$

In Stock, Qty 20+

0

18

Echo 102912000

GOGGLES

$

$

Currently unavailable
