GT-1100 - Echo String Trimmer (SN: 098001 - 126000) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

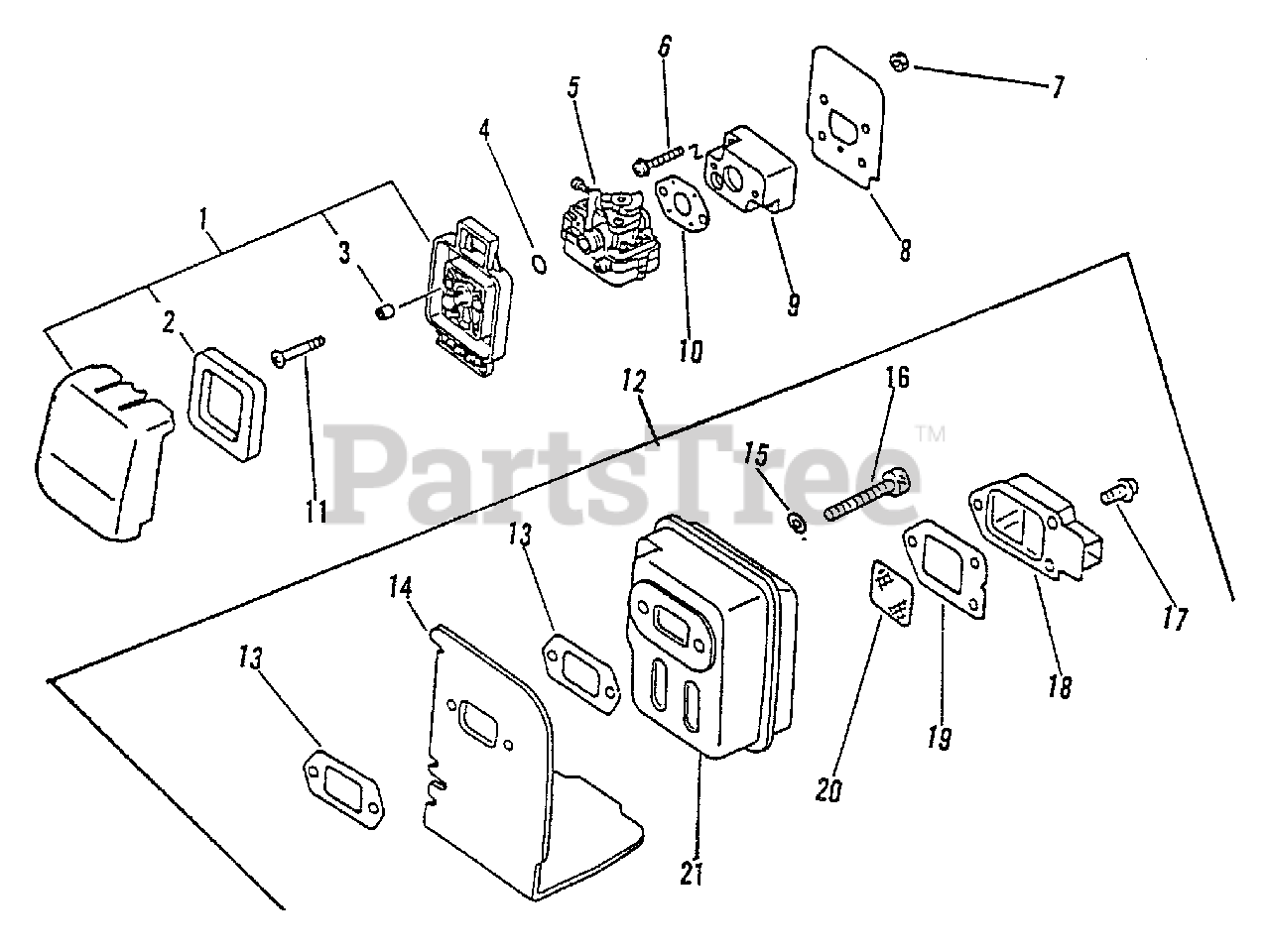

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 13030045130

AIR CLEANER ASSY

$34.99

$

Usually ships in 2-4 days

0

2

Echo 13031044330

FILTER, AIR

$5.49

$

In Stock, Qty 20+

0

3

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

4

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 17

0

5

Echo 12300045130

CARBURETOR WYL-6
(Superseded to Discontinued)

Note: See Carburetor Diagram For Details

$

$

Not available

6

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 6

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

9

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, Qty 11

0

10

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

$2.49

$

In Stock, Qty 10

0

11

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

12

Echo 14580047631

MUFFLER ASSY
(Superseded to 14580042031)

Note: Includes ITEMS 12-16

$51.99

$

In Stock, Qty 6

0

13

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 8

0

14

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.49

$

In Stock, Qty 8

0

15

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

17

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

18

Echo 14580942030

GUIDE, EXHAUST - OUTER

$8.49

$

In Stock, only 2 left!

0

19

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 12

0

20

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 12

0

21

Echo 14581044330

MUFFLER

$40.99

$

Usually ships in 2-4 days

0
