GT-1100 - Echo String Trimmer (SN: 126001 - 174348) Carburetor Parts Diagram

String Trimmer

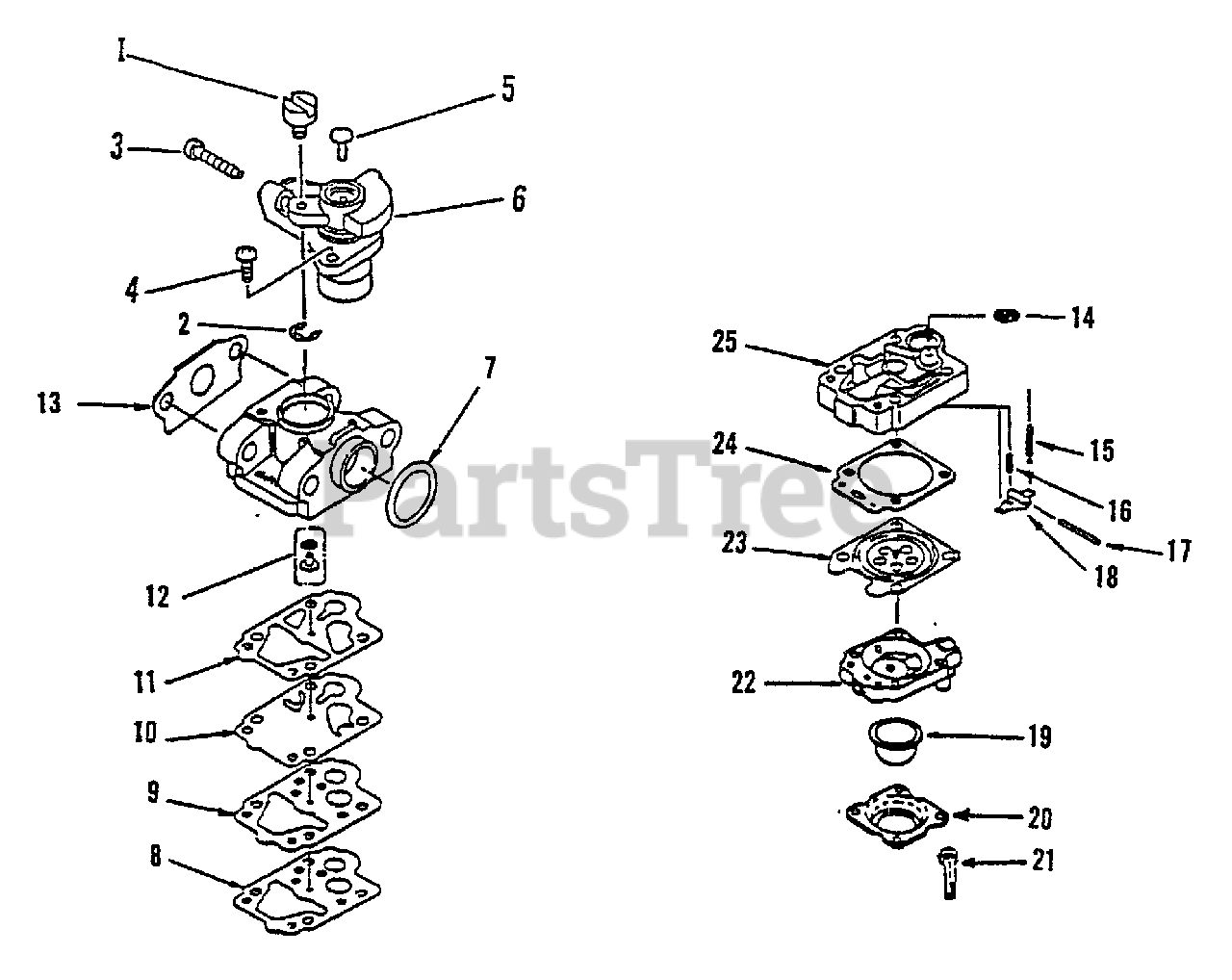

Carburetor Parts Diagram

  • Title

Echo 12300048730

CARBURETOR WYL-10
(Superseded to Discontinued)

$

$

Not available

1

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

3

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

4

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

6

Echo 12311645130

THROTTLE VALVE ASSY

$19.99

$

Usually ships in 2-4 days

0

7

------------------

RING, MOUNTING

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

8

------------------

GASKET, PLATE

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

9

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

10

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

11

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

12

Echo 12310748730

MAIN JET KIT

$3.99

$

Usually ships in 2-4 days

0

13

------------------

GASKET, FLANGE

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

14

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310048730.

$

$

Not available

15

------------------

VALVE, INLET NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310048730.

$

$

Not available

16

Echo 12312211130

SPRING, METERING LEVER

$1.49

$

In Stock, only 1 left!

0

17

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

18

------------------

LEVER, METERING

Note: Included in Carburetor Repair Kit P/N 12310048730.

$

$

Not available

19

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

20

Echo 12314202960

RETAINER, PURGE BULB

$3.99

$

In Stock, only 4 left!

0

21

Echo 12311040630

SCREW

$0.99

$

In Stock, Qty 6

0

22

Echo 12318046130

BASE, PURGE

$11.99

$

In Stock, only 3 left!

0

23

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

24

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

25

Echo 12317911810

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

Echo 12310048730

REPAIR KIT

$26.99

$

Usually ships in 2-4 days

0

Echo 12310148730

DIAPHRAGM/GASKET KIT

$11.99

$

Usually ships in 2-4 days

0
