GT-1100 - Echo String Trimmer (SN: 126001 - 174348) Carburetor Parts Diagram

String Trimmer

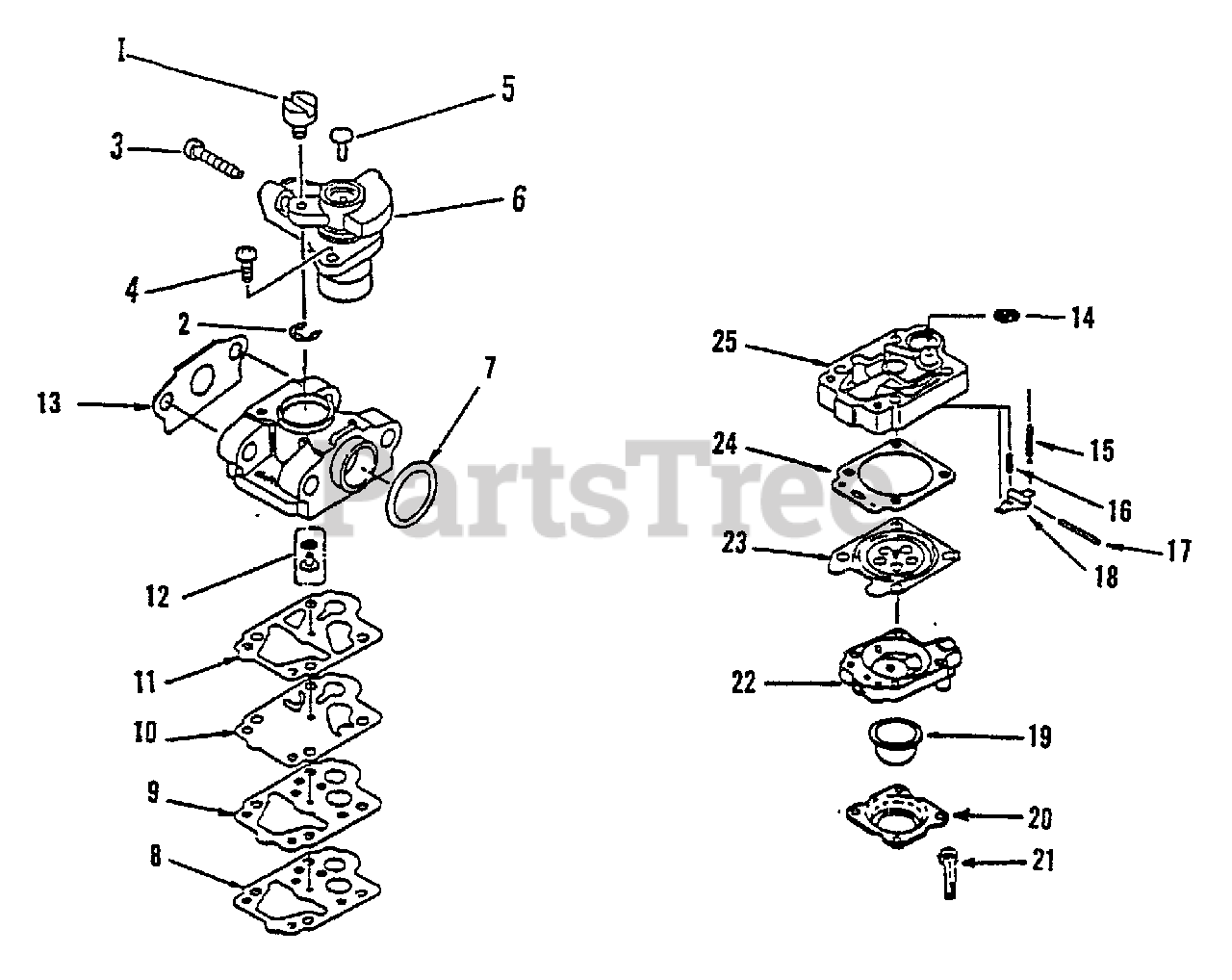

Carburetor Parts Diagram

  • Title

Echo 12300048730

CARBURETOR - WLY-10
(Superseded to Discontinued)

$

$

Not available

1

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

2

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

3

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

4

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12314644330

PLUG

$0.99

$

Usually ships in 2-4 days

0

6

Echo 12311645130

THROTTLE VALVE ASSY

$22.99

$

Usually ships in 2-4 days

0

------------------

RING, MOUNTING

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

8

GASKET, PLATE

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

9

Echo 12316040630

COVER, PUMP

$4.99

$

Usually ships in 2-4 days

0

------------------

DIAPHRAGM, PUMP

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

12

Echo 12310748730

KIT, MAIN JET

$4.99

$

Usually ships in 2-4 days

0

------------------

GASKET

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

14

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310048730.

$

$

Not available

15

VALVE, INLET NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310048730.

$

$

Not available

16

Echo 12312211130

SPRING

$1.49

$

In Stock, only 1 left!

0

17

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

18

LEVER, METERING

Note: Included in Carburetor Repair Kit P/N 12310048730.

$

$

Not available

19

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

20

Echo 12314202960

RETAINER, PURGE BULB

$5.49

$

In Stock, only 2 left!

0

21

Echo 12311040630

SCREW

$0.99

$

Usually ships in 2-4 days

0

22

Echo 12318046130

BODY ASSY, PURGE

$14.99

$

In Stock, only 2 left!

0

23

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

24

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310048730 And Gasket/Diaphragm Kit P/N 12310148730.

$

$

Not available

25

Echo 12317911810

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

Echo 12310048730

REPAIR KIT

$32.99

$

In Stock, only 1 left!

0

Echo 12310148730

DIAPHRAGM/GASKET KIT

$13.99

$

Usually ships in 2-4 days

0
