GT-1100 - Echo String Trimmer (SN: 252600 - 999999) Starter, Ignition, Stop Switch, Clutch Parts Diagram

String Trimmer

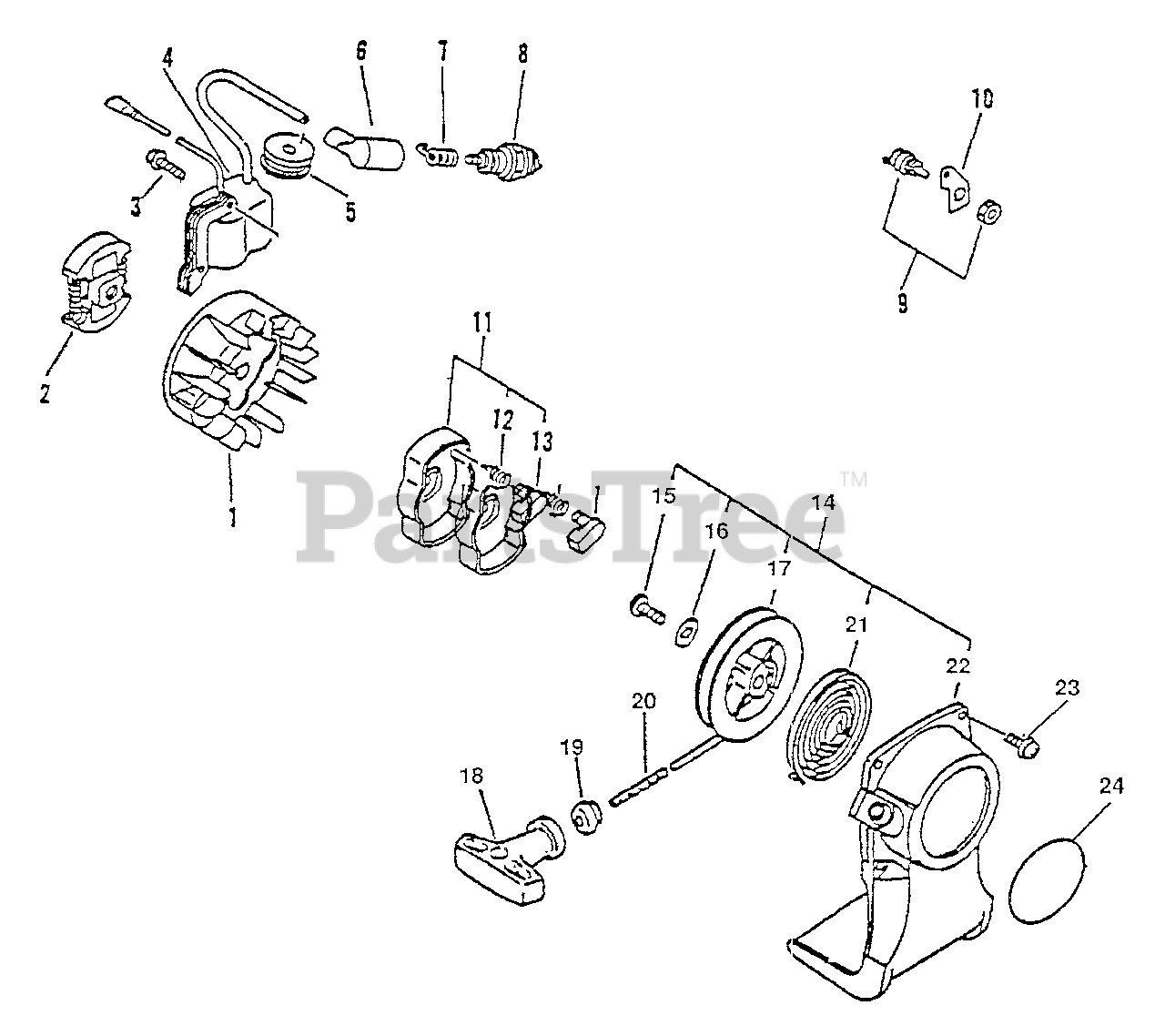

Starter, Ignition, Stop Switch, Clutch Parts Diagram

  • Title

1

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

2

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 1 left!

0

3

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

4

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

5

Echo 150112-44330

GROMMET

$9.49

$

In Stock, Qty 8

0

6

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

7

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

8

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

9

Echo 16340003460

SWITCH, ON-OFF

$9.99

$

In Stock, Qty 10

0

10

Echo 16381044330

BRACKET, SWITCH

$3.49

$

Usually ships in 2-4 days

0

11

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 12-13

$11.99

$

In Stock, Qty 9

0

12

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

13

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

14

Echo 17720044332

STARTER ASSY
(Superseded to 17720044333)

Note: Includes ITEMS 15-21

$53.99

$

In Stock, only 3 left!

0

15

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

16

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 7

0

18

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

19

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

20

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

21

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

22

Echo 17723244332

CASE, STARTER
(Superseded to 17723244333)

$48.99

$

In Stock, only 1 left!

0

23

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

24

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0
