GT-1100 - Echo String Trimmer (SN: 252600 - 999999) Starter, Ignition, Stop Switch, Clutch Parts Diagram

String Trimmer

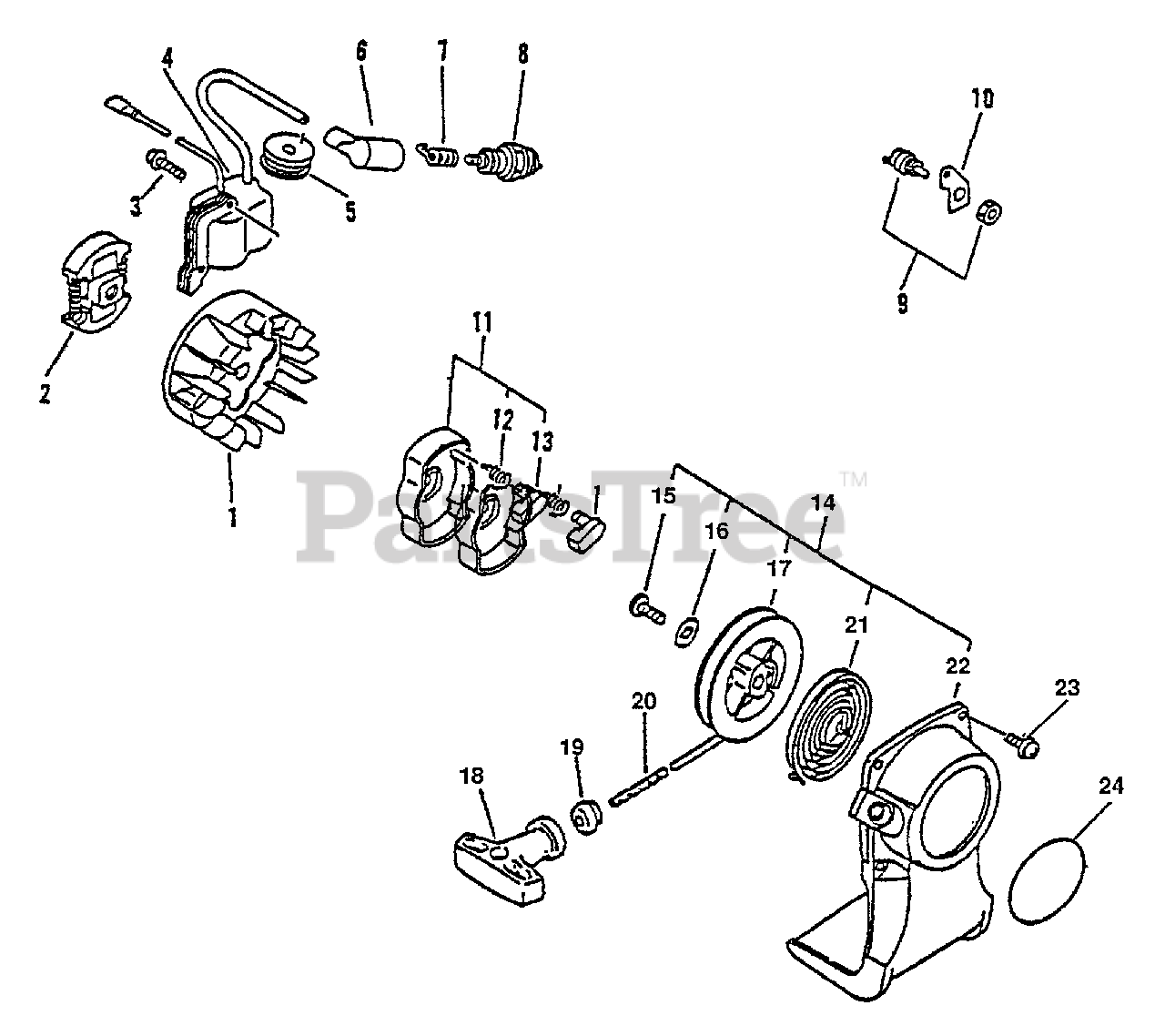

Starter, Ignition, Stop Switch, Clutch Parts Diagram

  • Title

1

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

2

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 2 left!

0

3

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

5

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

6

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 7

0

7

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

8

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

9

Echo 16340003460

IGNITION SWITCH ASSY

$9.99

$

In Stock, Qty 13

0

10

Echo 16381044330

BRACKET, SWITCH

$3.49

$

Usually ships in 2-4 days

0

11

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 12-13

$19.99

$

In Stock, only 3 left!

0

12

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 14

0

13

Echo 17721844330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

14

Echo 17720044332

STARTER ASSY
(Superseded to 17720044333)

Note: Includes ITEMS 15-21

$53.99

$

In Stock, only 3 left!

0

15

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 13

0

16

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 8

0

18

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 7

0

19

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

20

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

21

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, Qty 5

0

22

Echo 17723244332

CASE, STARTER - BLUE
(Superseded to 17723244333)

$48.99

$

In Stock, only 1 left!

0

23

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 7

0

24

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0
