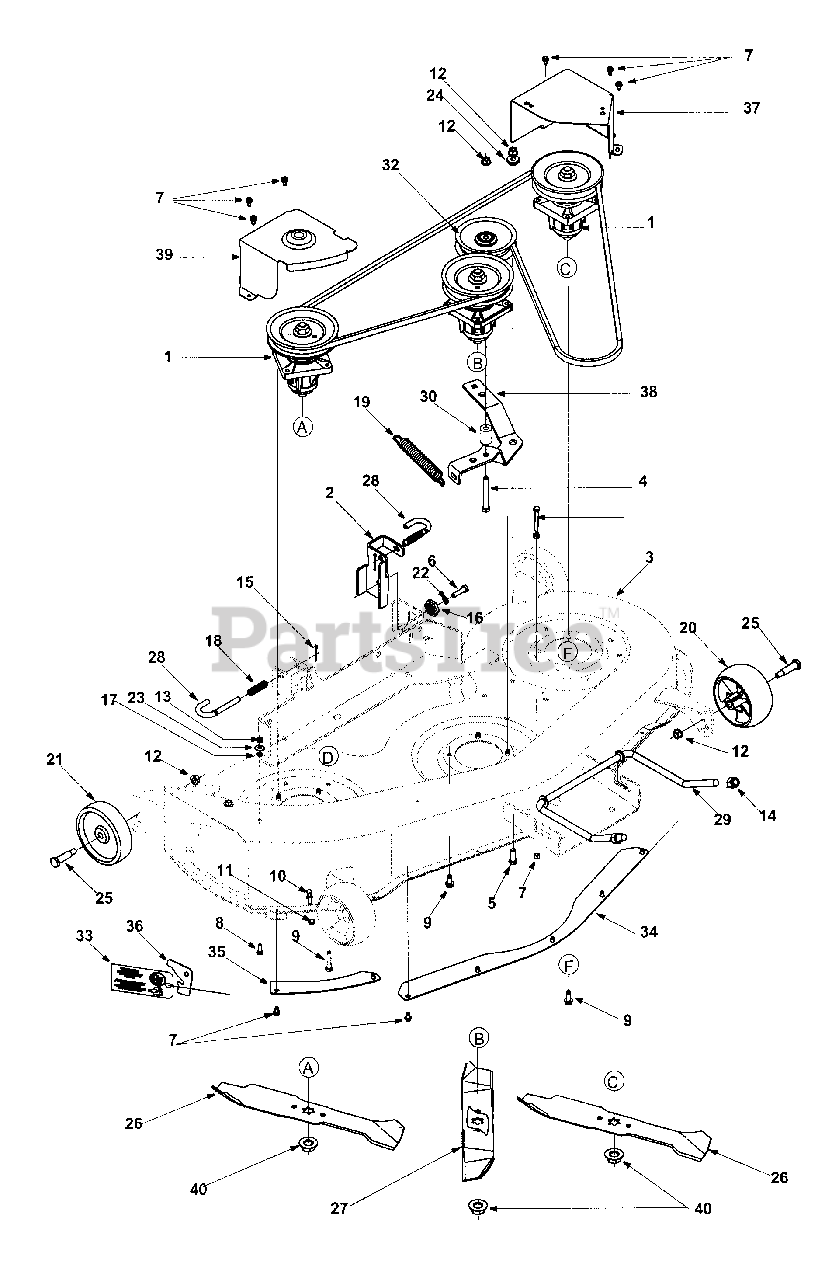

GT 1222 (14AB13CH710) - Cub Cadet 46" Garden Tractor Cutting Deck Assembly Parts Diagram

46" Garden Tractor

Cutting Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 618-04166

Spindle Assembly: Single
(Superseded to 918-04166)

$296.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04224

HHC Screw 3/4-16 x 7.16

Note: Not Shown

$37.99

$

In Stock, Qty 7

0

1

Cub Cadet 712-3078

Flange Lock Nut 3/4-16 GR8

Note: Not Shown

$10.99

$

In Stock, Qty 20+

0

1

Cub Cadet 921-3018A

Oil Seal 1.25 x 1.874

Note: Not Shown

$8.99

$

In Stock, Qty 20+

0

1

Cub Cadet 736-0315

Flat Washer .760 x 1.50 x .120

Note: Not Shown

$7.49

$

In Stock, only 2 left!

0

1

Cub Cadet 937-3000

Grease Fitting

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

1

Cub Cadet 941-04089

Cone Bearing .750"
(Superseded to 941-04298)

Note: Not Shown

$17.99

$

In Stock, Qty 20+

0

1

Cub Cadet 941-04091

Cup Bearing .750"
(Superseded to 941-04299)

Note: Not Shown

$7.49

$

In Stock, Qty 20+

0

1

Cub Cadet 748-3065A

Deck Spindle Spacer

Note: Not Shown

$14.99

$

In Stock, Qty 20+

0

1

Cub Cadet 750-1000

Spacer .80 x 1.1 x 1.322

Note: Not Shown

$4.99

$

In Stock, Qty 7

0

1

Cub Cadet 750-3190A

Bearing Spacer .780 x 1.00 x 1.0425

Note: Not Shown

$14.99

$

In Stock, only 3 left!

0

1

Cub Cadet 756-04085A

Deck Pulley 5.75"

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-0254B

Bracket Assembly: Deck Hanger

Variations

Cub Cadet 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$38.99

$

In Stock, Qty 10

0

Cub Cadet 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$38.99

$

In Stock, Qty 10

0

Cub Cadet 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$38.99

$

In Stock, Qty 10

0

Cub Cadet 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$38.99

$

In Stock, Qty 10

0

Cub Cadet 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$38.99

$

In Stock, Qty 10

0

Cub Cadet 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$38.99

$

In Stock, Qty 10

0

$52.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 683-04114

Deck Assembly

Variations

Cub Cadet 683-04114-0637

46" DECK SHELL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-04114-0665

46" DECK SHELL - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-04114-0716

46" DECK SHELL - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 710-0521

Hex Bolt 3/8-16 x 3.0,GR8

$5.49

$

In Stock, Qty 6

0

5

Cub Cadet 710-0514

Hex Bolt 3/8-16 x 1.0,GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0528

Hex Bolt 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0751

Hex Bolt 1/4-20 x 0.620

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 911-04069

Grasscatcher Pin

$8.99

$

In Stock, Qty 18

0

11

Cub Cadet 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, only 4 left!

0

12

Cub Cadet 912-0431

Flange Lock Nut 3/8-16

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 12

0

14

Cub Cadet 712-3083

Hex Lock Nut 1/2-13

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 914-0111

Cotter Pin
(Superseded to 714-0111)

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 917-04074

Gear: Deck Adjustment

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 932-0306A

Compression Spring

$8.99

$

In Stock, Qty 18

0

19

Cub Cadet 932-0594A

Extension Spring

$15.99

$

In Stock, Qty 10

0

20

Cub Cadet 753-04856A

Deck Wheel 5.0 dia Ball

$22.99

$

In Stock, Qty 20+

0

21

Cub Cadet 734-0973

Deck Wheel 5.0 x 1.38
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0270

Bell Washer

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-0372B

Shoulder Spacer

$10.99

$

In Stock, Qty 20+

0

25

Cub Cadet 938-0373

Shoulder Screw

$9.99

$

In Stock, Qty 20+

0

26

Cub Cadet 759-04019

Blade 16.28
(Superseded to 742P04015)

$40.99

$

In Stock, Qty 7

0

27

Cub Cadet 759-04020

Blade 14.88
(Superseded to 742P04016)

$34.99

$

In Stock, Qty 8

0

28

Cub Cadet 747-1116

Rod: Deck Release Handle

$12.99

$

In Stock, Qty 20+

0

29

Cub Cadet 747-1130B

Deck Rod: Front Adjustment

$44.99

$

In Stock, Qty 6

0

30

Cub Cadet 750-0748

Spacer

$9.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 954-04033

V- Belt
(Superseded to 954-04033A)

$53.99

$

In Stock, Qty 20+

0

32

Cub Cadet 756-1229

Idler Pulley

$49.99

$

In Stock, Qty 20+

0

33

Cub Cadet N/A

Danger Tag

$

$

Currently unavailable

34

Cub Cadet 783-0141-0637

Deck Skirt: Center

$69.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 783-0142-0637

Deck Skirt RH

$51.99

$

In Stock, only 1 left!

0

36

Cub Cadet N/A

Chute Stop

$

$

Currently unavailable

37

Cub Cadet 783-1347C

Belt Cover

Variations

Cub Cadet 783-1347C-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1347C-0606

COVER-BELT LH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-1347C-0637

Belt Cover, LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1347C-0650

COVER-BELT LH - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-1347C-0716

Belt Cover, LH - CUB YELLOW-99 (0716)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 783-1421B

Idler Bracket

Variations

Cub Cadet 783-1421B-0716

Idler Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-1421B-0637

Idler Bracket - POWDER BLACK (0637)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 783-1450

Belt Cover

Variations

Cub Cadet 783-1450-0606

COVER-BELT RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-1450-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1450-0650

COVER-BELT RH - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-1450-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

40

Cub Cadet 712-3078

Flange Nut

$10.99

$

In Stock, Qty 20+

0
