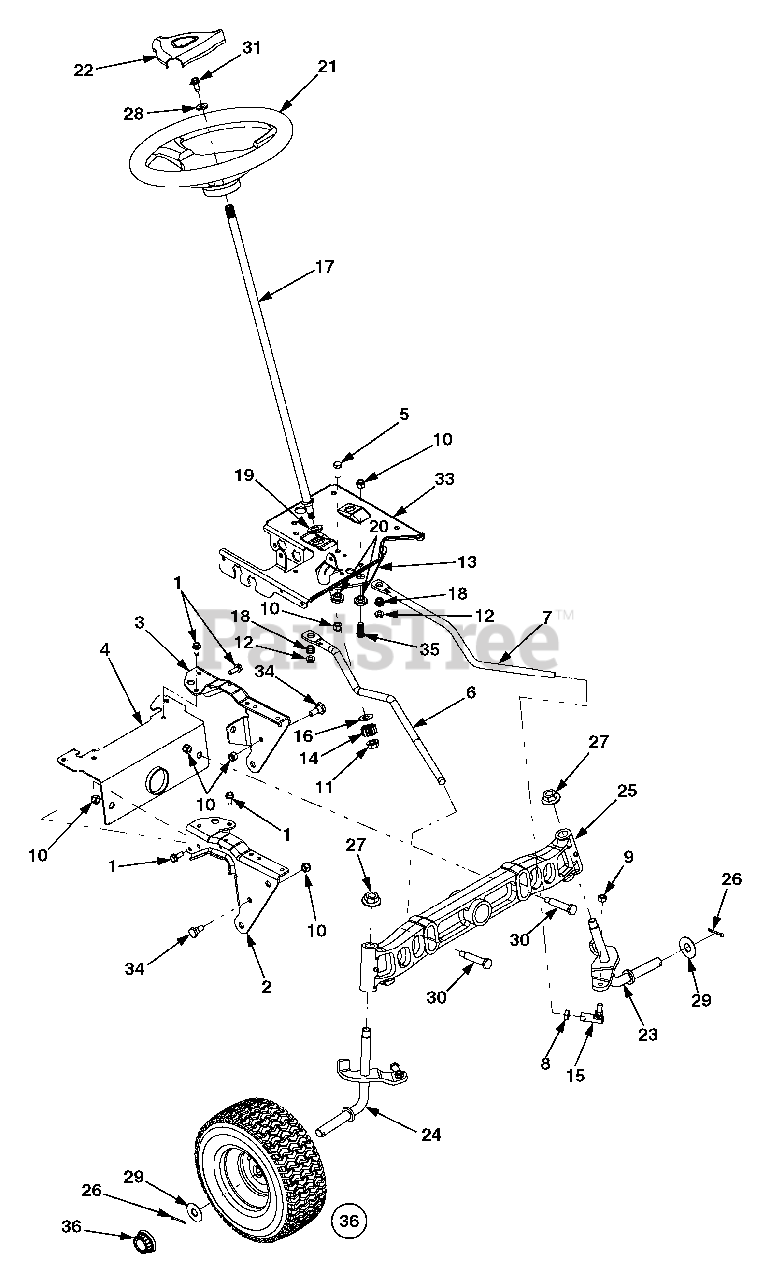

GT 1222 (14AB13CH710) - Cub Cadet 46" Garden Tractor Front Axle Parts Diagram

46" Garden Tractor

Front Axle Parts Diagram

  • Title

1

Cub Cadet 710-0726

Hex Wash. Hd. Tapp Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 783-0726C

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

Cub Cadet 783-0726C-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0726C-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726C-0637

USE 783-0726E-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726C-0650

USE 783-0726E-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726C-0665

USE 783-0726E-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726C-0691

USE 783-0726E-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726C-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 783-0727B

LH Pivot Support Bracket

Variations

Cub Cadet 783-0727B-0606

USE 783-0727D-0606 BRACKET:PI - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0727B-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727B-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727B-0650

USE 783-0727D-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727B-0665

USE 783-0727D-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727B-0691

USE 783-0727D-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727B-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1 (GR 5)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 711-1408

RH Drag Link

$

$

Not available

7

Cub Cadet 711-1409A

LH Drag Link

$

$

Not available

8

Cub Cadet 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0214

Hex Center Lock Nut, 3/8-24 (GR 2)

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0130

Hex Insert Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet 717-1550E

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$65.99

$

In Stock, Qty 20+

0

14

Cub Cadet 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

15

Cub Cadet 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$22.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 759-04186

Steering Shaft, .625 OD x 25

$59.99

$

In Stock, Qty 15

0

18

Cub Cadet 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 741-0656A

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-0372B

Shoulder Spacer, .38 ID

$8.99

$

In Stock, Qty 20+

0

21

Cub Cadet 631-04008

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

22

Cub Cadet 731-04532

Steering Wheel Cap
(Superseded to 731-04532B)

$22.99

$

In Stock, Qty 14

0

23

Cub Cadet 683-04101

LH Axle Assembly, .75 Diameter
(Superseded to 683-04101-0716)

Variations

Cub Cadet 683-04101-0716

Steering Axle, LH - CUB YELLOW-99 (0716)

$74.99

$

In Stock, only 4 left!

0

$74.99

$

In Stock, only 4 left!

0

24

Cub Cadet 683-04102

RH Axle Assembly, .75 Diameter
(Superseded to 683-04102-0716)

Variations

Cub Cadet 683-04102-0716

Steering Axle, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

25

Cub Cadet 719-0525C

Cast Iron Pivot Bar w/ Fittings
(Superseded to 919-04177E)

$231.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0417A

Nut, Hex Flanged 5/8-18

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-3004

Flat Washer, .406 x .875 x .105

$4.49

$

In Stock, Qty 19

0

29

Cub Cadet 736-0866

Flat Washer, .755 x 1.92 x .06

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$7.99

$

In Stock, Qty 12

0

31

Cub Cadet 710-1260A

Hex Wash. Hd. Tapp Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 783-0653G

Steering Support Bracket

$

$

Currently unavailable

34

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 710-04095

Hex Bolt 3/8-16 x 1.0 Special

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 731-3020

Hubcap
(Superseded to 931-3020)

$8.49

$

In Stock, Qty 20+

0

36

Cub Cadet 634-04090

Rim Assembly Only
(Superseded to 934-04090)

Note: (Includes 734-0255 air valve and 741-3032 bearing [qty 2])

Variations

Cub Cadet 634-04090-0499

USE 934-04090A-0499 RIM ASM-F - CUB BEIGE (0499)

$176.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04090-0662

USE 934-04090-0662 RIM ASM-FR - OYSTER GRAY (0662)

$176.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04090-0674

USE 934-04090A-0662 RIM ASM-F - YARDMAN YELLOW (0674)

$176.99

$

Usually ships in 3-6 days

0

$139.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 734-3187

Tire Only
(Superseded to 734-1727)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0255

Air Valve (Not Shown)
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 741-3032

Bearing (Not Shown)
(Superseded to 941-3032)

$43.99

$

In Stock, Qty 7

0
