GT-140 A - Echo String Trimmer (A Version) Driveshaft, Line Head, Throttle, Handles Parts Diagram

String Trimmer

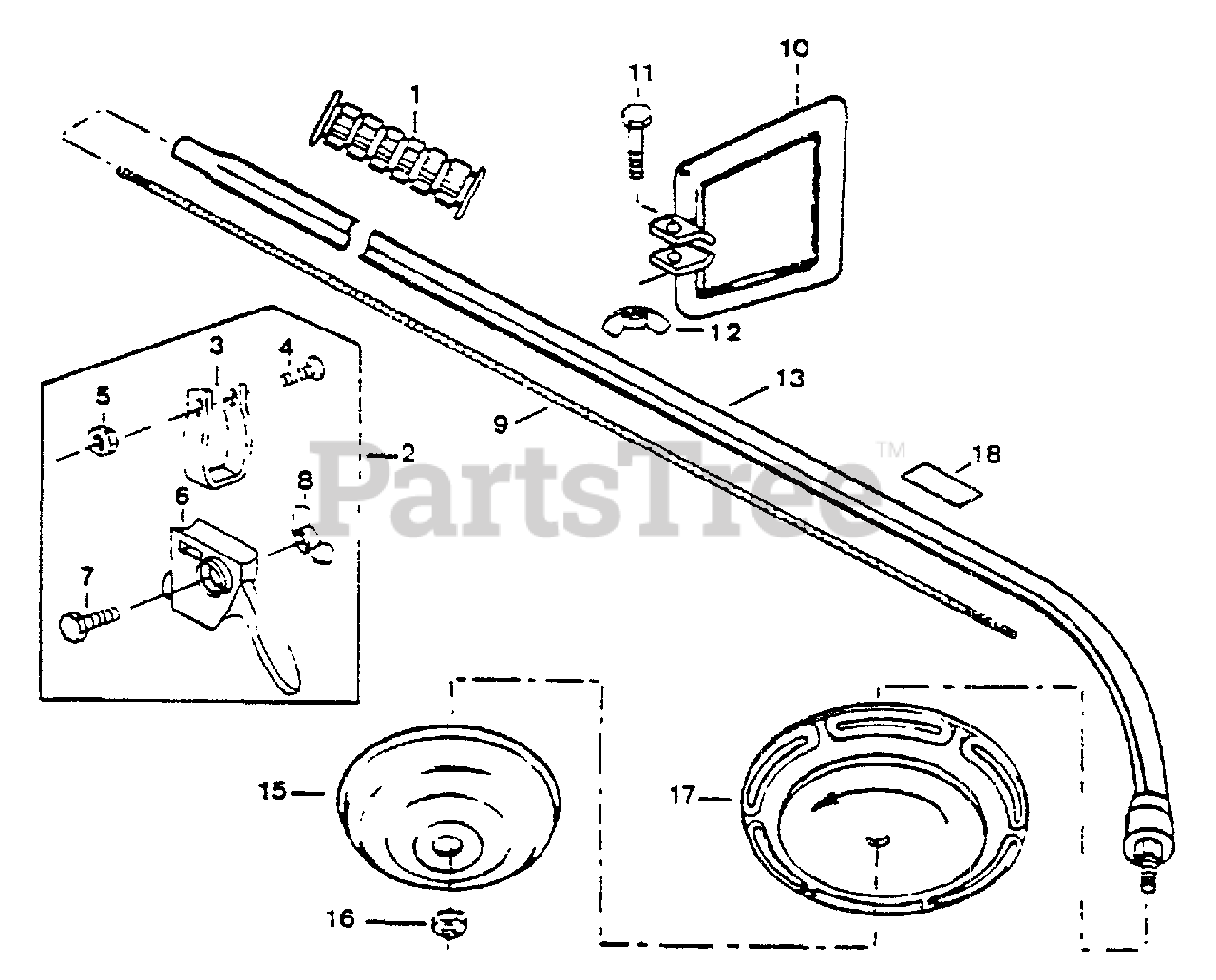

Driveshaft, Line Head, Throttle, Handles Parts Diagram

  • Title

1

Echo 205972

GRIP

$3.99

$

In Stock, only 2 left!

0

2

Echo 205977

CONTROL CABLE ASSY
(Superseded to Discontinued)

Note: Includes items 3, 4, 5, 6, 7 & 8

$

$

Not available

3

Echo 205978

CLAMP, THROTTLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 205594

SCREW - 10-32
(Superseded to Discontinued)

$

$

Not available

5

Echo 205595

NUT - 10-32
(Superseded to Discontinued)

$

$

Not available

6

Echo 205532

Lever Throttle w/Body
(Superseded to Discontinued)

Note: Includes 7-8

$

$

Not available

7

Echo 205592

SCREW - 10-32 X 1"
(Superseded to 205532)

$

$

Not available

8

Echo 205593

WINGNUT - 50-32
(Superseded to 205532)

$

$

Not available

9

Echo 206399

DRIVESHAFT - FLEXIBLE
(Superseded to 61001309630)

$13.99

$

In Stock, Qty 20+

0

10

Echo 207164

Guide Handle
(Superseded to Discontinued)

$

$

Not available

11

Echo 207296

SCREW - 1/4-20

$1.49

$

In Stock, only 1 left!

0

12

Echo 206826

WINGNUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

13

Echo 207172

DRIVESHAFT ASSY - LEFT
(Superseded to Discontinued)

$

$

Not available

14

Echo 207183

Mono-Head w/.080 line complete

$

$

Currently unavailable

15

Echo 207078

LID
(Superseded to Discontinued)

$

$

Not available

16

Echo 207295

SCREW - 1/4-20
(Superseded to Discontinued)

$

$

Not available

17

Echo 207300

Head Body Mono-Head
(Superseded to Discontinued)

$

$

Not available

18

Echo 206945

LABEL - LUBRICATION
(Superseded to Discontinued)

$

$

Not available
