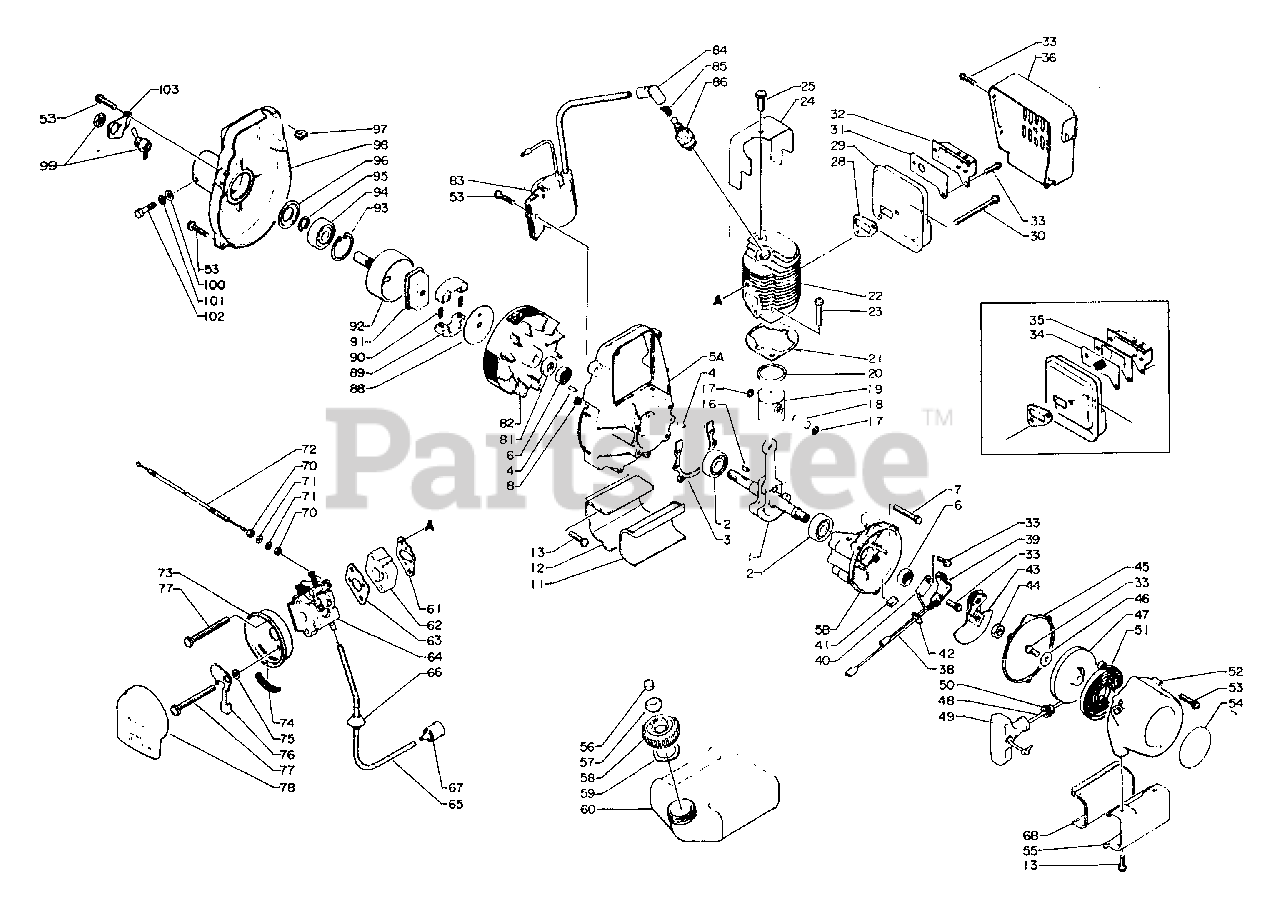

GT-140 A - Echo String Trimmer (A Version) Engine, Crankcase, Ignition Parts Diagram

String Trimmer

Engine, Crankcase, Ignition Parts Diagram

  • Title

1

Echo 10010004920

CRANKSHAFT ASSY
(Superseded to 10010004921)

$

$

Not available

2

Echo 90081036200

BEARING, BALL - 6200
(Superseded to Discontinued)

$

$

Not available

3

Echo 10024204920

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10020004920

CRANKCASE KIT
(Superseded to 10020004921)

Note: Includes 5A and 5B

$

$

Not available

5A

Echo 10020004920

CRANKCASE KIT
(Superseded to 10020004921)

$

$

Not available

5B

Echo 10020004920

CRANKCASE KIT
(Superseded to 10020004921)

$

$

Not available

4

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

6

Echo 10021305930

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0

7

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

8

Echo 15611404920

GROMMET

$0.99

$

In Stock, Qty 10

0

11

Echo 13192006320

CUSHION

$2.49

$

Usually ships in 2-4 days

0

12

Echo 13191006320

BRACKET, FUEL TANK
(Superseded to 13191006321)

$

$

Not available

13

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 5

0

16

Echo 10014200330

KEY

$1.99

$

Usually ships in 2-4 days

0

17

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

18

Echo 10001304920

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

19

Echo 10001007330

PISTON
(Superseded to Discontinued)

$

$

Not available

20

Echo 10001105930

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

21

Echo 10101004920

GASKET, CYLINDER
(Superseded to 10101004921)

$

$

Not available

22

Echo 10101104920

CYLINDER
(Superseded to Discontinued)

$

$

Not available

23

Echo 90024206022

SCREW - 6X22
(Superseded to Discontinued)

$

$

Not available

24

Echo 10151404920

SHIELD, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

25

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

Echo 14580306320

MUFFLER ASSY
(Superseded to 14580321930)

Note: Includes ITEMS 28, 29, 32-36

$

$

Not available

Echo 14590006320

MUFFLER ASSY
(Superseded to Discontinued)

Note: STD; Consists 29 and 31 thru 33

$

$

Not available

29

Echo 14580606320

CASE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

31

Echo 14587506320

GUIDE, EXHAUST - INNER
(Superseded to Discontinued)

$

$

Not available

32

Echo 14587606320

GUIDE, EXHAUST
(Superseded to 14580921930)

$5.49

$

Usually ships in 2-4 days

0

33

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 14551004920

GASKET, EXHAUST
(Superseded to 14551021930)

$2.99

$

Usually ships in 2-4 days

0

33

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

Echo 14580106320

SCREEN KIT
(Superseded to Discontinued)

Note: Includes ITEMS 34-35

$

$

Not available

34

Echo 14586206320

SCREEN, SPARK ARRESTOR
(Superseded to 14586206321)

$2.49

$

Usually ships in 2-4 days

0

35

Echo 14586306320

RETAINER, SCREEN
(Superseded to 14580921930)

$5.49

$

Usually ships in 2-4 days

0

36

Echo 14562106320

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

30

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 15

0

33

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

38

Echo 15050506320

LEAD - GROUND

$6.99

$

Usually ships in 2-4 days

0

39

Echo 15010104920

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

40

Echo 15012704920

CONDENSER
(Superseded to Discontinued)

$

$

Not available

41

Echo 15613403730

PAD, OIL
(Superseded to Discontinued)

$

$

Not available

42

Echo 15011404920

GROMMET

$1.49

$

In Stock, Qty 5

0

43

Echo 17730504920

STARTER PAWL ASSY
(Superseded to Discontinued)

$

$

Not available

44

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

45

Echo 10061504920

GASKET, STARTER
(Superseded to 10061504921)

$

$

Not available

45

Echo 17720006320

STARTER ASSY
(Superseded to 17720006321)

$

$

Not available

33

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

46

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 10

0

47

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

48

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, Qty 8

0

49

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 8

0

50

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

51

Echo 17722006530

SPRING, REWIND

$16.99

$

In Stock, only 2 left!

0

52

Echo 17720906320

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 16

0

54

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 6

0

55

Echo 13191806320

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Consists of 56 thru 59

$

$

Not available

56

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 8

0

57

Echo 13131406320

VENT

$6.49

$

In Stock, Qty 11

0

58

Echo 13101707430

CAP
(Superseded to 13100406320)

$

$

Not available

59

Echo 13101604920

GASKET, CAP

$2.99

$

Usually ships in 2-4 days

0

60

Echo 13101006320

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

61

Echo 13001004921

GASKET, INTAKE
(Superseded to 13001004922)

$

$

Not available

62

Echo 13001704921

INSULATOR, INTAKE

$3.49

$

Usually ships in 2-4 days

0

63

Echo 13001604921

GASKET, INTAKE
(Superseded to 13001604922)

$

$

Not available

64

Echo 12300006320

CARBURETOR WA-80
(Superseded to Discontinued)

$

$

Not available

65

Echo 13201007530

PIPE - 3X5X195 -- BLACK
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$11.99

$

In Stock, only 4 left!

0

66

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

67

Echo 13120506530

FILTER, FUEL
(Superseded to 13120507320)

$6.49

$

In Stock, Qty 20+

0

68

Echo 13192406320

CUSHION

$2.49

$

Usually ships in 2-4 days

0

70

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

71

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

72

Echo 17800104920

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

73

Echo 13030104920

CASE, AIR FILTER
(Superseded to Discontinued)

Note: Includes ITEM 74

$

$

Not available

74

Echo 17881004920

GROMMET

$1.99

$

Usually ships in 2-4 days

0

75

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

76

Echo 17851504920

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

77

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, only 3 left!

0

78

Echo 13031004920

FILTER, AIR
(Superseded to 13031004922)

$11.99

$

Usually ships in 2-4 days

0

81

Echo 10013206530

WASHER

$2.99

$

Usually ships in 2-4 days

0

82

Echo 15020004920

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

83

Echo 15012604920

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

84

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

85

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

86

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

88

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

89

Echo 17501704630

SHOE, CLUTCH
(Superseded to 17501704631)

$25.99

$

Usually ships in 2-4 days

0

90

Echo 17501806530

SPRING, CLUTCH

$4.99

$

In Stock, only 1 left!

0

91

Echo 17501604920

HUB, CLUTCH

$14.99

$

In Stock, only 1 left!

0

92

Echo 17501004920

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

93

Echo 90070200032

RING, RETAINING - 32

$2.49

$

Usually ships in 2-4 days

0

94

Echo 90081906201

BEARING, BALL - 6201
(Superseded to 90081206201)

$14.99

$

In Stock, only 4 left!

0

95

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

96

Echo 17505304920

RETAINER, PIPE

$0.99

$

Usually ships in 2-4 days

0

97

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

98

Echo 10151106320

CASE, FAN

$62.99

$

Usually ships in 2-4 days

0

99

Echo 16340004521

IGNITION SWITCH ASSY

$11.99

$

In Stock, only 2 left!

0

100

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

101

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 7

0

102

Echo 90010505020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

103

Echo 16381006520

BRACKET, SWITCH

$2.49

$

Usually ships in 2-4 days

0
