GT-140 - Echo String Trimmer (Original Version) Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter Parts Diagram

String Trimmer

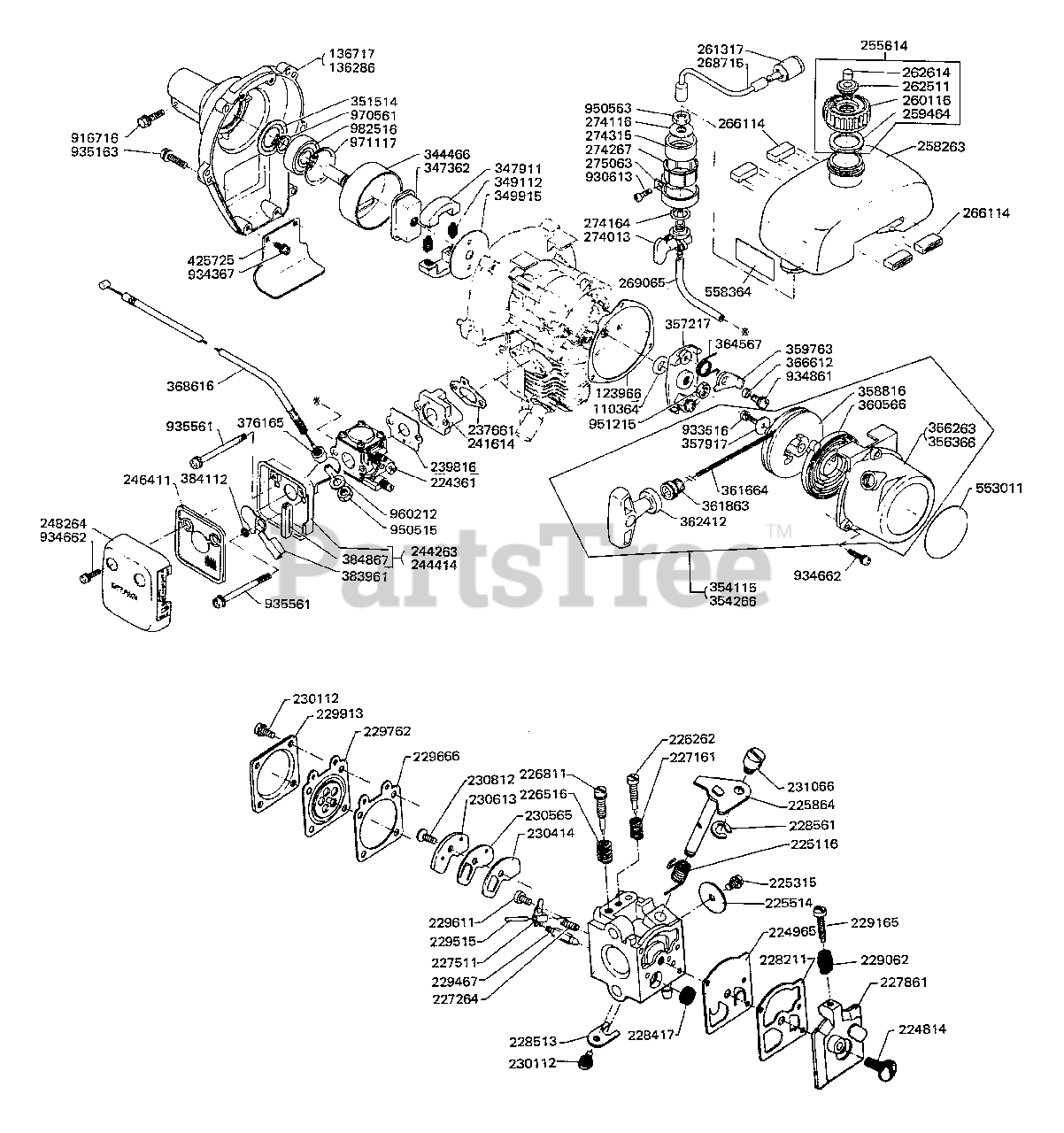

Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter Parts Diagram

  • Title

110364

Echo 10014605930

SPACER

$0.99

$

Usually ships in 2-4 days

0

123966

Echo 10061506530

GASKET, STARTER

$1.49

$

Usually ships in 2-4 days

0

136286

Echo 10151105420

COVER, FAN
(Superseded to Discontinued)

Note: (F-2/1 ONLY)

$

$

Not available

136717

Echo 10151107330

COVER, FAN
(Superseded to Discontinued)

Note: (KE-140DA, F-2/2, 3 ONLY)

$

$

Not available

224361

Echo 12300006530

USE 123000-06320
(Superseded to 12300006320)

$

$

Not available

224814

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 2 left!

0

224965

Echo 12311203930

DIAPHRAGM, FUEL PUMP

Note: Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520

$4.99

$

In Stock, only 4 left!

0

225116

Echo 12311303930

SPRING, THROTTLE
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

225315

Echo 12311403930

SCREW, SHUTTER

$1.49

$

In Stock, Qty 11

0

225514

Echo 12311606530

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

225864

Echo 12311706530

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

226262

Echo 12311806530

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

226516

Echo 12311903930

SPRG., HS NEEDLE

$1.49

$

In Stock, only 4 left!

0

226811

Echo 12312006530

NEEDLE, HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

227161

Echo 12312103930

SPRING, I. NDL

$6.99

$

In Stock, Qty 5

0

227264

Echo 12312206530

SPRING, METERING LEVER
(Superseded to 12312203660)

Note: Included in Rebuild Kit 12310006520

$1.99

$

Usually ships in 2-4 days

0

227511

Echo 12312303930

OBS
(Superseded to 12312338330)

Note: Included in Rebuild Kit 12310006520

$7.49

$

In Stock, only 1 left!

0

227861

Echo 12312406530

USE 123124-07330
(Superseded to 12312407330)

$

$

Not available

228211

Echo 12312503930

GASKET, FUEL PUMP

Note: Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520

$1.99

$

In Stock, Qty 18

0

228417

Echo 12312603930

USE 123126-10631
(Superseded to 12312610631)

Note: Included in Rebuild Kit 12310006520

$1.99

$

In Stock, Qty 8

0

228513

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

228561

Echo 12312710630

RING, THROTTLE SHAFT
(Superseded to Discontinued)

$

$

Not available

229062

Echo 12313311130

SPRING, IDLE ADJ.
(Superseded to Discontinued)

$

$

Not available

229165

Echo 12313406530

SCREW, IDLE ADJ.

$1.49

$

In Stock, only 2 left!

0

229467

Echo 12313703930

OBS
(Superseded to Discontinued)

Note: Included in Rebuild Kit 12310006520

$

$

Not available

229515

Echo 12313803930

PIN

$6.49

$

In Stock, only 4 left!

0

229611

Echo 12313903930

SCREW, METER. LEV. PIN

$6.49

$

In Stock, only 1 left!

0

229666

Echo 12314003930

GASKET, METERING DIAPHRAGM

Note: Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520

$1.99

$

In Stock, only 4 left!

0

229762

Echo 12314103930

DIAPHRAGM, METERING

Note: Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520

$14.99

$

In Stock, Qty 5

0

229913

Echo 12314203930

COVER, MET. DIA.

$4.49

$

In Stock, only 2 left!

0

230112

Echo 12314403930

SCREW W/LOCKWASHER

$0.99

$

In Stock, Qty 9

0

230414

Echo 12316403930

GASKET, CIRCUIT PLATE

Note: Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520

$1.99

$

In Stock, Qty 5

0

230565

Echo 12316503930

OBS
(Superseded to Discontinued)

Note: Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520

$

$

Not available

230613

Echo 12316603930

PLATE ASSY
(Superseded to Discontinued)

$

$

Not available

230812

Echo 12316705230

SCREW, CIRCUIT PLATE

$0.99

$

In Stock, only 1 left!

0

231066

Echo 12317204320

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

237661

Echo 13001006530

PACKING
(Superseded to Discontinued)

$

$

Not available

239816

Echo 13001606531

PACKING
(Superseded to Discontinued)

$

$

Not available

241614

Echo 13001707330

INSULATOR
(Superseded to Discontinued)

$

$

Not available

244263

Echo 13030105020

USE 130301-05021
(Superseded to 13030105021)

Note: (KE-140DA ONLY)

$9.49

$

Usually ships in 2-4 days

0

244414

Echo 13030107430

CASE, AIR FILTER
(Superseded to Discontinued)

Note: (F2/1, 2, 3 ONLY)

$

$

Not available

246411

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

248264

Echo 13031305020

CAP, FILTER
(Superseded to Discontinued)

$

$

Not available

255614

Echo 13100405020

USE 131004-06320
(Superseded to 13100406320)

$

$

Not available

258263

Echo 13101007330

USE 131002-07330
(Superseded to 13100207330)

$

$

Not available

259464

Echo 13101604920

PACKING

$2.49

$

Usually ships in 2-4 days

0

260116

Echo 13101704920

USE 131017-07430
(Superseded to 13101707430)

$

$

Not available

261317

Echo 13120506530

USE 131205-07320
(Superseded to 13120507320)

$6.49

$

In Stock, Qty 20+

0

262511

Echo 13131406320

CHECK VALVE

$5.99

$

In Stock, Qty 5

0

262614

Echo 13131505020

FILTER, DUST PROOF

$0.99

$

In Stock, only 2 left!

0

266114

Echo 13192005930

USE 131002-07330
(Superseded to 13100207330)

$

$

Not available

268715

Echo 13201004630

PIPE, INNER
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

269065

Echo 13201006530

PIPE, FUEL
(Superseded to 13201006531)

$2.99

$

In Stock, only 3 left!

0

274013

Echo 13220006530

VALVE, FUEL ASSY

$12.99

$

Usually ships in 2-4 days

0

274116

Echo 13221706530

WASHER
(Superseded to Discontinued)

$

$

Not available

274164

Echo 13221806530

GASKET
(Superseded to Discontinued)

$

$

Not available

274267

Echo 13221907330

COLLAR
(Superseded to Discontinued)

$

$

Not available

274315

Echo 13222006530

USE 132220-05020
(Superseded to 13222005020)

$

$

Not available

275063

Echo 13250506530

CLAMP

$3.99

$

In Stock, only 1 left!

0

344466

Echo 17501004920

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

347362

Echo 17501607330

BOSS, CLUTCH
(Superseded to Discontinued)

$

$

Not available

347911

Echo 17501704630

USE 17501704631
(Superseded to 17501704631)

$23.99

$

In Stock, only 2 left!

0

349112

Echo 17501806530

SPRING, CLUTCH

$4.49

$

In Stock, only 1 left!

0

349915

Echo 17501906530

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

351514

Echo 17505304920

STOPPER

$0.99

$

Usually ships in 2-4 days

0

354115

Echo 17720006030

STARTER, RECOIL ASSY.
(Superseded to Discontinued)

Note: (KE-140DA, F-2/2, 3 ONLY)

$

$

Not available

354266

Echo 17720006530

STARTER, RECOIL ASSY.
(Superseded to Discontinued)

Note: (F-2/1 ONLY)

$

$

Not available

356263

Echo 17720906030

CASE, STARTER

Note: (KE-140DA, F-2/2, 3 ONLY)

$20.99

$

Usually ships in 2-4 days

0

356366

Echo 17720906530

CASE, STARTER
(Superseded to Discontinued)

Note: (F-2/1 ONLY)

$

$

Not available

357217

Echo 17721006530

PAWL CATCHER
(Superseded to Discontinued)

$

$

Not available

357917

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 6

0

358816

Echo 17721506530

DRUM, RECOIL
(Superseded to Discontinued)

$

$

Not available

359763

Echo 17721806530

RATCHET
(Superseded to Discontinued)

$

$

Not available

360566

Echo 17722006530

SPRING, REWIND

$15.99

$

In Stock, only 2 left!

0

361664

Echo 17722606530

ROPE

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

361863

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

362412

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 10

0

364567

Echo 17723406530

SPRING

$1.49

$

In Stock, Qty 6

0

366612

Echo 17724704630

SPACER

$2.49

$

In Stock, Qty 5

0

368616

Echo 17800104320

WIRE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

376165

Echo 17802107330

NUT

Note: (KE-140DA ONLY)

$2.99

$

Usually ships in 2-4 days

0

383961

Echo 17851506530

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

384112

Echo 17851600830

WASHER

$0.99

$

In Stock, Qty 20+

0

384867

Echo 17881005020

BUSH, RUBBER

$2.49

$

Usually ships in 2-4 days

0

425725

Echo 30511007331

STAND
(Superseded to Discontinued)

$

$

Not available

553011

Echo 89011206031

DECAL, ECHO
(Superseded to 89011844330)

Note: (KE-140DA ONLY)

$0.99

$

In Stock, Qty 6

0

558364

Echo 89015906530

DECAL, FUEL VALVE
(Superseded to Discontinued)

$

$

Not available

916716

Echo 90014205020

BOLT 5 X 20

$0.99

$

Usually ships in 2-4 days

0

930613

Echo 90022004014

SCREW 4 X 14

$0.99

$

Usually ships in 2-4 days

0

933516

Echo 90024104010

SCREW 4 X 10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

934367

Echo 90024204010

SCREW 4 X 10

$0.99

$

In Stock, Qty 20+

0

934662

Echo 90024204020

SCREW 4 X 20

$0.99

$

In Stock, Qty 20+

0

934861

Echo 90024205010

SCREW 5 X 10

$0.99

$

In Stock, Qty 20+

0

935163

Echo 90024205020

SCREW 5 X 20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

935561

Echo 90024205057

SCREW 5 X 57

$0.99

$

In Stock, Qty 8

0

950515

Echo 90050200006

NUT - 6

Note: (KE-140DA ONLY)

$0.99

$

In Stock, Qty 20+

0

950563

Echo 90050200008

NUT M8X1.25 CLASS 3

$0.99

$

In Stock, Qty 7

0

951215

Echo 90051200008

NUT

$1.49

$

Usually ships in 2-4 days

0

960212

Echo 90060000006

WASHER(6MM)

Note: (KE-140DA ONLY)

$0.99

$

In Stock, Qty 8

0

970561

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

971117

Echo 90070200032

CIRCLIP

$1.99

$

In Stock, Qty 11

0

982516

Echo 90081906201

BEARING, BALL
(Superseded to 90081206201)

$13.99

$

In Stock, Qty 9

0

Echo 12310103930

DIAPHRAGM/GASKET KIT

$7.99

$

In Stock, Qty 5

0

Echo 12310006520

REPAIR KIT

$18.99

$

Usually ships in 2-4 days

0
