GT 1554 (14AK13BK009) - Cub Cadet 54" Garden Tractor (2007 & After) Engine Crankshaft & Crankcase Parts Diagram

54" Garden Tractor

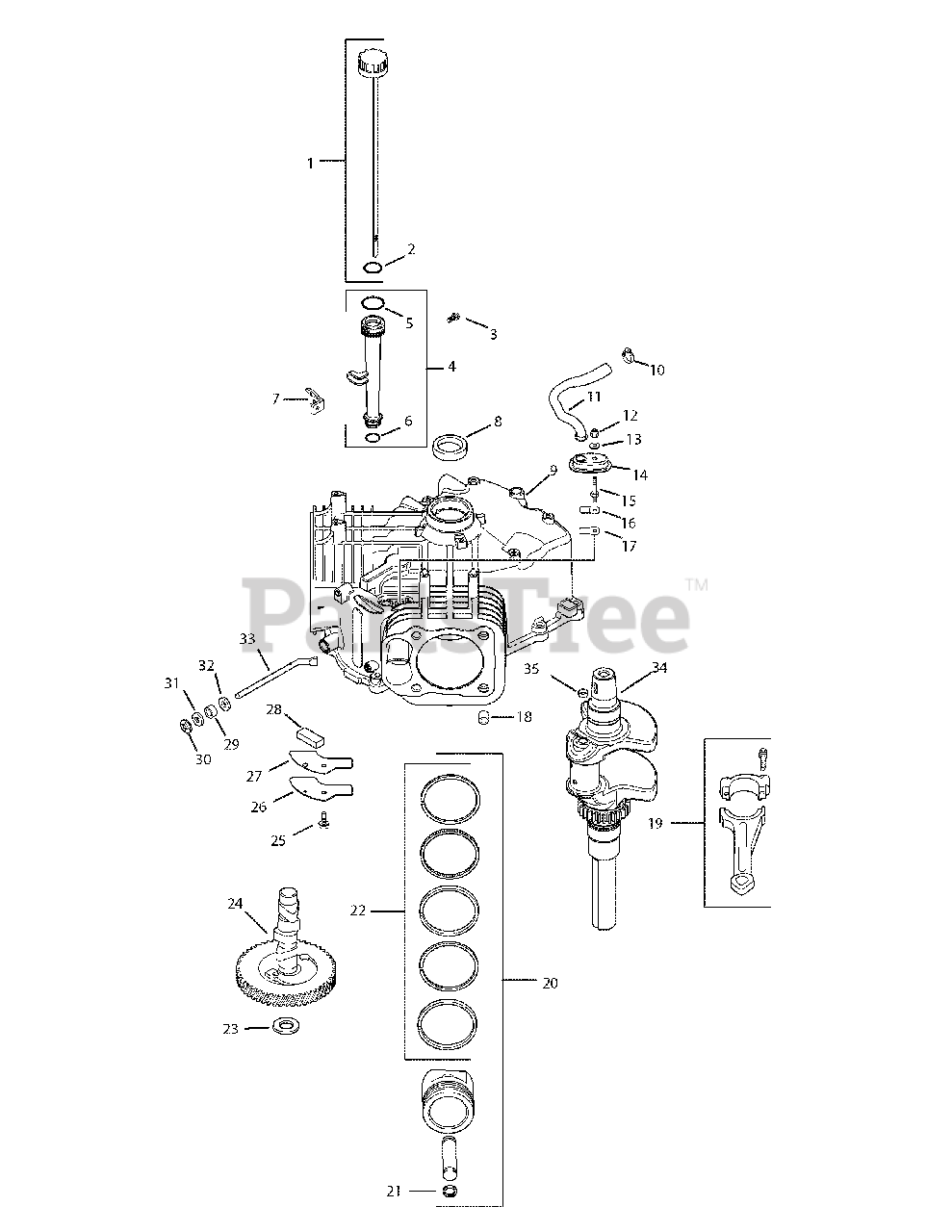

Engine Crankshaft & Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-32-038-01-S

Kit, dipstick
(Superseded to KH-32-755-04-S)

Note: (Includes 2)

$

$

Not available

2

Cub Cadet KH-12-153-02-S

O-Ring

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet KH-M-545013-S

Screw, hex. flange M5x0.8x16

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-12-123-04

Tube, oil fill
(Superseded to KH-32-755-04-S)

Note: (Includes 5,6)

$

$

Not available

5

Cub Cadet KH-12-153-02-S

O-Ring, upper oil fill tube

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-12-153-01-S

O-Ring, lower oil fill tube

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-126-19

Bracket, oil fill tube
(Superseded to KH-24-126-243-S)

$11.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-032-01-S

Seal, oil
(Superseded to KH-24-032-19-S)

$9.49

$

In Stock, Qty 20+

0

9

Cub Cadet N/A

Crankcase

Note: (USE: Miniblock)

$

$

Currently unavailable

9

Cub Cadet KH-32-782-01

Miniblock

$

$

Not available

10

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, Qty 12

0

11

Cub Cadet KH-32-326-06-S

Hose, breather

$23.99

$

In Stock, Qty 6

0

12

Cub Cadet KH-M-547050-S

Nut, hex. lock M5x0.8

$2.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-32-468-01-S

Washer, sealing

$2.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-32-081-02-S

Housing, breather

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-32-072-02-S

Stud, breather cover

$

$

Not available

16

Cub Cadet KH-24-018-04-S

Retainer, breather reed

$2.49

$

In Stock, Qty 18

0

17

Cub Cadet KH-12-402-02

Reed, breather

$

$

Not available

18

Cub Cadet KH-24-380-16-S

Pin, locating

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet KH-24-067-24-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$75.99

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-874-01-S

Piston w/Ring Set (Std.) (Inc. 21)
(Superseded to KH-24-874-46-S)

$199.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-874-27-S

Piston w/Ring Set (.08)
(Superseded to KH-25-874-07-S)

$332.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-874-28-S

Piston w/Ring Set (.25)
(Superseded to KH-25-874-16-S)

$332.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-018-01-S

Retainer, piston pin

$3.49

$

In Stock, Qty 14

0

22

Cub Cadet KH-24-108-14-S

Ring Set (Std.)

$

$

Not available

22

Cub Cadet KH-24-108-16-S

Ring Set (.25)

$113.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-12-422-10-S

Shim, camshaft (yellow)

$2.49

$

In Stock, Qty 11

0

23

Cub Cadet KH-12-422-09-S

Shim, camshaft (red)

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-12-422-13-S

Shim, camshaft (black)

$2.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-12-422-07-S

Shim, camshaft (white)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-12-422-08-S

Shim, camshaft (blue)

$2.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-12-422-11-S

Shim, camshaft (green)

$2.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-12-422-12-S

Shim, camshaft (gray)

$2.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-32-012-01-S

Kit, camshaft

$136.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-M-645016-S

Screw, hex. flange M6x1.0x16

$4.99

$

In Stock, Qty 10

0

26

Cub Cadet KH-32-096-04-S

Cover, breather

$2.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-32-041-01-S

Gasket, breather cover

$

$

Not available

28

Cub Cadet KH-32-050-01-S

Filter, breather

$2.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-28-032-09-S

Seal, governor cross shaft

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet KH-24-018-09-S

Ring, retainer

$2.49

$

In Stock, Qty 19

0

31

Cub Cadet KH-M-931010-S

Washer, plain 8 mm

$2.49

$

In Stock, Qty 7

0

32

Cub Cadet KH-24-468-15-S

Washer, flat 1/4"

$2.49

$

In Stock, only 2 left!

0

33

Cub Cadet KH-24-144-38-S

Shaft, governor cross
(Superseded to KH-24-144-39-S)

$52.99

$

Usually ships in 2-5 days

0

34

Cub Cadet KH-32-014-04-S

Crankshaft
(Superseded to KH-32-014-303-S)

Note: (Includes 35)

$373.99

$

Usually ships in 2-5 days

0

35

Cub Cadet KH-52-139-09-S

Plug, cup

$4.99

$

In Stock, Qty 9

0
