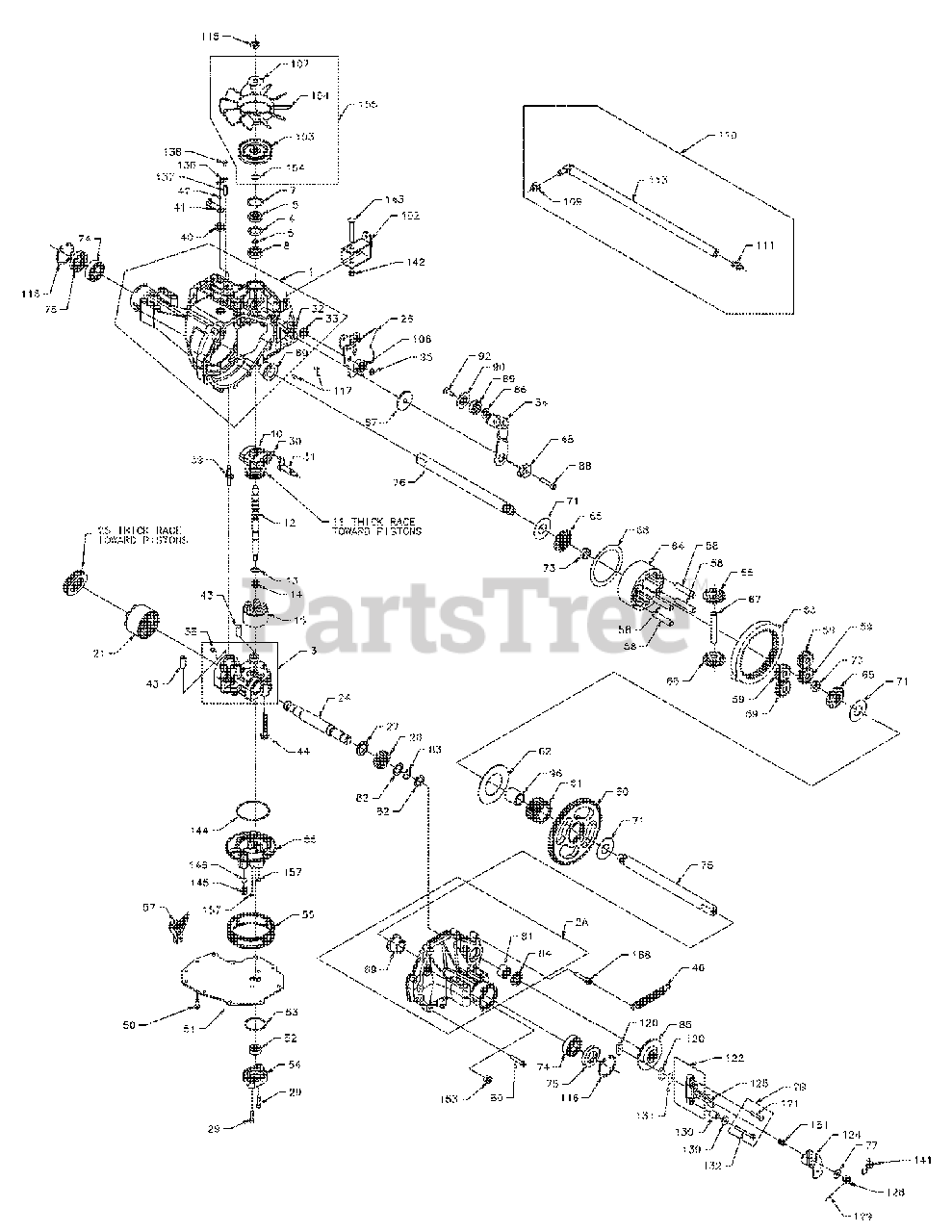

GT 1554 (14AK13BK709) - Cub Cadet 54" Garden Tractor (2005 - 2007) Transmission Parts Diagram

54" Garden Tractor

Transmission Parts Diagram

  • Title

1

Cub Cadet HG-70297

Assembly, Main Housing

$

$

Not available

2A

Cub Cadet HG-71120

Assembly, Right Hand Housing

$

$

Not available

2B

Cub Cadet HG-71139

Kit, Brake Bolt

$

$

Not available

3

Cub Cadet HG-70683

Assembly, Center Section

$

$

Not available

4

Cub Cadet HG-2003018

Spacer, .98 x 1.37 x .04

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-9008000-0128

Seal, Lip 15 x 35 x 7

$17.99

$

In Stock, only 3 left!

0

6

Cub Cadet HG-2003016

Ring, Retaining

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2003052

Ring, Retaining

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-2003043

Bearing, Ball .59 x 1.38 x .43
(Superseded to HG-2003043P)

$68.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2003087

Swashplate, Variable

$204.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-50551

Bearing, Thrust 30 x 52 x 13
(Superseded to HG-50551P)

$27.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50795

Shaft, Input (STD Charge)

$

$

Not available

13

Cub Cadet HG-2003017

Washer, Thrust .59 x .79 x .04

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2003014

Spring, Block

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-70331

Assembly Block

$175.99

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-70082

Assembly Block
(Superseded to HG-72159)

$

$

Not available

24

Cub Cadet HG-50662

Shaft, Motor

$

$

Not available

25

Cub Cadet HG-50552

Bearing, Thrust 42 x 68 x 16
(Superseded to HG-53341)

$

$

Not available

26

Cub Cadet HG-51125

Arm Control

$

$

Not available

27

Cub Cadet HG-50774

Spacer, 1.03 x 1.38 x .184

$

$

Not available

28

Cub Cadet HG-50661

Gear, 16T Piston

$

$

Not available

29

Cub Cadet HG-50975

Screw, Cap M6 x 1 x 25

$

$

Not available

30

Cub Cadet HG-2000015

Guide, Slot

$19.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-50807

Arm, /Trunnion Tapered Square

$

$

Not available

32

Bearing, Trunnion

$

$

Not available

33

Cub Cadet HG-9008000-0126

Seal, Lip 12 x 25 x 7

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51127

Arm, Return

$

$

Not available

38

Cub Cadet HG-70680

Kit, Bypass Plate

$

$

Not available

39

Cub Cadet HG-2003555

Actuator, Bypass

$

$

Not available

40

Cub Cadet HG-45074

Seal, Lip 10 x 25 x 7

$

$

Not available

41

Cub Cadet HG-50270

Arm, Bypass

$

$

Not available

42

Cub Cadet HG-44870

Ring Retaining

$

$

Not available

43

Cub Cadet HG-50002

Pin, Hollow .39 x .50 x 1.12

$7.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-50016

Screw, Hex Flange 3/8-24 x 2.5

$4.99

$

Usually ships in 3-6 days

0

46

Cub Cadet HG-51153

Spring, 5 inch Return (medium)

$

$

Not available

48

Cub Cadet HG-51097

Puck , Adjusting

$10.99

$

Usually ships in 3-6 days

0

50

Cub Cadet HG-50752

Screw, Hex Flange 1/4-20 x .75

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet HG-50972

Cover, Lower w/2 Kidneys

$

$

Not available

52

Cub Cadet HG-50273

Gerotor

$33.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-9004101-1340

O-Ring, 1.862 x 2.068

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-50260

Housing, Charge Pump

$

$

Not available

55

Cub Cadet HG-70538

Kit, Filter
(Superseded to HG-51315)

$

$

Not available

56

Cub Cadet HG-51156

Manifold, Charge

$

$

Not available

57

Cub Cadet HG-50796

Retainer, Motor Bearing

$

$

Not available

58

Cub Cadet HG-50776

Pin, Carrier

$

$

Not available

59

Cub Cadet HG-50763

Gear 15T Planet

$

$

Not available

60

Cub Cadet HG-50646

Gear, 67T Spur

$

$

Not available

61

Cub Cadet HG-50645

Gear, 21T Sun

$

$

Not available

62

Cub Cadet HG-50769

Washer, Thrust 2.32 x 4.10 x .05

$

$

Not available

63

Cub Cadet HG-50764

Gear, 51T Ring

$

$

Not available

64

Cub Cadet HG-50765

Carrier Planetary

$

$

Not available

65

Cub Cadet HG-50647

Gear 14T Miter (Splined)

$

$

Not available

66

Cub Cadet HG-50648

Gear 14T Miter (Unsplined)

$

$

Not available

67

Cub Cadet HG-50766

Shaft, Differential

$

$

Not available

68

Cub Cadet HG-50767

Washer, Thrust 3.46 x 4.39 x .05

$

$

Not available

69

Cub Cadet HG-50768

Bearing, Flange 1.0 x 1.376 x .99

$

$

Not available

71

Cub Cadet HG-50788

Washer, 1.0 x 2.25 x .04

$

$

Not available

73

Cub Cadet HG-50791

Nut, Hex 5/8-18 w/Patch

$

$

Not available

74

Cub Cadet HG-50771

Bearing, Ball 25.4 x 52 x 15
(Superseded to HG-53656)

$16.99

$

In Stock, only 2 left!

0

75

Cub Cadet HG-50772

Seal, lip 1.0 x 2.049 x .375
(Superseded to HG-53699)

$8.99

$

In Stock, only 4 left!

0

76

Cub Cadet HG-52339

Shaft, Axle 1 x 12.69 (DD)

$

$

Not available

77

Cub Cadet HG-44130

Washer, .34 x .88 x .06
(Superseded to 736-0371)

$4.49

$

In Stock, Qty 7

0

79

Cub Cadet HG-50928

Sealant (10.1 oz)

$96.99

$

Usually ships in 3-6 days

0

80

Cub Cadet HG-50868

Screw, Torx, HD 5/16-18 x 1.5

$2.99

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-44752

Bearing, Needle .875 x 1.125 x 1.5

$

$

Not available

82

Cub Cadet HG-50777

Washer, Flat .88 x 1.25 x .04

$

$

Not available

83

Cub Cadet HG-50775

Ring, Retaining

$

$

Not available

84

Cub Cadet HG-50773

Seal, Lip .875 x 1.375 x .250

$

$

Not available

85

Cub Cadet HG-50779

Disk, Brake

$

$

Not available

86

Cub Cadet HG-50132

Washer, .51 x 1.0 x.03

$4.49

$

Usually ships in 3-6 days

0

87

Cub Cadet HG-50836

Spacer, .32 x 1.96 x .15

$

$

Not available

88

Cub Cadet HG-50837

Screw, Socket HD Cap 5/16 x 1.5

$3.49

$

Usually ships in 3-6 days

0

89

Cub Cadet HG-44147

Bearing, Ball .62 x 1.38 x .44

$34.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-51200

Spacer, Locating

$6.99

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-50870

Screw, Countersunk 5/16 - 18 x 1.0

$

$

Not available

95

Cub Cadet 912-0273

Nut, Hex Lock 5/16-24

$4.49

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-50866

Brushing, Sleeve 1.0 x 1.3 x 1.34

$

$

Not available

97

Oil 20W60 (121.6oz)

$

$

Not available

102

Cub Cadet HG-50813

Bracket, Torque

$

$

Not available

103

Cub Cadet HG-50818

Pulley, 3.6 inch
(Superseded to HG-72129)

$63.99

$

In Stock, Qty 5

0

104

Cub Cadet HG-51862

Fan, 7.0 In (10 blade)

$12.99

$

In Stock, Qty 19

0

106

Cub Cadet HG-51604

Spacer, Trunnion

$

$

Not available

107

Cub Cadet HG-51523

Washer, OD Slotted 53 x 1.363 x .06

$3.99

$

In Stock, Qty 8

0

109

Cub Cadet HG-50133

Bushing Vent (Rubber)

$

$

Not available

110

Cub Cadet HG-70302

Kit Fitting

$

$

Not available

111

Cub Cadet HG-70109

Assembly, Cap-vent

$11.99

$

Usually ships in 3-6 days

0

113

Cub Cadet HG-70301

Kit, 90 Degree Fitting and Hose Assembly

$

$

Not available

115

Cub Cadet HG-44133

Nut, Hex 1/2 -20 W/Patch

$4.49

$

In Stock, only 4 left!

0

116

Cub Cadet HG-50859

Ring, Retaining

$6.49

$

Usually ships in 3-6 days

0

117

Cub Cadet HG-9004800-2506

Pin, Standard Headless

$3.99

$

Usually ships in 3-6 days

0

120

Cub Cadet 917-0678

Puck, Brake

$6.99

$

In Stock, Qty 20+

0

121

Bolt, Hex HD 1/4-20 x 1.25 w/Patch (order kit)

$

$

Not available

122

Cub Cadet HG-70633

Assembly, Brake w/Yoke

$18.99

$

Usually ships in 3-6 days

0

124

Cub Cadet HG-50936

Arm, Brake

$

$

Not available

125

Cub Cadet 941-0343

Pin, Brake Actuating
(Superseded to 741-0343)

$

$

Not available

128

Cub Cadet 712-0335

Nut, Castle 5/16-24
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

129

Cub Cadet 914-0507

Pin, Cotter 3/32 x 3/4

$4.49

$

In Stock, Qty 19

0

130

Cub Cadet HG-23711

Spacer, .326 x .57 x.87

$11.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 917-0682

Plate, Puck

$9.49

$

In Stock, Qty 7

0

132

Bolt, Hex HD 1/4-20 x 1.25 w/Patch (order kit)

$

$

Not available

136

Cub Cadet HG-50384

Spring, Bypass 1.33 inch extension

$

$

Not available

137

Cub Cadet HG-50882

Pin, spring .26 x 1

$

$

Not available

138

Cub Cadet HG-50653

Bolt, Self tapping 10-32 x .5

$

$

Not available

139

Cub Cadet HG-44278

Washer, .27 x .88 x .2

$

$

Not available

141

Cub Cadet HG-50884

Spring, Brake Arm Bias

$10.99

$

Usually ships in 3-6 days

0

142

Cub Cadet 912-03004A

Nut, Hex Lock 5/16-18

$

$

Currently unavailable

143

Cub Cadet 710-0572

Bolt, 5/16-18 x 2.5

$3.99

$

In Stock, only 4 left!

0

144

Cub Cadet HG-50974

O-Ring, 2.987 x 3.09

$

$

Not available

145

Cub Cadet HG-51157

Spring, Relief

$3.49

$

Usually ships in 3-6 days

0

146

Cub Cadet HG-9001214-4400

Ball, 7/16"

$3.49

$

Usually ships in 3-6 days

0

151

Cub Cadet HG-50919

Spring, Comp. Brake Anti-Drag

$3.99

$

Usually ships in 3-6 days

0

153

Cub Cadet HG-9005110-5600

Plug 9/16-18 (metal)

$18.99

$

Usually ships in 3-6 days

0

154

Cub Cadet HG-50920

Ring, Retaining

$

$

Not available

155

Cub Cadet N/A

Kit, Fan/Pulley Components

Note: order components

$

$

Currently unavailable

157

Cub Cadet HG-50977

O-Ring .239 x .379

$

$

Not available

168

Cub Cadet HG-51151

Screw, Torx HD Shouldered 5/16-18 x 1.81

$

$

Not available

203

Cub Cadet HG-70492

Kit, Seal & O-Ring

$

$

Not available
