GT 1554 (14AK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007) Command Engine Crankcase Parts Diagram

54" Garden Tractor

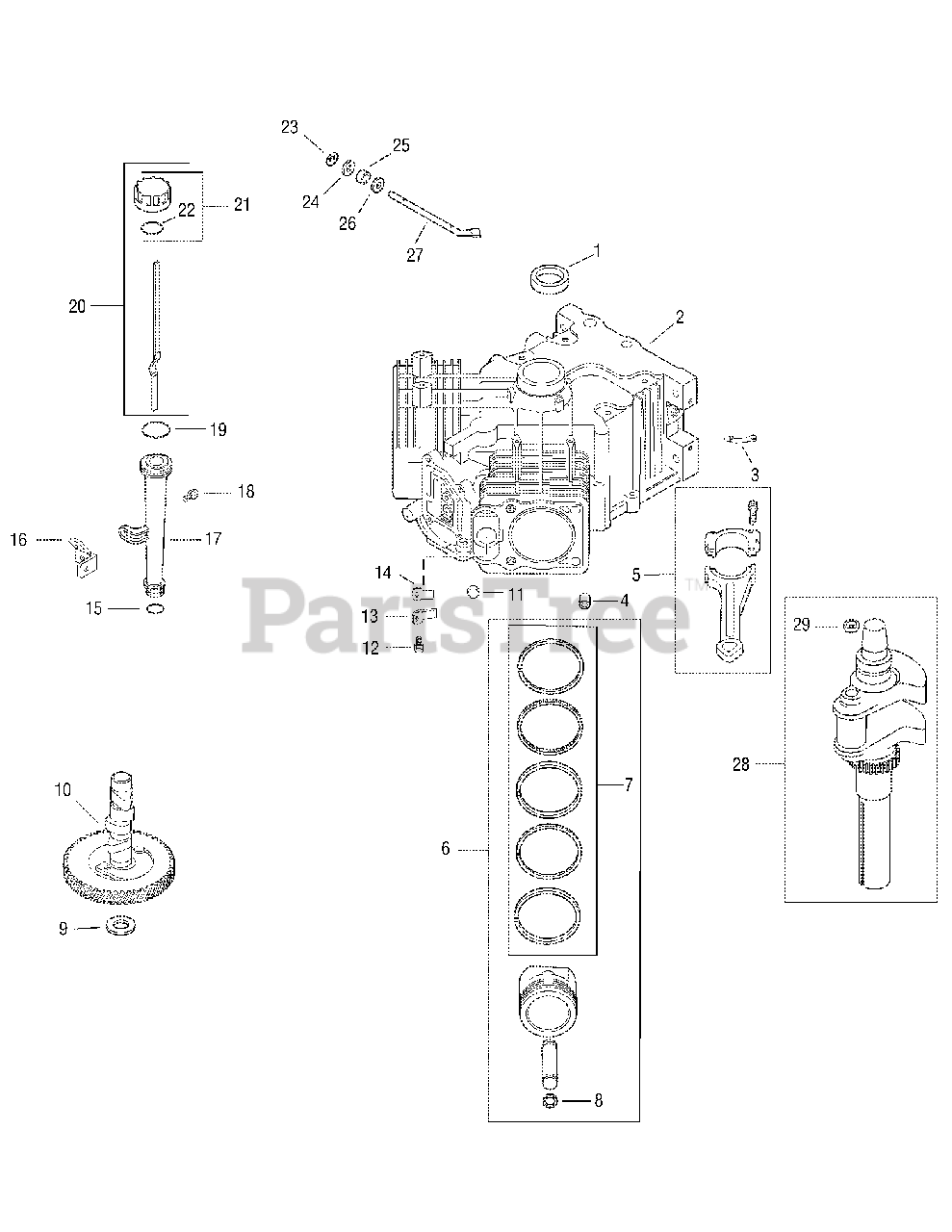

Command Engine Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-01-S

Seal, front oil
(Superseded to KH-24-032-19-S)

$9.49

$

In Stock, Qty 20+

0

2

Cub Cadet KH-24-522-378

Short Block

$2107.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-782-23

Miniblock

$1317.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-24-380-13-S

Pin, locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet KH-24-067-13-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$75.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-067-14

Connecting Rod (.25)

$

$

Not available

6

Cub Cadet KH-24-874-08-S

Piston w/ Ring Set (Std.)
(Superseded to KH-25-874-13-S)

Note: (Includes 7,8)

$343.99

$

In Stock, Qty 5

0

6

Cub Cadet KH-24-874-16-S

Piston w/ Ring Set (.08)
(Superseded to KH-25-874-07-S)

$332.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-20-S

Piston w/ Ring Set (.25)
(Superseded to KH-25-874-16-S)

$332.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-21-S

Piston w/ Ring Set (.50)
(Superseded to KH-25-874-17-S)

$332.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-04-S

Ring set (Std. & .08)
(Superseded to KH-24-108-14-S)

$

$

Not available

8

Cub Cadet KH-24-018-01

Retainer, piston pin
(Superseded to KH-24-018-01-S)

$3.49

$

In Stock, Qty 14

0

9

Cub Cadet KH-12-422-09

Shim, camshaft - red as required
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-13

Shim, camshaft - black as required
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-07

Shim, camshaft - white as required
(Superseded to KH-12-422-07-S)

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-08

Shim, camshaft - blue as required
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-10

Shim, camshaft - yellow as required
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, Qty 11

0

9

Cub Cadet KH-12-422-11

Shim, camshaft - green as required
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-12-S

Shim, camshaft - gray as required

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-18-S

Camshaft
(Superseded to KH-24-012-26-S)

$165.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-52-139-09

Plug, cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet KH-M-0545010

Screw, hex. flange M5 x 0.8 x 10

$

$

Not available

13

Cub Cadet KH-24-018-04

Retainer, reed

$

$

Not available

14

Cub Cadet KH-24-402-05-S

Reed, breather
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

O-Ring, lower oil fill tube

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-24-126-19

Bracket, oil fill tube
(Superseded to KH-24-126-243-S)

$11.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-123-04

Tube, oil fill
(Superseded to KH-32-755-04-S)

$

$

Not available

18

Cub Cadet KH-M-545016-S

Screw, hex. flange M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, Qty 18

0

19

Cub Cadet KH-12-153-02-S

O-Ring, upper oil fill tube

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-038-04-S

Dipstick assembly

Note: (Includes 21,22)

$21.99

$

In Stock, only 2 left!

0

21

Cub Cadet N/A

Kit, oil fill cap

Note: (Includes 22) use ref 20

$

$

Currently unavailable

22

Cub Cadet KH-25-153-02-S

O-Ring, dipstick

$3.49

$

In Stock, Qty 15

0

23

Cub Cadet KH-24-018-09-S

Retainer, ring

$2.49

$

In Stock, Qty 19

0

24

Cub Cadet KH-M-931010-S

Washer, plain 9 mm

$2.49

$

In Stock, Qty 7

0

25

Cub Cadet KH-28-032-09-S

Seal, governor cross shaft

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet KH-24-468-15-S

Washer, plain 1/4"

$2.49

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-144-38-S

Shaft, governor cross
(Superseded to KH-24-144-39-S)

$52.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KH-24-014-42

Crankshaft
(Superseded to KH-24-014-364-S)

Note: (Includes Ref 29)

$517.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-52-139-09

Plug, cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, Qty 9

0

Cub Cadet KH-CV740-0026

Complete Engine

Note: Not shown

$

$

Not available

Cub Cadet KH-24-755-113-S

Gasket Set
(Superseded to KH-24-755-394-S)

Note: Not shown

$228.99

$

Usually ships in 3-6 days

0
