GT 1554 (14AK13CK010) - Cub Cadet 54" Garden Tractor Kohler SV740-0010 Head, Valve & Breather Parts Diagram

54" Garden Tractor

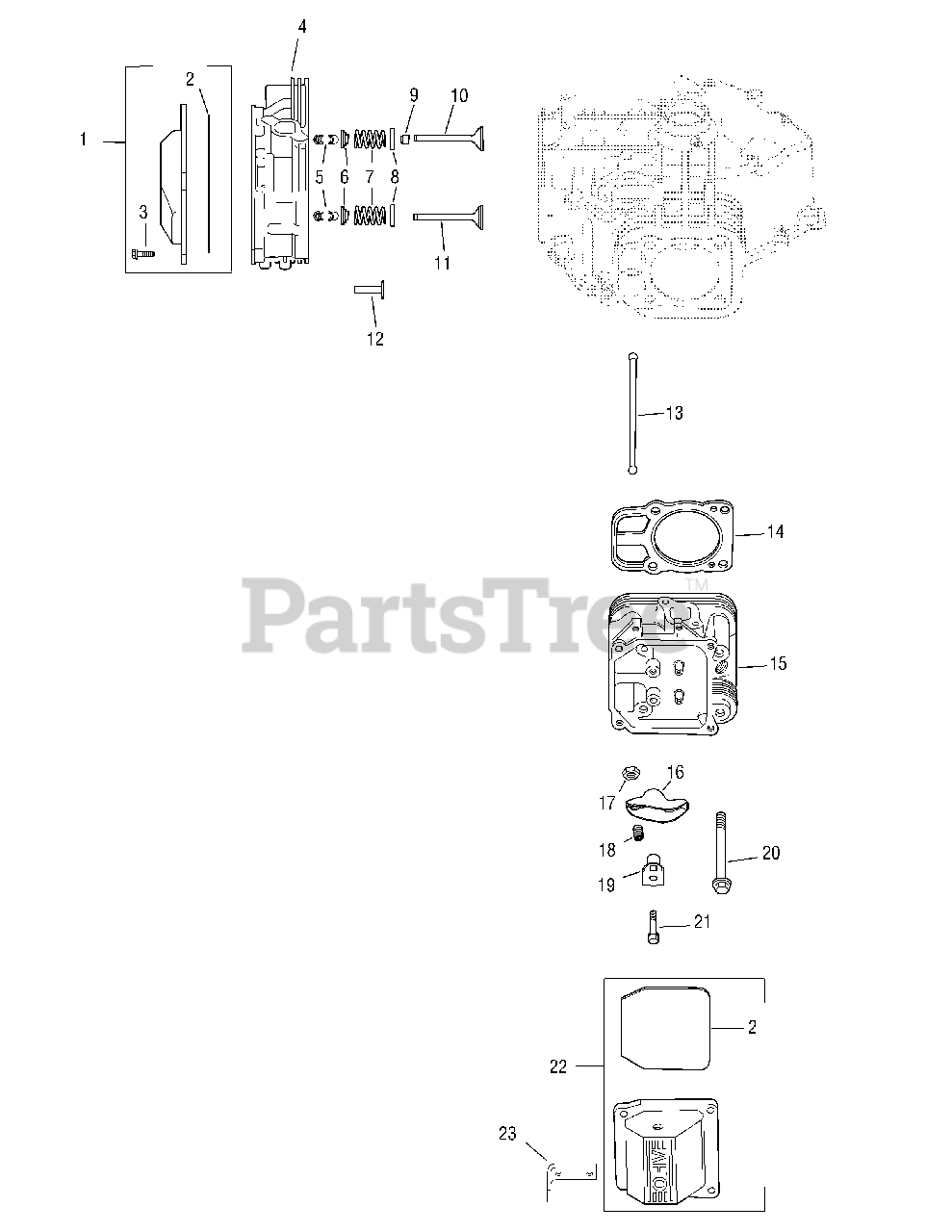

Kohler SV740-0010 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-141-S

Valve Cover Kit (Inc. 2 & 3)

$35.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-24-153-30-S

O-Ring

$11.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-M-651030-S

Hex Flange Screw, M6 x 1.0 x 30

$

$

Not available

4

Cub Cadet KH-32-318-01-S

#1 Cylinder Head Assembly
(Superseded to KH-32-755-39-S)

$179.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, Qty 14

0

6

Cub Cadet KH-12-173-01

Valve Spring Cap
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 9

0

7

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

8

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, Qty 14

0

9

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-017-01

Intake Valve (Std.)

$

$

Not available

10

Cub Cadet KH-24-017-02

Intake Valve (.25)

$

$

Not available

11

Cub Cadet KH-24-016-01

Exhaust Valve (Std.)
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, Qty 18

0

11

Cub Cadet KH-24-016-02

Exhaust Valve (.25)

$

$

Not available

12

Cub Cadet KH-32-019-01-S

Tappet
(Superseded to KH-32-019-02-S)

$13.99

$

In Stock, Qty 11

0

13

Cub Cadet KH-32-411-02-S

Push Rod Cylinder Head Gasket Kit (Inc. Head

$

$

Not available

14

Cub Cadet KH-24-841-03-S

Mounting Hardware & KH-24-041-49-S & KH-24-153-27-S)
(Superseded to KH-24-841-04-S)

$45.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-32-318-02-S

#2 Cylinder Head Assembly
(Superseded to KH-32-318-14-S)

$

$

Not available

16

Cub Cadet KH-32-186-02-S

Rocker Arm
(Superseded to KH-32-755-06-S)

$31.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-32-100-04-S

Hex Nut, M10 x 0.75

$38.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-32-086-03-S

Set Screw

$3.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-599-02-S

Rocker Arm Pivot

$2.49

$

In Stock, Qty 12

0

20

Cub Cadet KH-12-086-16

Hex Flange Screw, M10 x 1.5 x 90
(Superseded to KH-62-086-08-S)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet KH-32-086-04-S

Hex Flange Screw, M6 x 1.0 x 45

$

$

Not available

22

Cub Cadet KH-32-096-06-S

Valve Cover Kit - Breather (Inc. 2)

$29.99

$

In Stock, only 3 left!

0

23

Cub Cadet KH-24-445-01

Lifting Strap
(Superseded to KH-25-445-03-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-041-49-S

Exhaust Gasket

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

Note: Not Shown

$3.49

$

In Stock, Qty 9

0
