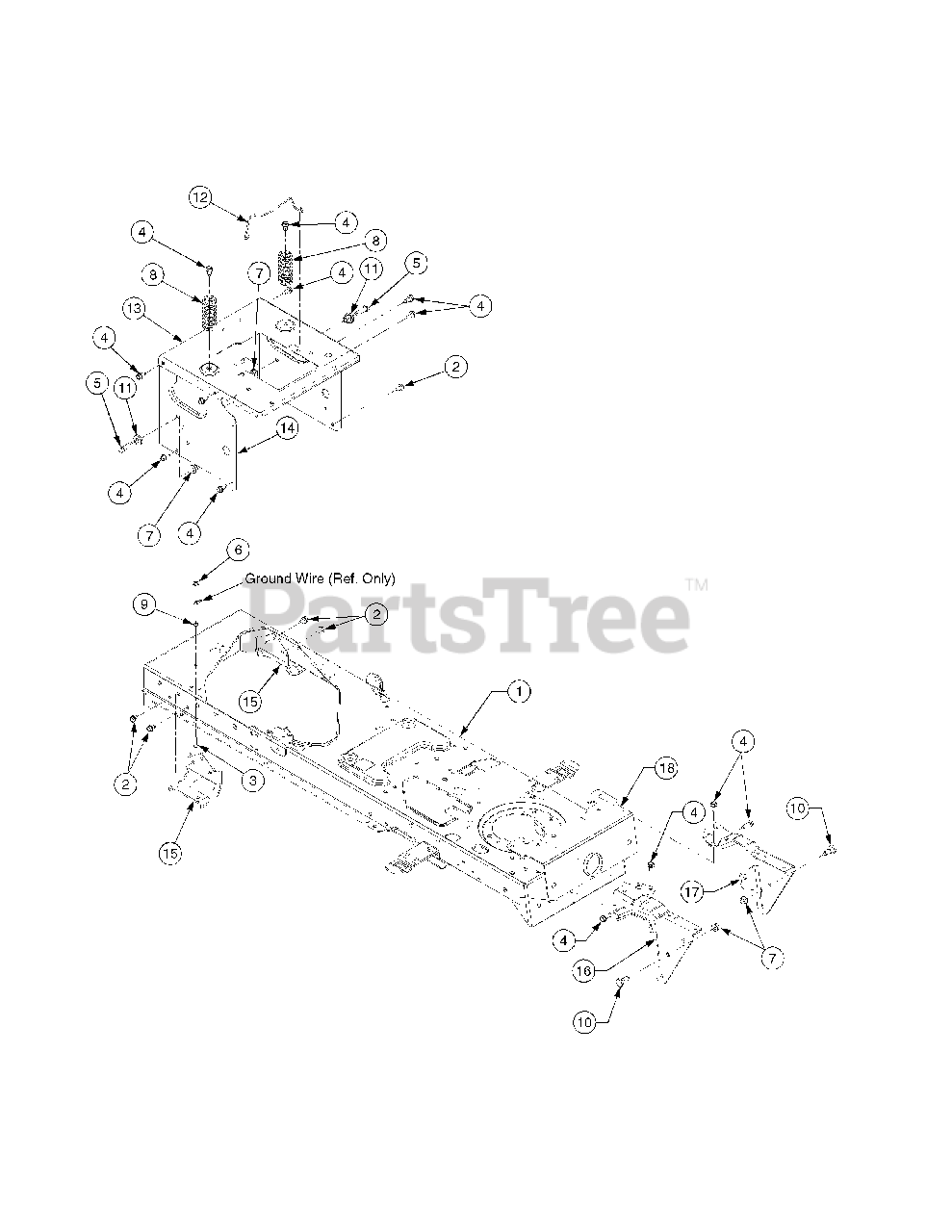

GT 1554 (14AK13CK710) - Cub Cadet 54" Garden Tractor (2005 & Before) Frame Parts Diagram

54" Garden Tractor

Frame Parts Diagram

  • Title

1

Cub Cadet 683-04173

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

Variations

Cub Cadet 683-04173-0637

USE 683-04173B-0637 FRAME ASM - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 777I22240

Graphic, Bypass Rod

$

$

Not available

2

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .5

$6.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04064

Nut, Flange Insert Lock, 1/4-20 GRF

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04065

Nut, Flange Insert Lock, 3/8-16 GRF

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 732-04035

Spring, Compression, 1.28 OD x 3.125 Lg

$9.99

$

In Stock, Qty 15

0

9

Cub Cadet 736-0222

Washer, Lock, Ext 1/4

$5.49

$

In Stock, only 3 left!

0

10

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 738-04058

Spacer, Shoulder, .38 x 1.0 x .70

$4.49

$

In Stock, Qty 7

0

12

Cub Cadet 747-04121A

Rod, Battery Holddown

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 783-04329A

Bracket, Seat Frame

Variations

Cub Cadet 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-04329A-4008

SEAT BRACKET - WINE RED (4008)

$

$

Not available

$

$

14

Cub Cadet 783-04710

Frame, Upper

Variations

Cub Cadet 783-04710-0716

FRAME, UPPER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777I22241

Graphic, Fuel

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 783-0693

Bracket, Axle

Variations

Cub Cadet 783-0693-0637

USE 783-0693A-0637 BRACKET-AX - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 783-0726D

Bracket, Pivot, Support RH
(Superseded to 783-0726E)

Variations

Cub Cadet 783-0726D-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0726D-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726D-0637

USE 783-0726E-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726D-0650

USE 783-0726E-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726D-0665

USE 783-0726E-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726D-0691

USE 783-0726E-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726D-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

17

Cub Cadet 783-0727C

Bracket, Pivot, Support LH
(Superseded to 783-0727D)

Variations

Cub Cadet 783-0727C-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727C-0637

USE 783-0727D-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727C-0650

USE 783-0727D-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727C-0665

USE 783-0727D-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727C-0691

USE 783-0727D-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727C-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

18

Cub Cadet 783-0728

Bracket, Pivot, Bar
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0
