GT 1554 VT (14VR13CK010) - Cub Cadet 54" Garden Tractor Frame & Electric PTO Clutch Parts Diagram

54" Garden Tractor

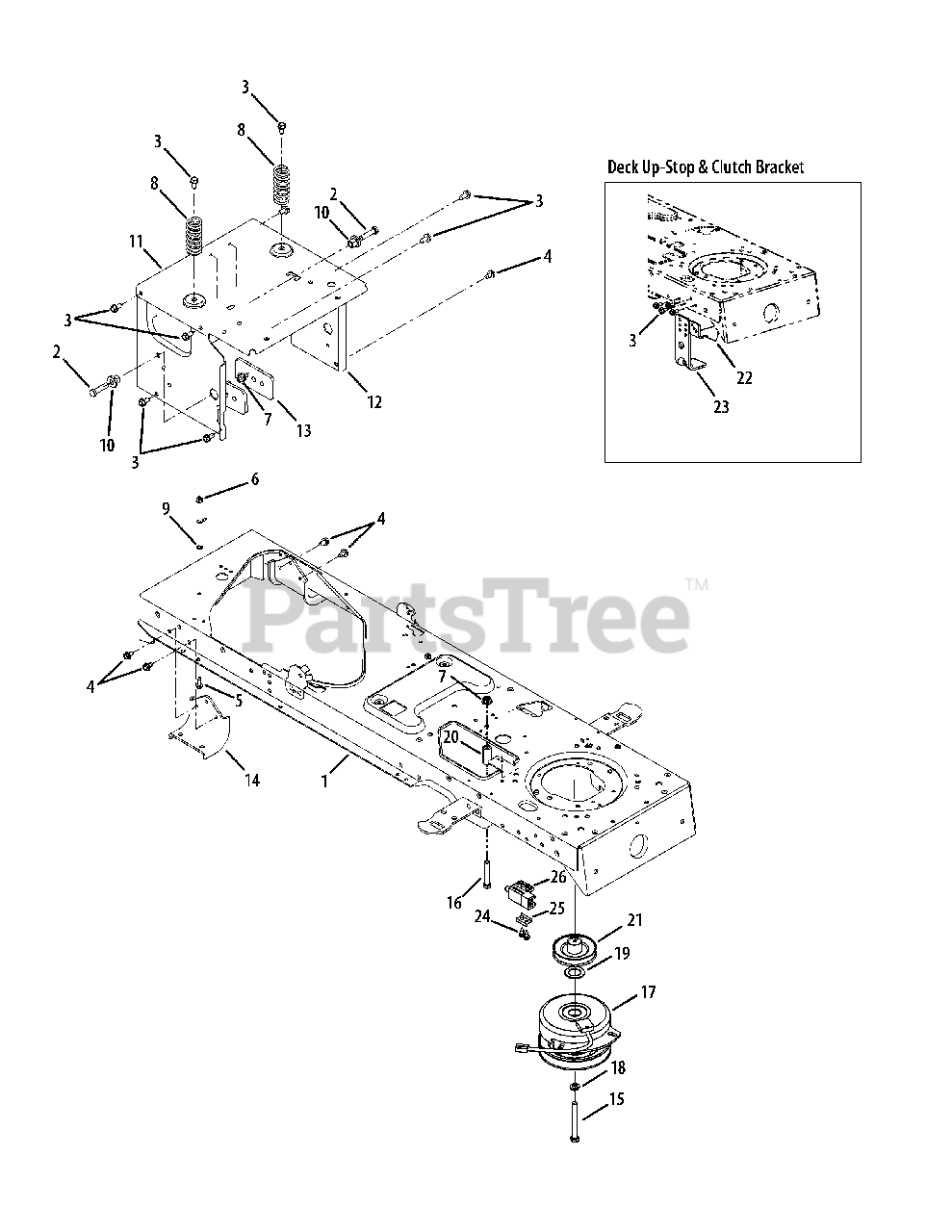

Frame & Electric PTO Clutch Parts Diagram

  • Title

1

Cub Cadet 683-04173B-0637

Frame Assembly, Lower

$

$

Not available

2

Cub Cadet 710-0520

Hex Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, 0.75

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0607

Screw, Hex Wash. Tapp, 5/16-18 x .5

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0642

Screw, Hex Wash., 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04064

Nut, Nylon Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 732-04561

Spring, Compression, 1.71 x .3735 x 2.38

$15.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 936-0222

Washer, Lock, Ext. 1/4
(Superseded to 736-0222)

$

$

Not available

10

Cub Cadet 738-04058

Shoulder Spacer

$4.49

$

In Stock, Qty 7

0

11

Cub Cadet 783-06089-0637

Bracket, Frame, Seat

$57.99

$

In Stock, only 1 left!

0

12

Cub Cadet 783-04811C-0637

Frame, Upper

$

$

Not available

13

Cub Cadet 783-05005-0637

Support Plate

$

$

Not available

14

Cub Cadet 783-0693-0637

Axle Bracket
(Superseded to 783-0693A-0637)

$22.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-04379A

Screw, Hex Cap , 7/16-20 x 3.5 GR5

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3011

Screw, 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 917-1774C

Clutch, PTO
(Superseded to 917-05001)

$586.99

$

In Stock, Qty 5

0

18

Cub Cadet 936-0171

Washer, Lock, 7/16, Regular Duty
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0277

Washer, Flat, 1.031 x 1.62 x .095

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 748-0415B

Spacer, 3/8 x 1.54

$6.99

$

In Stock, Qty 14

0

21

Cub Cadet 756-0978B

Electric PTO Engine Pulley

$61.99

$

In Stock, Qty 20+

0

22

Cub Cadet 783-04419B-0637

Clutch Bracket

$13.99

$

In Stock, Qty 6

0

23

Cub Cadet 783-04467-0637

Deck Up-stop Bracket

$34.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 910-0224

Screw, #10 - 16, x .500

$3.49

$

In Stock, only 1 left!

0

25

Cub Cadet 17962

Switch Mounting Plate

$4.99

$

In Stock, Qty 5

0

26

Cub Cadet 925-04039

Interlock Switch

$22.99

$

In Stock, Qty 20+

0
