GT-160 AE - Echo String Trimmer (AE Version) Fuel System Parts Diagram

String Trimmer

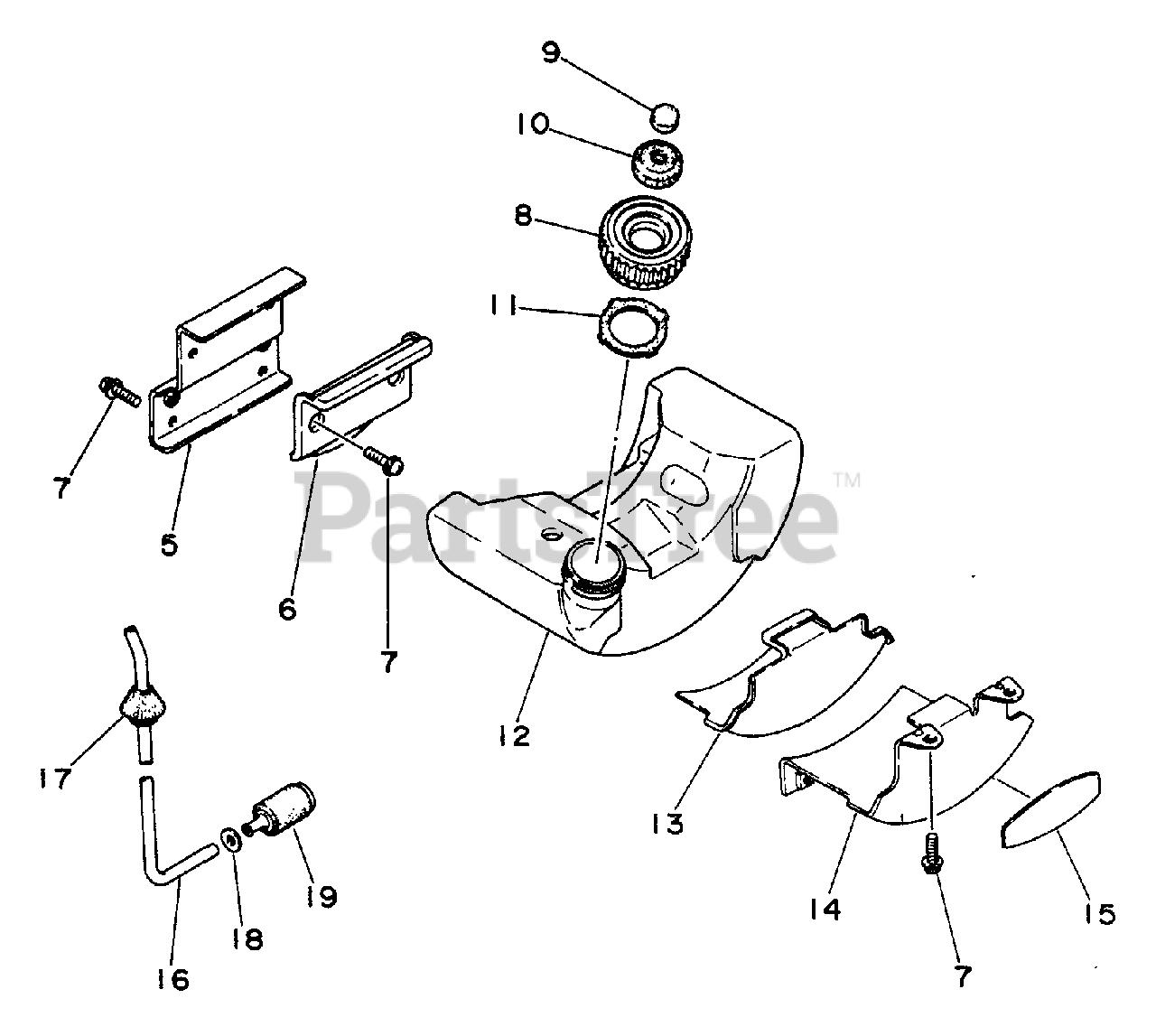

Fuel System Parts Diagram

  • Title

5

Echo 13191009220

BRACKET, FUEL TANK

$7.49

$

Usually ships in 2-4 days

0

6

Echo 13192009220

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

7

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

8

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Includes item 9

$

$

Not available

9

Echo 13131505020

FILTER, CHECK VALVE

$0.99

$

In Stock, Qty 8

0

10

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

11

Echo 13101604920

PACKING

$2.99

$

Usually ships in 2-4 days

0

12

Echo 13101009220

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

13

Echo 13192409220

CUSHION

$

$

Not available

14

Echo 13191809220

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

15

Echo 89011824030

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

------------------

PIPE, FUEL 3×6×135 BLACK

Note: ITEM NO LONGER AVAILABLE RePower BULK OPTION: 90015

$

$

Not available

17

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

18

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0
