GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Drive Clutch And Lift Group Parts Diagram

Garden Tractor

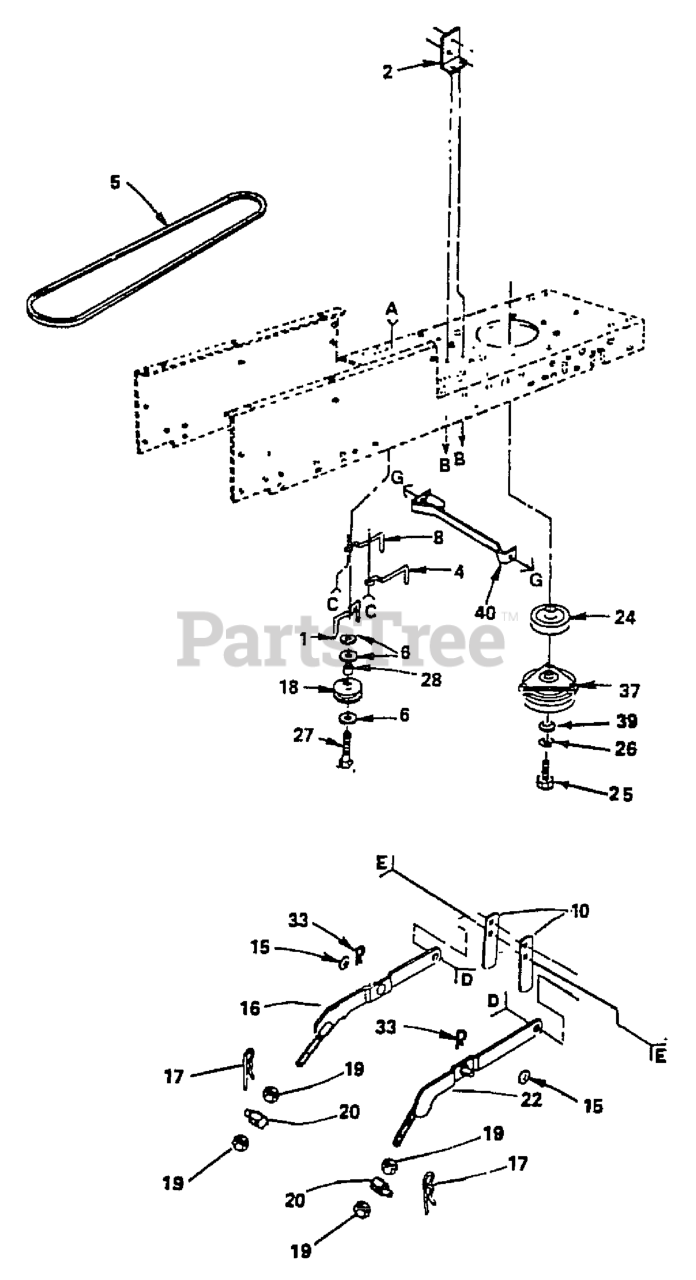

Drive Clutch And Lift Group Parts Diagram

  • Title

1

Husqvarna 532109070

BELT KEEPER LT NLA

$

$

Not available

2

Husqvarna 532108236

BRACKET LT

$

$

Not available

4

Husqvarna 532105730

KEEPER,BLT ENG LT

$

$

Not available

5

Husqvarna 532123796

BELT.GROUND.DRIVE

$

$

Not available

6

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532121218

KEEPER BELT ENGLH

$

$

Not available

10

Husqvarna 532121252

UPSTOP

$

$

Not available

15

Husqvarna 819171516

WASHER T
(Superseded to 596040101)

$3.49

$

In Stock, Qty 15

0

16

Husqvarna 532121599

LH SUSP ARM ASM

$

$

Not available

17

Husqvarna 532124960

SPRING H
(Superseded to 532009135)

$

$

Not available

18

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

19

Husqvarna 873220800

NUT 1/2 X 13
(Superseded to 596433401)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.49

$

In Stock, Qty 6

0

20

Husqvarna 532106308

TRUNION LFT LR LT
(Superseded to 532175689)

$

$

Not available

22

Husqvarna 532121598

RH SUSP ARM ASM

$

$

Not available

24

Husqvarna 532123795

ENGINE PULLEY
(Superseded to 532136906)

$

$

Not available

25

Husqvarna 871130768

Bolt, Hex 7/16-20 x 4 Grade B

$

$

Not available

26

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.49

$

In Stock, only 1 left!

0

27

Husqvarna 874760644

BOLT

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

28

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$5.99

$

In Stock, only 2 left!

0

37

Husqvarna 532108218

CLUTCH ELEC HYT
(Superseded to 532142600)

$

$

Not available

39

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 20+

0

40

Husqvarna 532109169

KIT RETAINER YTH
(Superseded to 532109172)

$

$

Not available
