GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Steering, Front Axle And Wheels Parts Diagram

Garden Tractor

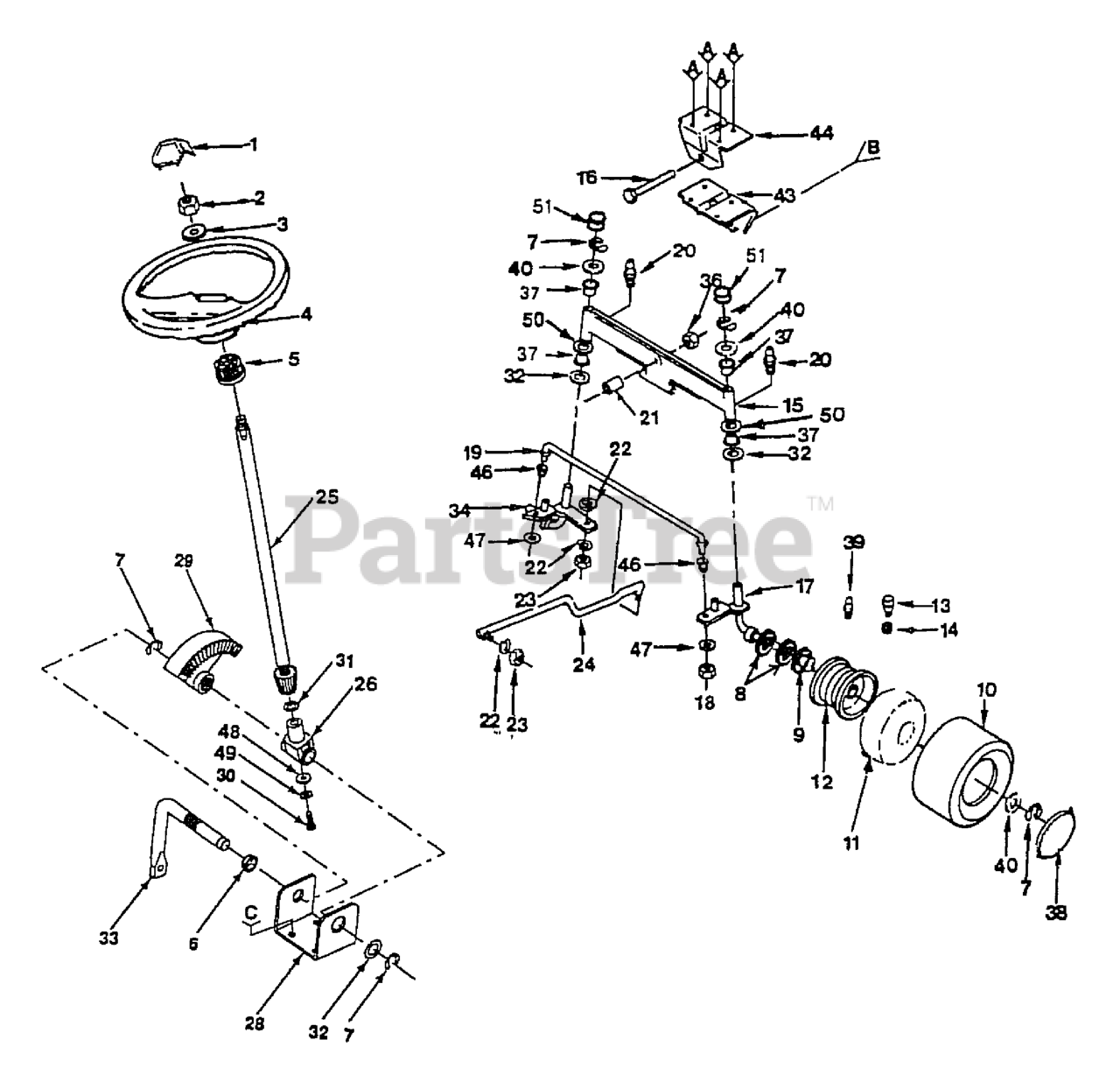

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

2

Husqvarna 873940800

NUT.HEX.1/2-20

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 532100712

WASHER

$

$

Not available

4

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

5

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$11.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109816

NYLINER T (7283A)

$5.99

$

In Stock, Qty 7

0

7

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

8

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532009040

BEARING.FLANGE

$9.49

$

In Stock, Qty 20+

0

10

Husqvarna 532106222

TIRE HEAVY DUTY
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532059904

TUBE.5.3/4.5/6

$22.99

$

In Stock, Qty 8

0

12

Husqvarna 532125102

RIM.ASM.6X4.5.FRONT.WHITE
(Superseded to 532106732)

Note: (Inc. 2 each Key # 9); STANDARD HARDWARE-PURCHASE LOCALLY

$102.99

$

In Stock, Qty 20+

0

13

Husqvarna 532065139

VALVE STEM LT

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 7

0

15

Husqvarna 532108075

AXLE ASSY T

$

$

Not available

16

Husqvarna 874761060

BOLT LT

$

$

Not available

17

Husqvarna 532130459

SPINDLE

$

$

Not available

18

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

19

Husqvarna 532130467

TIE ROD
(Superseded to 532170162)

$102.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$5.99

$

In Stock, Qty 10

0

21

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

22

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available

24

Husqvarna 532130468

LINK.DRAG.SOL.BALL JT.20.064

$102.99

$

In Stock, only 2 left!

0

25

Husqvarna 532128762

SHAFT STR
(Superseded to 532156544)

$74.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 12

0

28

Husqvarna 532124036

BRKT,STEERING
(Superseded to 531152201)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532124034

GEAR,SECTOR
(Superseded to 532136874)

$79.99

$

In Stock, Qty 7

0

30

Husqvarna 871070410

SCREW,SPECIAL
(Superseded to 532165857)

$3.49

$

In Stock, only 1 left!

0

31

Husqvarna 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 10

0

32

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532127501

SHAFT PITMAN
(Superseded to 532156365)

$

$

Not available

34

Husqvarna 532130460

SPINDLE
(Superseded to 532156483)

$26.99

$

In Stock, only 2 left!

0

36

Husqvarna 873601000

LOCK NUT
(Superseded to 873681000)

$

$

Not available

37

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532124577

COVER.FRONT.WHEEL

$

$

Not available

39

Husqvarna 532000278

FITTING LT.

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532105664

SUP-SADDLE FRT LT

$

$

Not available

44

Husqvarna 532105663

SUPPORT-SADDLE LT NLA

$

$

Not available

46

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 532126684

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, Qty 12

0

49

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

50

Husqvarna 819272016

WASHER

$4.99

$

In Stock, Qty 7

0

51

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0
