GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Transaxle And Rear Wheel Parts Diagram

Garden Tractor

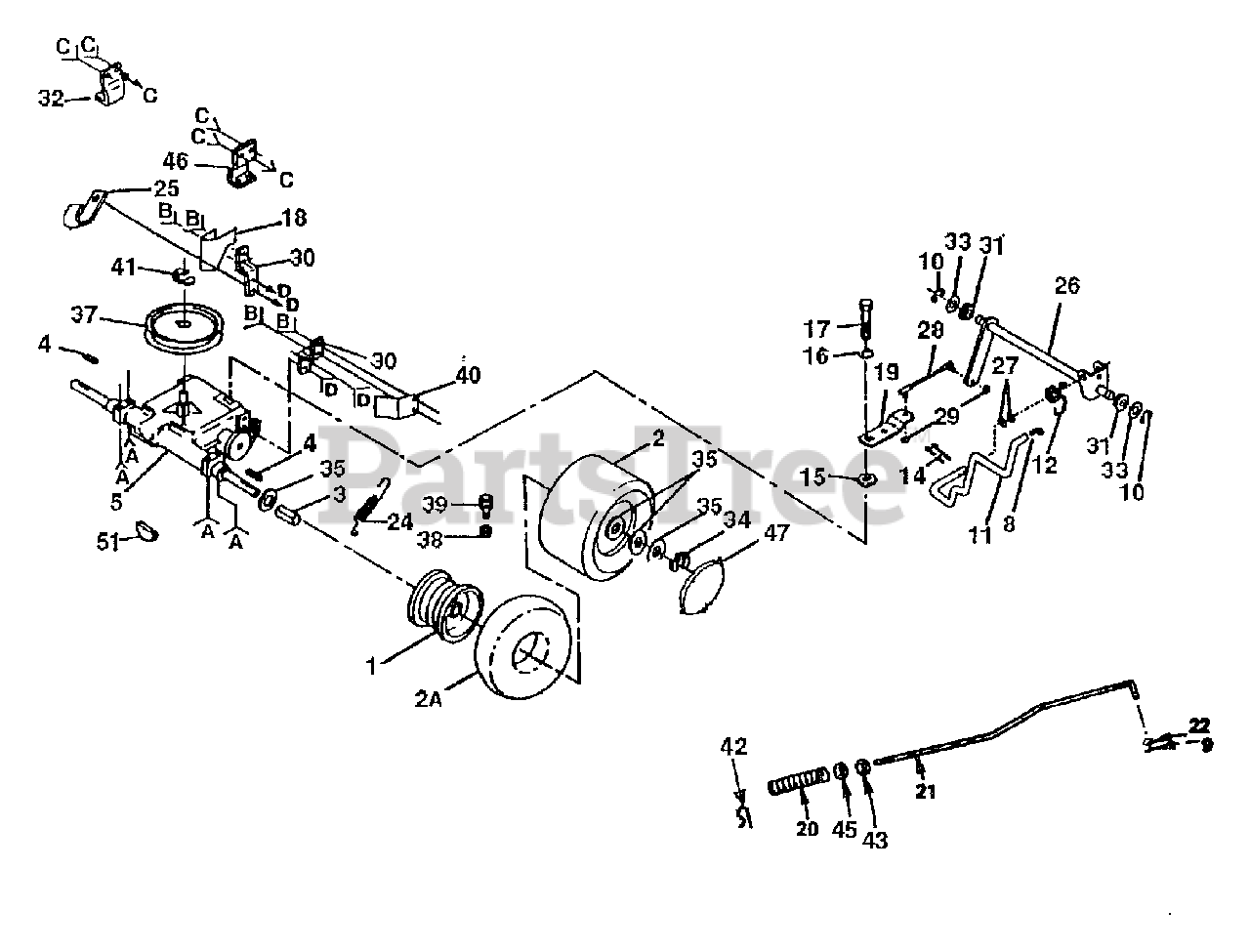

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 532124999

Rim Assembly, Rear
(Superseded to 532106108)

$145.99

$

In Stock, only 1 left!

0

2

Husqvarna 532124106

Tire
(Superseded to 532138756)

$194.99

$

Usually ships in 3-10 days

0

2A

Husqvarna 532007154

Tube, Tire

$80.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532108097

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532124762

Key, Square 1/4 x 2
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532123797

Transaxle, 6 Speed, Peerless Model No. 820-016

$

$

Not available

8

Husqvarna 532121274

Knob, Control

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 812000008

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532123781

Rod, Shifter
(Superseded to 532141002)

$

$

Not available

12

Husqvarna 532123782

Spring, Torsion

$

$

Not available

14

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Gauge

$

$

Not available

17

Husqvarna 871040412

Bolt, Hex 1/4-28 x 3/4 x 16 Grade 8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532123791

Keeper, Belt, Transaxle, L.H.

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532123794

Arm, Shift

$

$

Not available

20

Husqvarna 532126909

Spring, Rod, Brake

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532123786

Rod, Brake

$

$

Not available

22

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

25

Husqvarna 532124996

Clip
(Superseded to 532002751)

$

$

Not available

26

Husqvarna 532123772

Shaft, Arm Shifter

$

$

Not available

27

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Gauge
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 532123793

Rod, Tie
(Superseded to 532166230)

$28.99

$

Usually ships in 3-10 days

0

29

Husqvarna 873530400

Nut 1/4-28
(Superseded to 873610400)

$

$

Not available

30

Husqvarna 532123787

Strap, Torque

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532071208

Bushing, Steering Rod

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532123780

Bracket, Transaxle, L.H.

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 819212016

Washer 21/32 x 1-1/4 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 812000053

E-Ring

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532123800

Washer 1-1/32 x 1-5/8 x 16 Gauge

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532121327

Pulley, Transaxle

$

$

Not available

38

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 20+

0

40

Husqvarna 532123792

Keeper, Belt, Transaxle, R.H.

$

$

Not available

41

Husqvarna 812000004

Ring, Retainer

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

43

Husqvarna 873350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

45

Husqvarna 873800600

Locknut, Hex Washer Insert 3/8-1
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532123776

Bracket, Transaxle, R.H.

$

$

Not available

47

Husqvarna 532124579

Cover, Wheel

$

$

Not available

51

Husqvarna 532125096

Key, Woodruff

$4.99

$

Usually ships in 3-10 days

0
