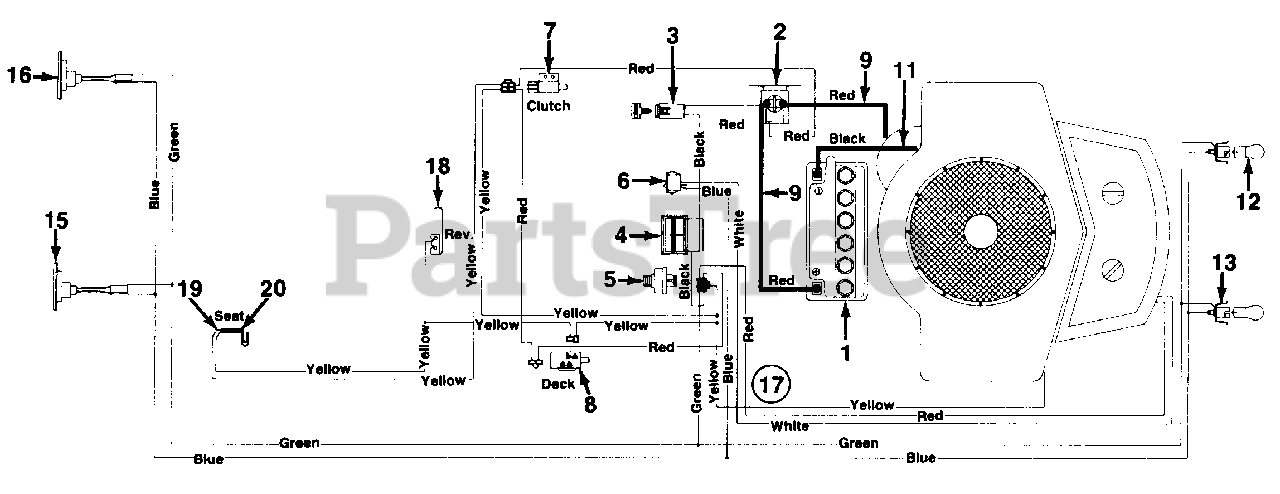

GT-180 (141-846H190) - White Outdoor 46" Garden Tractor (1991) Electrical System Parts Diagram

46" Garden Tractor

Electrical System Parts Diagram

  • Title

1

White Outdoor 725-1430

Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

2

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

3

White Outdoor 725-1625

Fuse 7.5 AMP

$7.99

$

Usually ships in 3-6 days

0

4

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

5

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 15

0

6

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

7

White Outdoor 725-3169A

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$22.99

$

In Stock, Qty 20+

0

8

White Outdoor 725-0465A

Safety Switch
(Superseded to 925-0465A)

Note: (PTO)

$28.99

$

In Stock, only 2 left!

0

9

White Outdoor 725-0561

Electric Wire 14" Lg.
(Superseded to 629-0705)

$

$

Not available

11

White Outdoor 725-0996

Ground Wire 7.5" Lg.
(Superseded to 929-0703)

$

$

Not available

12

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-1058A

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

White Outdoor 725-1380

Taillight Harness

$

$

Not available

15

725-3018

Taillight Ass'y.

$

$

Not available

16

White Outdoor 725-3020

Taillight Bulb
(Superseded to 925-3020)

$

$

Not available

17

White Outdoor 629-0035

Wire Harness

$

$

Not available

18

White Outdoor 725-0759

Spring Switch
(Superseded to 753-0579)

$

$

Not available

19

White Outdoor 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$5.99

$

In Stock, Qty 8

0

20

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$7.99

$

In Stock, Qty 8

0

725-1539

Ground Wire

$

$

Not available
