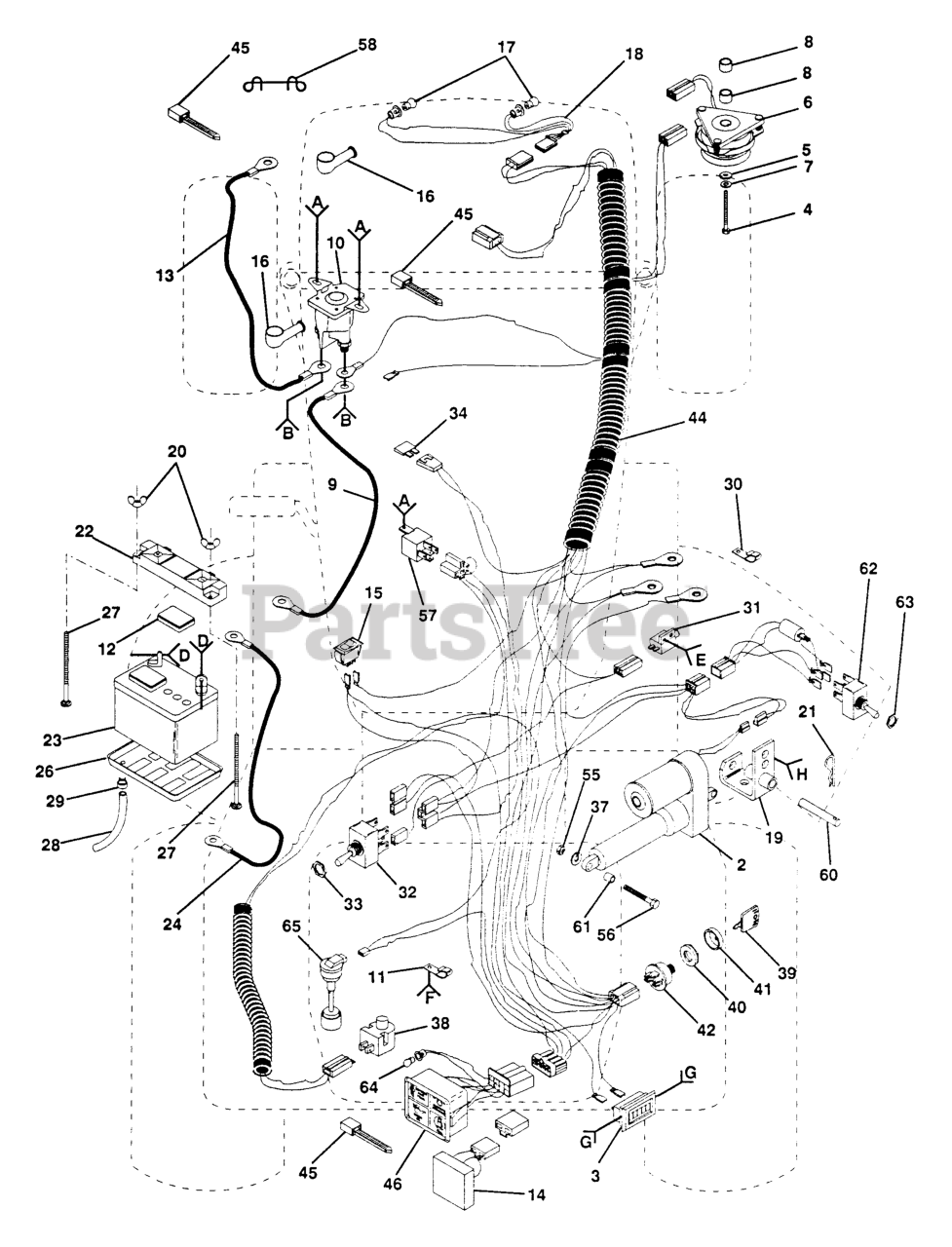

GT 180 (954000211-B) - Husqvarna Garden Tractor (1990-11) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

2

Husqvarna 532124371

ELECT ACTUATOR

$

$

Not available

3

Husqvarna 532110940

HOUR METER T
(Superseded to 532169642)

$

$

Not available

4

Husqvarna 871130724

Bolt, Hex 7/16-20 x 1-1/2 Grade 8

$

$

Not available

5

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109550

ELECTRIC CLUTCH T

$

$

Not available

7

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 532106367

SPACER-CLUTCH GT

$

$

Not available

9

Husqvarna 532124770

CABLE-BATTERY YTV
(Superseded to 532004799)

$17.99

$

In Stock, only 2 left!

0

10

Husqvarna 532109081

SOLENOID KIT
(Superseded to 532146154)

$22.99

$

In Stock, Qty 20+

0

11

Husqvarna 532004171

CLIP T
(Superseded to 532124967)

$

$

Not available

12

Husqvarna 532121264

CAP BATTERY NLA

$

$

Not available

13

Husqvarna 532005115

STARTER CABLE GT
(Superseded to 532005114)

$

$

Not available

14

Husqvarna 532127385

SENSOR LOW VOLTAGE

$

$

Not available

15

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

16

Husqvarna 532124783

TERMINAL COVER
(Superseded to 532131563)

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 532124893

BULB-LIGHT T
(Superseded to 532004152)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532110859

HARNESS T

$

$

Not available

19

Husqvarna 532124867

BRACKET T

$

$

Not available

20

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

21

Husqvarna 532004940

SPRING *

$

$

Not available

22

Husqvarna 532102476

TERMINAL GRD YTV
(Superseded to 532150109)

$

$

Not available

23

Husqvarna 532121537

BATTERY
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

24

Husqvarna 532124773

CABLE T
(Superseded to 532004207)

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 872240460

BOLT

$

$

Not available

28

Husqvarna 532100541

BATT DRAIN TUBE T
(Superseded to 532007697)

$

$

Not available

29

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

30

Husqvarna 532100207

CLIP GTV

$

$

Not available

31

Husqvarna 532104445

SWITCH-INTER. GT

$17.99

$

In Stock, only 1 left!

0

32

Husqvarna 532126018

SWITCH,PTO

$

$

Not available

33

Husqvarna 532124932

HEX NUT T
(Superseded to 532004022)

$

$

Not available

34

Husqvarna 532006347

FUSE *
(Superseded to 532108824)

$

$

Not available

37

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$17.99

$

In Stock, Qty 16

0

39

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

40

Husqvarna 532109788

NUT
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

41

Husqvarna 532109787

BEZEL.SWITCH.IGNITION
(Superseded to 584446901)

$

$

Not available

42

Husqvarna 532125104

SWITCH
(Superseded to 532365402)

$31.99

$

In Stock, only 2 left!

0

44

Husqvarna 532124047

HARNESS IGNITION

$

$

Not available

45

Husqvarna 532124756

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532126519

LIGHT PACKAGE

$

$

Not available

55

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

56

Husqvarna 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.49

$

In Stock, Qty 18

0

57

Husqvarna 532109748

RELAY.ASSY.T

$22.99

$

In Stock, only 3 left!

0

58

Husqvarna 532121465

TIE WIRE

$

$

Not available

60

Husqvarna 532007085

PIN-ACTUATOR T

$

$

Not available

61

Husqvarna 532005950

TUBE GT

$

$

Not available

62

Husqvarna 532126289

LIFT,SW WIRING

$

$

Not available

63

Husqvarna 532007319

LOCKWASHER

$

$

Not available

64

Husqvarna 532110143

BULB LIGHT T

$

$

Not available

65

Husqvarna 532126487

SENSOR, LOW FUEL

$

$

Not available

Husqvarna 532101539

SHEET INSTR LT

$

$

Not available

Husqvarna 532101572

INSTRUCTION SHEET

$

$

Not available

Husqvarna 532121549

DECAL NLA

$

$

Not available

Husqvarna 532127458

Operator's Manual (English)

$

$

Not available

Husqvarna 532127459

MANUAL F.T.

$

$

Not available

Husqvarna 532123469

Owner's Manual, Kohler, Engine (English)

$

$

Currently unavailable

Husqvarna 532123470

Owner's Manual, Kohler, Engine (French)

$

$

Currently unavailable
