GT 180 (954000211-B) - Husqvarna Garden Tractor (1990-11) Frame, Fender And Drawbar Parts Diagram

Garden Tractor

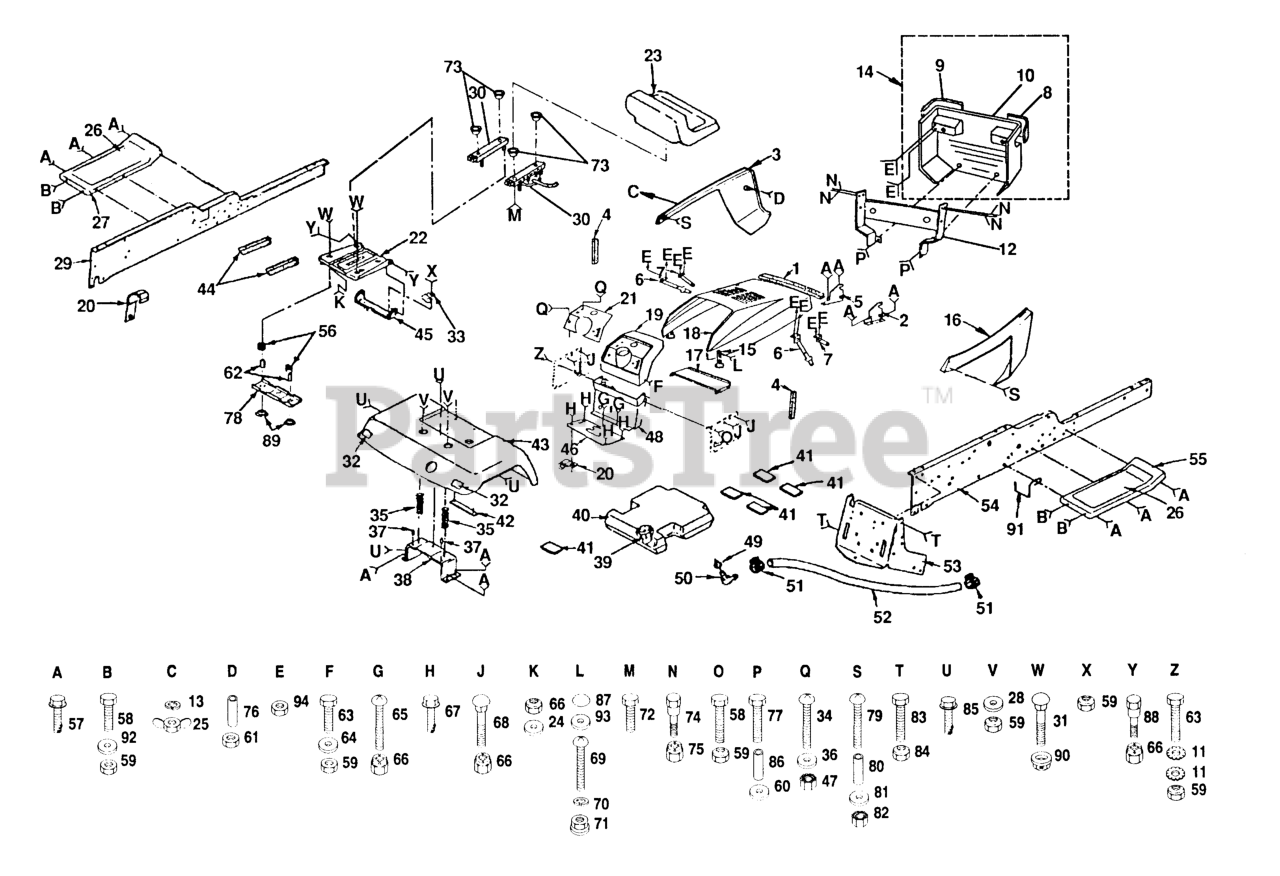

Frame, Fender And Drawbar Parts Diagram

  • Title

1

Husqvarna 532109458

FOAM STRIP T

$

$

Not available

2

Husqvarna 532110853

SUPPORT RH YTH

$

$

Not available

3

Husqvarna 532125009

PANEL,SIDE LH

$

$

Not available

4

Husqvarna 532106088

FOAM STRIP T

$

$

Not available

5

Husqvarna 532110852

SUPPORT LH YTH

$

$

Not available

6

Husqvarna 532106784

STRAP ASSY LT

$

$

Not available

7

Husqvarna 532104618

STRAP ASSY LT

$

$

Not available

8

Husqvarna 532124251

LENS RH
(Superseded to 532157069)

$

$

Not available

9

Husqvarna 532124250

LENS LH
(Superseded to 532157068)

$

$

Not available

10

Husqvarna 532127325

GRILL
(Superseded to 532157236)

$

$

Not available

11

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532124574

SUPPORT ASS'Y

$

$

Not available

13

Husqvarna 811030400

LOCKWASHER GT
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532127320

GRILL COMPLETE
(Superseded to 532157236)

Note: (Includes Keys 8, 9, and 10)

$

$

Not available

15

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532125008

PANEL,SIDE RH
(Superseded to 532140677)

$

$

Not available

17

Husqvarna 532007985

BATTERY SUPT GT

$

$

Not available

18

Husqvarna 532125007

HOOD
(Superseded to 532125454)

$

$

Not available

19

Husqvarna 532124182

DASHBOARD
(Superseded to 532140452)

$

$

Not available

20

Husqvarna 532004171

CLIP T
(Superseded to 532124967)

$

$

Not available

21

Husqvarna 532124772

DASHPLATE
(Superseded to 532123952)

$

$

Not available

22

Husqvarna 532124294

PAN SEAT

$

$

Not available

23

Husqvarna 532124187

SEAT
(Superseded to 532126826)

$

$

Not available

24

Husqvarna 819111610

WASHER

$

$

Not available

25

Husqvarna 873490400

NUT.WING.LCK.NYL.NOTCH.1/4-20
(Superseded to 532146525)

$

$

Not available

26

Husqvarna 532108256

PAD FOOTREST T

$

$

Not available

27

Husqvarna 532124899

ROLL PIN NLA

$

$

Not available

28

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

29

Husqvarna 532110893

RAIL FRAME T
(Superseded to 532151630)

$

$

Not available

30

Husqvarna 532124428

SLIDE SET,SEAT

$

$

Not available

31

Husqvarna 872170410

Bolt, Carriage 1/4-20 x 1-1/4

$

$

Not available

32

Husqvarna 532106202

REFLECTOR-TAIL YT

$

$

Not available

33

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

34

Husqvarna 874180512

Screw, Mach. Hd. 5/16-18 x 3/4

$

$

Not available

35

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

36

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532105531

NUT-PUSH YT

$

$

Not available

38

Husqvarna 532105509

BRACKET-FENDER YT
(Superseded to 532183569)

$28.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532123549

GAS CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 10

0

40

Husqvarna 532126261

FUEL TANK W/ SENSOR

$

$

Not available

41

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

42

Husqvarna 532105511

STRAP-FENDER YT
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532124927

FENDER
(Superseded to 532121642)

$

$

Not available

44

Husqvarna 532121251

STRIP FORM

$

$

Not available

45

Husqvarna 532126656

BRKT,SEAT PIVOT

$

$

Not available

46

Husqvarna 532124837

106042X016
(Superseded to 532106042)

$

$

Not available

47

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

48

Husqvarna 532104608

DASH ASSY GT

$

$

Not available

49

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532124951

FUEL TANK STEM GT
(Superseded to 532008710)

$

$

Not available

51

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 14

0

52

Husqvarna 532124703

HOSE
(Superseded to 532008542)

$

$

Not available

53

Husqvarna 532007982

DRAWBAR GT
(Superseded to 532175282)

$

$

Not available

54

Husqvarna 532110892

RAIL FRAME T
(Superseded to 532150383)

$

$

Not available

55

Husqvarna 532124914

PAD,SPACER
(Superseded to 532145243)

$

$

Not available

56

Husqvarna 532123740

SPRING COMPRESSED

$4.99

$

In Stock, only 2 left!

0

57

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

58

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

59

Husqvarna 873680600

LOCKNUT

$

$

Not available

60

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

61

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

63

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

64

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

65

Husqvarna 874180512

Screw, Mach. Cr. Thrd. 5/16-18 x 3/4

$

$

Not available

66

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

67

Husqvarna 817240408

SCREW

$

$

Not available

68

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

69

Husqvarna 874191008

SCREW
(Superseded to 871191008)

$

$

Not available

70

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, only 3 left!

0

71

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

72

Husqvarna 817190516

Screw, Hex 5/16-18 x 1

$

$

Not available

73

Husqvarna 532124427

SPACER

$

$

Not available

74

Husqvarna 532123481

BOLT T
(Superseded to 532007605)

$

$

Not available

75

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

76

Husqvarna 532001260

SPACER NLA

$

$

Not available

77

Husqvarna 874760440

BOLT

$

$

Not available

78

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0

79

Husqvarna 874981020

RP SCREW
(Superseded to 874981024)

$5.99

$

In Stock, Qty 12

0

80

Husqvarna 532007206

SPACER LT

$5.99

$

In Stock, Qty 5

0

81

Husqvarna 819070818

WASHER

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$

$

Not available

83

Husqvarna 874760716

BOLT
(Superseded to 596238601)

$3.49

$

Usually ships in 3-10 days

0

84

Husqvarna 873680700

Locknut 7/16-14

$

$

Not available

85

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532121235

SPACER

$

$

Not available

87

Husqvarna 532110356

SNAP CAP LT

$

$

Not available

88

Husqvarna 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$4.99

$

In Stock, Qty 16

0

89

Husqvarna 532121248

BUSHING

$

$

Not available

90

Husqvarna 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 532105500

BELT RETAINER GT

$

$

Not available

92

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

93

Husqvarna 532110357

WASHER LT

$

$

Not available

94

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532108813

DECAL HYT

$

$

Not available

Husqvarna 532124484

DECAL,FENDER HUSQ

Note: (Rear Fender)

$

$

Not available

Husqvarna 532120822

DECAL

$

$

Not available

Husqvarna 532101892

DECAL

$

$

Not available

Husqvarna 532106868

DECAL T

Note: (Under footrest)

$

$

Not available

Husqvarna 532124480

DECAL,HOOD LH NLA

$

$

Not available

Husqvarna 532124481

DECAL,HOOD RH

$

$

Not available

Husqvarna 532124483

DECAL,GRILL HUSKY

$

$

Not available

Husqvarna 532124488

DECAL,HOOD

$

$

Not available
