GT 180 (954000211-B) - Husqvarna Garden Tractor (1990-11) Mower Parts Diagram

Garden Tractor

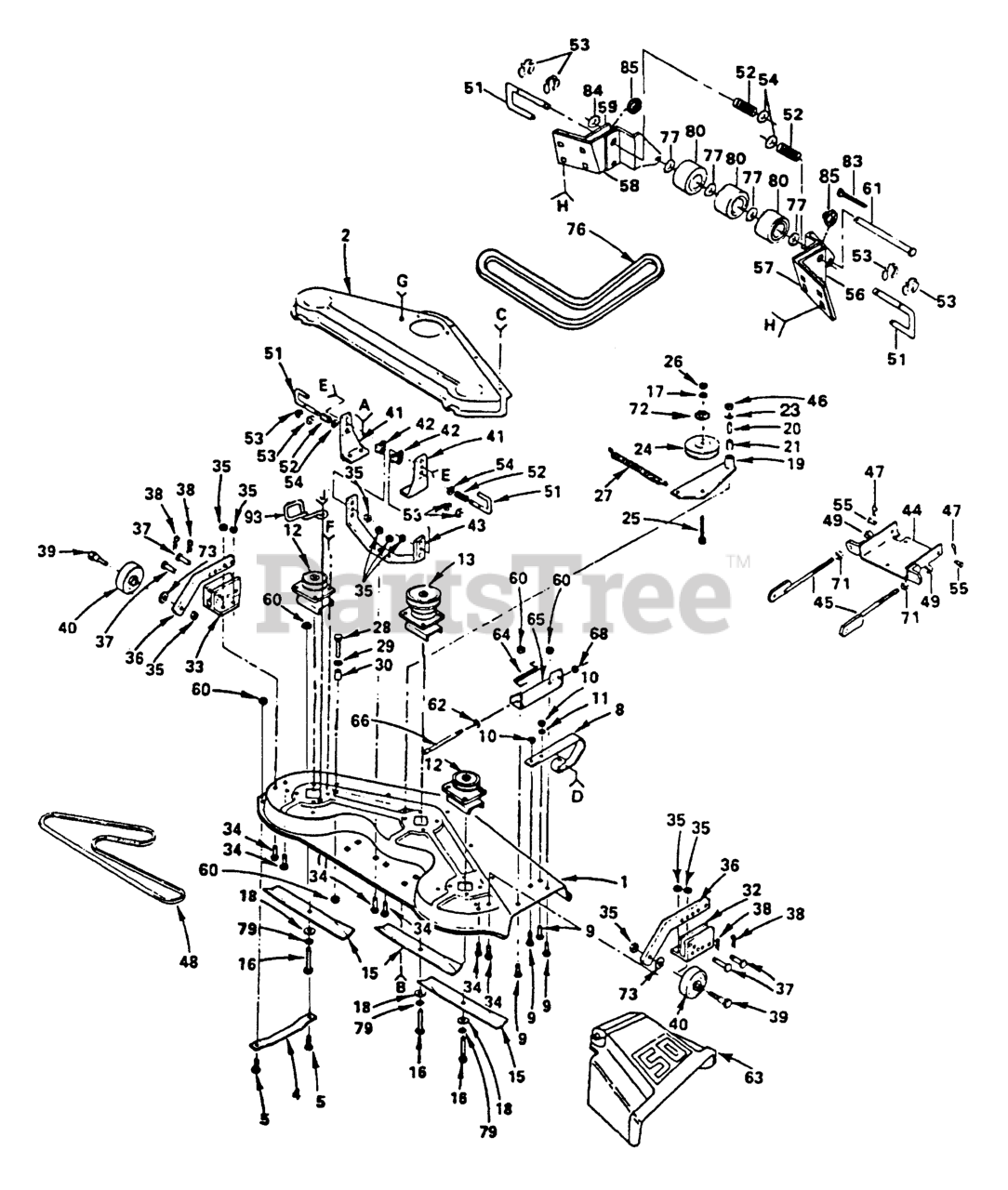

Mower Parts Diagram

  • Title

1

Husqvarna 532121664

HOUSING
(Superseded to 532123760)

$

$

Not available

2

Husqvarna 532121811

CVR DRIVE DECK

$

$

Not available

4

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, Qty 9

0

5

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532120449

RUNNER T
(Superseded to 532136320)

$

$

Not available

9

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 532124949

LOCKNUT

$

$

Not available

11

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 532121658

JACKSHAFT YT
(Superseded to 532136819)

$

$

Not available

13

Husqvarna 532121657

JACKSHAFT.PRIMARY

$

$

Not available

15

Husqvarna 532121798

BLADE.50".STANDARD.LIFT

$22.99

$

In Stock, only 2 left!

0

16

Husqvarna 874610624

BOLT.3/8-24X1-1/2

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532124685

ARM ASSY GT
(Superseded to 532674213)

$

$

Not available

20

Husqvarna 532124702

BEARING ASSY M
(Superseded to 532674308)

$

$

Not available

21

Husqvarna 532007835

BEARING ASSY M
(Superseded to 532674308)

$

$

Not available

23

Husqvarna 819111816

Washer 11/32 x 1-1/8 x 16 Gauge

$

$

Not available

24

Husqvarna 532102403

IDLER-FLAT T

$45.99

$

In Stock, only 1 left!

0

25

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

26

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532104361

SPRING T

$

$

Not available

28

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 532008438

SPACER SPLIT LT

$

$

Not available

32

Husqvarna 532105448

GUAGE WHL BRKT GT

$

$

Not available

33

Husqvarna 532105449

GAUGE WHL BRKT GT

$

$

Not available

34

Husqvarna 872240606

Bolt, Carriage 3/8-16 x 3/4

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 873680600

LOCKNUT

$

$

Not available

36

Husqvarna 532105453

GUAGE WHL BAR GT

$

$

Not available

37

Husqvarna 532005565

CLEVIS PIN T
(Superseded to 532139031)

$

$

Not available

38

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

39

Husqvarna 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532105455

WHEEL.GAUGE.BLK.4.93

$20.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532105433

SUSP BRKT GT

$

$

Not available

42

Husqvarna 532110237

SPACER GT

$

$

Not available

43

Husqvarna 532105434

SUSP BRACE GT

$

$

Not available

44

Husqvarna 532109778

PLATE

$

$

Not available

45

Husqvarna 532109771

BRACKET NLA

$

$

Not available

46

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$

$

Not available

47

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 532003703

V-BELT M

$85.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873680800

NUT LTV
(Superseded to 596433401)

$3.49

$

In Stock, Qty 6

0

51

Husqvarna 532105435

RELEASE PIN GT

$

$

Not available

52

Husqvarna 532003720

SPRING.COMPRESSION

$

$

Not available

53

Husqvarna 812000039

KLIP RING

$

$

Not available

54

Husqvarna 819171612

WASHER GT
(Superseded to 596040101)

$3.49

$

In Stock, Qty 15

0

55

Husqvarna 532105440

CLEVIS PIN GT

$

$

Not available

56

Husqvarna 532105458

BRACKET T

$

$

Not available

57

Husqvarna 532109773

BRACKET T

$

$

Not available

58

Husqvarna 532110997

BRACKET T

$

$

Not available

59

Husqvarna 532120000

BRACKET T

$

$

Not available

60

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

61

Husqvarna 532109776

PIVOT PIN T

$

$

Not available

62

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$

$

Not available

63

Husqvarna 532110509

SHIELD.DEFLECTOR.MOWER.50"BLK.

$

$

Not available

64

Husqvarna 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, Qty 16

0

65

Husqvarna 532109743

BRACKET T
(Superseded to 531155201)

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532106735

ROD-HINGE T

$11.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

71

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

72

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

73

Husqvarna 819171512

Washer 17/32 x 15/16 x 12 Gauge

$

$

Not available

76

Husqvarna 532110884

BELT-V.93.5.MOWER

$51.99

$

In Stock, only 1 left!

0

77

Husqvarna 819151610

WASHER T
(Superseded to 596040101)

$3.49

$

In Stock, Qty 15

0

79

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

80

Husqvarna 532109729

ROLLER T

$

$

Not available

83

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, only 1 left!

0

84

Husqvarna 819151616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 15

0

85

Husqvarna 532120135

SPACER T

$

$

Not available

93

Husqvarna 532121352

BELT RETIANER

$

$

Not available

Husqvarna 532127594

MOWER DECK ASSY
(Superseded to 532138513)

$

$

Not available

Husqvarna 532123247

DECAL V BELT

$

$

Not available

Husqvarna 532121349

DECAL WARNING

$

$

Not available

Husqvarna 532003713

DECAL M

$

$

Not available

Husqvarna 532105185

DECAL-INST YT

$

$

Not available
