GT 180 (954000211-B) - Husqvarna Garden Tractor (1990-11) Steering Parts Diagram

Garden Tractor

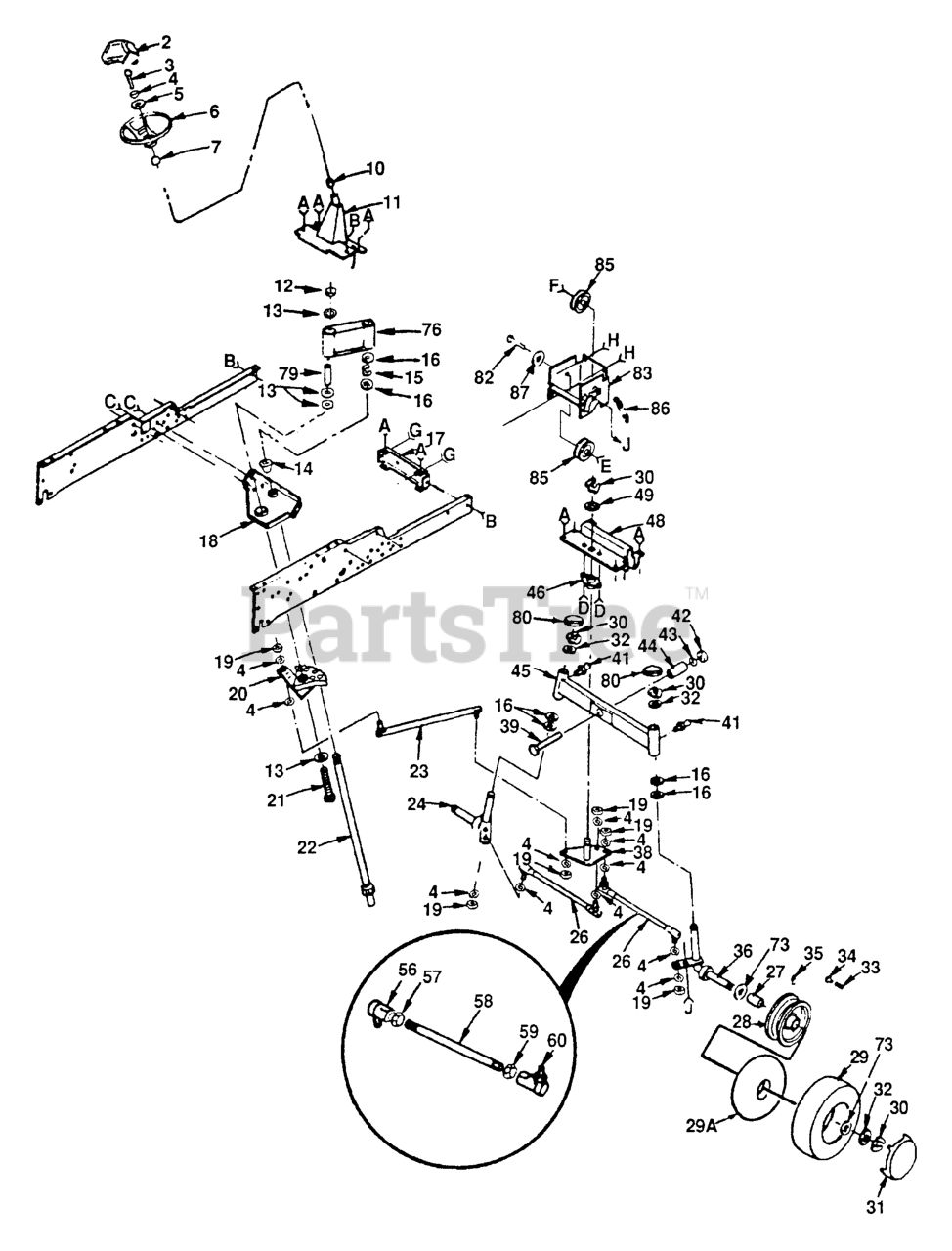

Steering Parts Diagram

  • Title

2

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

3

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

4

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 819133808

WASHER T
(Superseded to 819133812)

$

$

Not available

6

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

7

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$11.99

$

In Stock, Qty 20+

0

10

Husqvarna 532009038

BEARING T

$

$

Not available

11

Husqvarna 532101274

SUPPORT ASSY T

$

$

Not available

12

Husqvarna 873680800

NUT LTV
(Superseded to 596433401)

$3.49

$

In Stock, Qty 6

0

13

Husqvarna 819172610

WASHER GT
(Superseded to 532126881)

$

$

Not available

14

Husqvarna 532104239

BEARING-FLANGE GT

$13.99

$

In Stock, Qty 7

0

15

Husqvarna 812000034

Klip Ring

$

$

Not available

16

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532005213

FRAME BRACKET GT

$

$

Not available

18

Husqvarna 532102439

BRACKET ASSY GT
(Superseded to 532104240)

$

$

Not available

19

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available

20

Husqvarna 532120424

SECTOR T

$

$

Not available

21

Husqvarna 874780880

Bolt, Hex 1/2-13 x 5 Grade 5

$

$

Not available

22

Husqvarna 532104591

SHAFT STEERING GT

$

$

Not available

23

Husqvarna 532110497

DRAG LINK T

$

$

Not available

24

Husqvarna 532121168

SPINDLE LH

$

$

Not available

26

Husqvarna 532121159

DRAG LINK

Note: (Inc. Key #56-60)

$

$

Not available

27

Husqvarna 532009040

BEARING.FLANGE

$9.49

$

In Stock, Qty 20+

0

28

Husqvarna 532124864

RIM ASSY 8" FRT
(Superseded to 532148736)

$125.99

$

In Stock, Qty 20+

0

29

Husqvarna 532106230

TIRE HEAVY DUTY
(Superseded to 532122075)

$62.99

$

In Stock, Qty 17

0

29A

Husqvarna 532008134

TUBE.16X6.5/7.5-8

$56.99

$

Usually ships in 3-10 days

0

30

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

31

Husqvarna 532124578

CAP,HUB REAR

$

$

Not available

32

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 11

0

34

Husqvarna 532065139

VALVE STEM LT

$6.49

$

In Stock, Qty 20+

0

35

Husqvarna 532000278

FITTING LT.

$6.99

$

In Stock, Qty 20+

0

36

Husqvarna 532121167

SPINDLE RH

$

$

Not available

38

Husqvarna 532108137

BELLCRANK T

$

$

Not available

39

Husqvarna 874781044

Bolt, Hex 5/8-11 x 2-3/4 Grade 5

$

$

Not available

41

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$5.99

$

In Stock, Qty 10

0

42

Husqvarna 873221000

NUT X

$

$

Not available

43

Husqvarna 810041000

Washer, Lock 5/8

$

$

Not available

44

Husqvarna 532005298

TUBE-PIVOT AXLE T

$

$

Not available

45

Husqvarna 532124868

FRONT AXLE T
(Superseded to 532677999)

$

$

Not available

46

Husqvarna 532005292

BELL CRANK BUSH T
(Superseded to 532140342)

$

$

Not available

48

Husqvarna 532005284

AXLE BRACKET GT

$

$

Not available

49

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Gauge

$9.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532121161

JOINT TIE ROD
(Superseded to 532109851)

$37.99

$

Usually ships in 3-10 days

0

57

Husqvarna 873700600

NUT

$9.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532121162

ROD TIE

$

$

Not available

59

Husqvarna 873360600

NUT

$9.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532121160

JOINT.RH

$26.99

$

In Stock, only 1 left!

0

73

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

76

Husqvarna 532121177

COLLAR

$

$

Not available

79

Husqvarna 532120199

TUBE T

$

$

Not available

80

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

82

Husqvarna 874760632

BOLT
(Superseded to 874930632)

$9.49

$

Usually ships in 3-10 days

0

83

Husqvarna 532120542

IDLER BRKT T

$

$

Not available

85

Husqvarna 532124858

IDLER-INSIDE T

$

$

Not available

86

Husqvarna 532007190

SPRING T

$

$

Not available

87

Husqvarna 819133808

WASHER T
(Superseded to 819133812)

$

$

Not available
