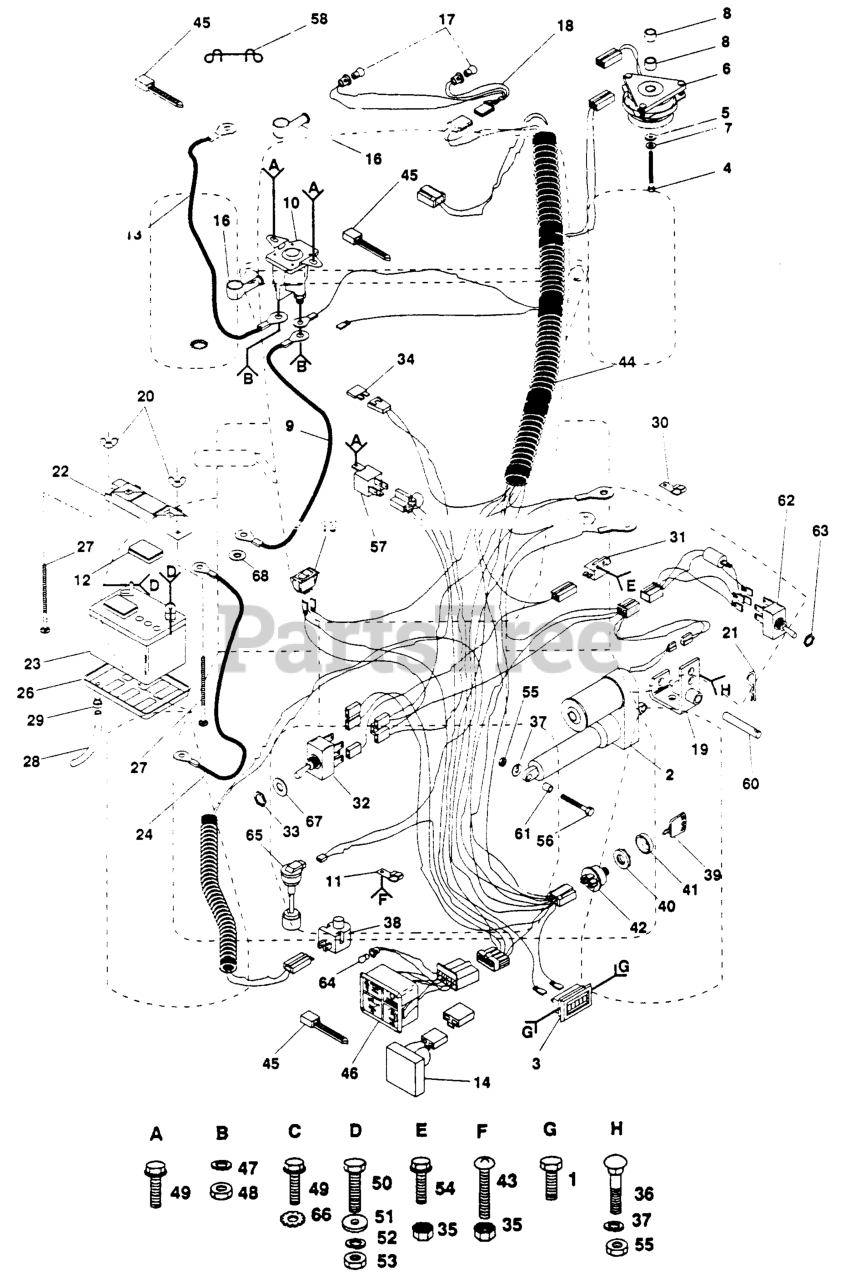

GT 180 (954000372-C) - Husqvarna Garden Tractor (1992-08) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 817011008

Screw # 10-24 x 1/2

$

$

Not available

2

Husqvarna 532124371

ELECT ACTUATOR

$

$

Not available

3

Husqvarna 532110940

HOUR METER T
(Superseded to 532169642)

$

$

Not available

4

Husqvarna 871130724

Bolt, Hex 7/16-20 x 1-1/2 Gr. 8

$

$

Not available

5

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109550

ELECTRIC CLUTCH T

$

$

Not available

7

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 532106367

SPACER-CLUTCH GT

$

$

Not available

9

Husqvarna 532124770

CABLE-BATTERY YTV
(Superseded to 532004799)

$17.99

$

In Stock, only 2 left!

0

10

Husqvarna 532109081

SOLENOID KIT
(Superseded to 532146154)

$22.99

$

In Stock, Qty 20+

0

11

Husqvarna 532004171

CLIP T
(Superseded to 532124967)

$

$

Not available

12

Husqvarna 532121264

CAP BATTERY NLA

$

$

Not available

13

Husqvarna 532129458

CABLE, STARTER

$

$

Not available

14

Husqvarna 532127385

SENSOR LOW VOLTAGE

$

$

Not available

15

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

16

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 532124893

BULB-LIGHT T
(Superseded to 532004152)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532136849

HARNESS, LIGHT SOCKET
(Superseded to 532136850)

$

$

Not available

19

Husqvarna 532124867

BRACKET T

$

$

Not available

20

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

21

Husqvarna 532004940

SPRING *

$

$

Not available

22

Husqvarna 532102476

TERMINAL GRD YTV
(Superseded to 532150109)

$

$

Not available

23

Husqvarna 532121537

BATTERY
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

24

Husqvarna 532124773

CABLE T
(Superseded to 532004207)

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 872240460

BOLT

$

$

Not available

28

Husqvarna 532100541

BATT DRAIN TUBE T
(Superseded to 532007697)

$

$

Not available

29

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

30

Husqvarna 532100207

CLIP GTV

$

$

Not available

31

Husqvarna 532104445

SWITCH-INTER. GT

$17.99

$

In Stock, only 1 left!

0

32

Husqvarna 532126018

SWITCH,PTO

$

$

Not available

33

Husqvarna 532124932

HEX NUT T
(Superseded to 532004022)

$

$

Not available

34

Husqvarna 532108824

FUSE HYT

$

$

Not available

35

Husqvarna 873951000

Nut, Keps #10-32

$

$

Not available

36

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$17.99

$

In Stock, Qty 17

0

39

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

40

Husqvarna 532124211

NUT IGNITION

$5.99

$

In Stock, only 1 left!

0

41

Husqvarna 532123620

COVER KEY IGNITIO
(Superseded to 532141226)

$

$

Not available

42

Husqvarna 532125104

SWITCH
(Superseded to 532365402)

$31.99

$

In Stock, only 2 left!

0

43

Husqvarna 874641008

SCREW **

$

$

Not available

44

Husqvarna 532137465

HARNESS, IGNITION

$

$

Not available

45

Husqvarna 532124756

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532126519

LIGHT PACKAGE

$

$

Not available

47

Husqvarna 810090400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

48

Husqvarna 873350400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 817190408

SCREW ST
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

50

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

51

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, Qty 13

0

52

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

53

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

54

Husqvarna 871031008

SCREW **
(Superseded to 874641008)

$

$

Not available

55

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$5.99

$

In Stock, only 2 left!

0

56

Husqvarna 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.49

$

In Stock, Qty 18

0

57

Husqvarna 532109748

RELAY.ASSY.T

$22.99

$

In Stock, only 3 left!

0

58

UNKNOWN

$

$

Not available

60

Husqvarna 532007085

PIN-ACTUATOR T

$

$

Not available

61

Husqvarna 532005950

TUBE GT

$

$

Not available

62

Husqvarna 532126289

LIFT,SW WIRING

$

$

Not available

63

Husqvarna 532007319

LOCKWASHER

$

$

Not available

64

Husqvarna 532110143

BULB LIGHT T

$

$

Not available

65

Husqvarna 532126487

SENSOR, LOW FUEL

$

$

Not available

66

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

67

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 811150400

Washer, Lock, Int. tooth 1/4

$

$

Not available
