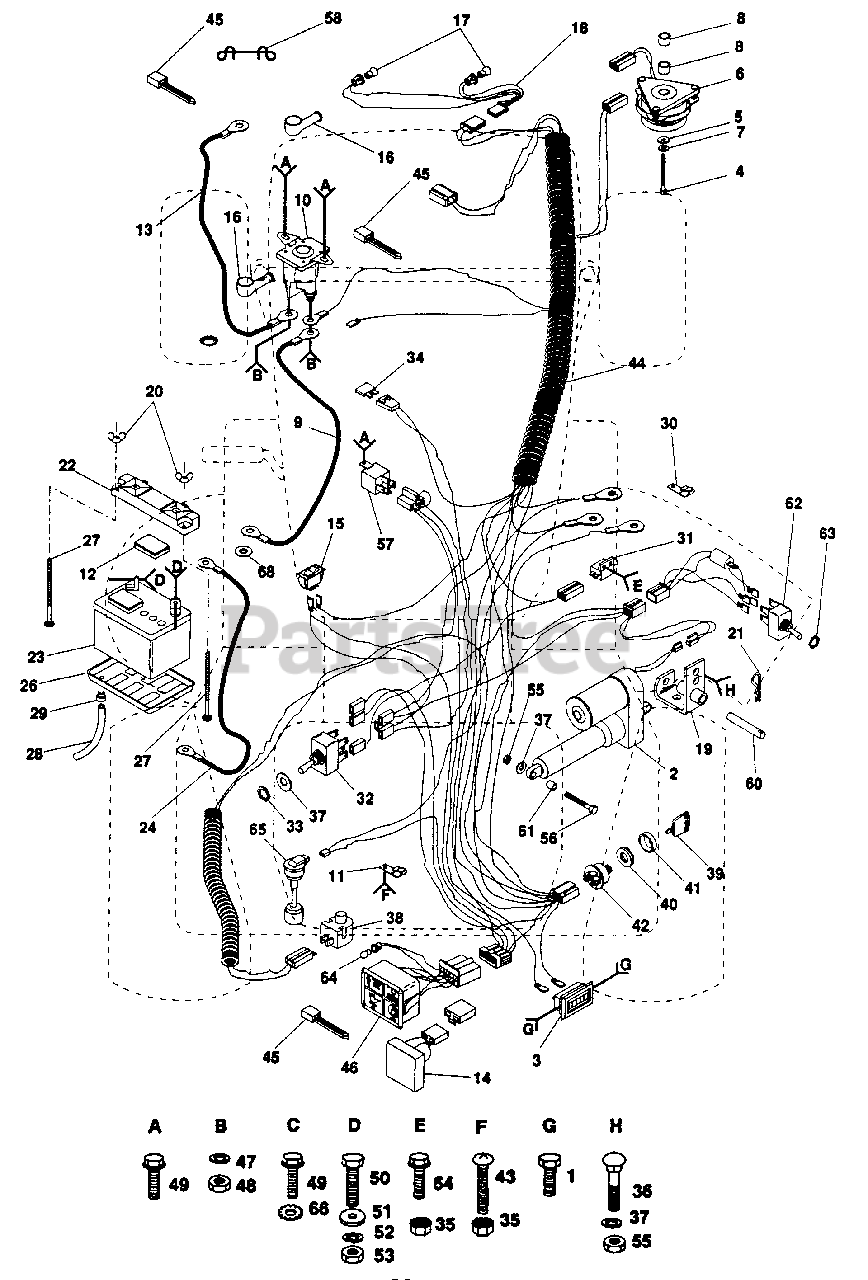

GT 180 (954000372-D) - Husqvarna Garden Tractor (1992-11) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 817011008

Screw #10-24 x 1/2

$

$

Not available

2

Husqvarna 532124371

Actuator, Electric

$

$

Not available

3

Husqvarna 532110940

Meter, Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

4

Husqvarna 871130724

Bolt, Hex 7/16-20 x 1-1/2 Gr. 8

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532126197

Washer

$8.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109550

Clutch, Electric

$

$

Not available

7

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

8

Husqvarna 532106367

Spacer, Clutch

$

$

Not available

9

Husqvarna 532124770

Cable, Battery
(Superseded to 532185464)

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532138406

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

11

Husqvarna 532004171

Clip, Insulated
(Superseded to 532124967)

$

$

Not available

12

Husqvarna 532121264

Battery Caps

$

$

Not available

13

Husqvarna 532129458

Cable, Starter

$

$

Not available

14

Husqvarna 532127385

Sensor, Low Voltage

$

$

Not available

15

Husqvarna 532110712

Switch, Light

$8.99

$

In Stock, Qty 11

0

16

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532124893

Bulb, Light
(Superseded to 532007662)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532136849

Harness, Light Socket
(Superseded to 532136850)

$

$

Not available

19

Husqvarna 532124867

Bracket Assembly, Actuator

$

$

Not available

20

Husqvarna 532123198

Nut, Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

21

Husqvarna 532004940

Spring, Retainer

$

$

Not available

22

Husqvarna 532102476

Guard Terminal
(Superseded to 532150109)

$

$

Not available

23

Husqvarna 532121537

Battery
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124773

Cable Ground
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

26

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 872240460

Bolt, Carriage 1/4-20 x 7-1/2

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532007697

Tube, Plastic

$

$

Not available

29

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532100207

Clip

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532104445

Switch, Interlock

$17.99

$

In Stock, only 1 left!

0

32

Husqvarna 532126018

Switch, P.T.O.

$

$

Not available

33

Husqvarna 532124932

Nut, Hex
(Superseded to 532004022)

$

$

Not available

34

Husqvarna 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 873951000

Nut, Keps #10-32

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 872110608

Bolt, Carriage 3/8-16 x 1
(Superseded to 596728201)

$3.99

$

In Stock, Qty 10

0

37

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532121305

Switch, Seat
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

39

Husqvarna 532122147

Key

$

$

Not available

40

Husqvarna 532124211

Nut, Ignition

$4.99

$

In Stock, only 1 left!

0

41

Husqvarna 532123620

Bezel, Ignition
(Superseded to 532141226)

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532125104

Switch, Ignition
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

43

Husqvarna 874641008

Screw, Slot, Pan HD #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532137465

Harness, Ignition

$

$

Not available

45

Husqvarna 532124756

Cable Tie
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532126519

Light Package

$

$

Not available

47

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

48

Husqvarna 873350400

Nut, Hex Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

49

Husqvarna 817190408

Screw, Hex Washer Hd. Cutting 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 874760412

Bolt, Hex Hd. 1/4-20 x 3/4

$7.49

$

In Stock, Qty 5

0

51

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Gauge

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

53

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

54

Husqvarna 871031008

Screw, Hex Washer Hd. #10-32 x 1-1/2
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

55

Husqvarna 873220600

Nut, Fin Hex 3/8-16

$6.49

$

In Stock, only 3 left!

0

56

Husqvarna 874520636

Bolt, Fin Hex 3/8-16 x 2-1/4

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532109748

Assembly, Relay

$34.99

$

In Stock, only 1 left!

0

58

UNKNOWN

$

$

Not available

60

Husqvarna 532007085

Pin, Actuator

$

$

Not available

61

Husqvarna 532005950

Tube

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532126289

Switch Assembly, Lift

$

$

Not available

63

Husqvarna 532007319

Washer, Lock

$

$

Not available

64

Husqvarna 532110143

Bulb, Dashboard, Light

$

$

Not available

65

Husqvarna 532126487

Sensor, Low Fuel

$

$

Not available

66

Husqvarna 811050600

Washer, Lock, External Tooth
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

67

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 811150400

Washer, Lock, Int. tooth 1/4

$2.99

$

Usually ships in 3-10 days

0
