GT 180 AR - Electrolux/AYP Garden Tractor LEVER CONTROLS, BELT Parts Diagram

Garden Tractor

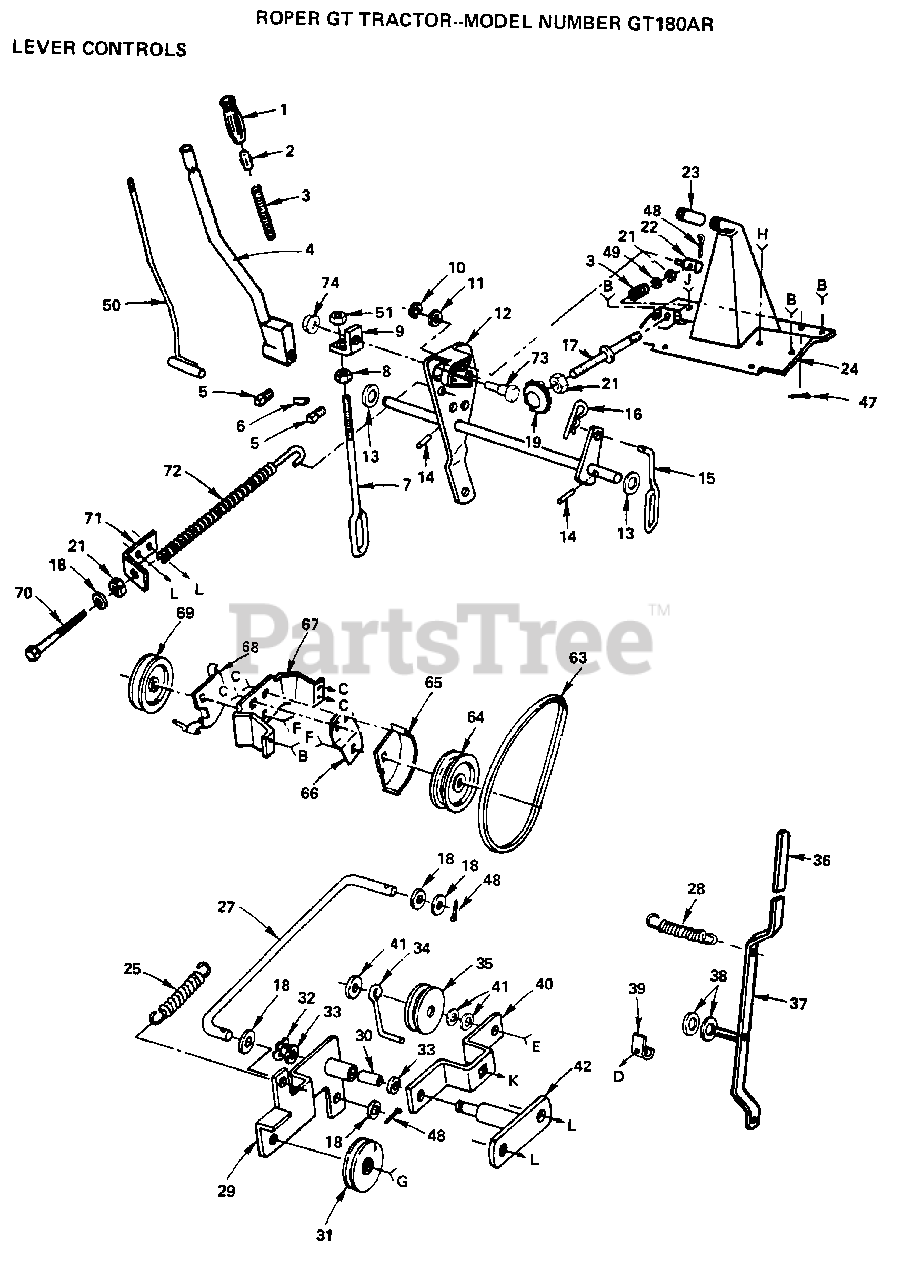

LEVER CONTROLS, BELT Parts Diagram

  • Title

1

Electrolux/AYP 2895H

HANDLE GRIP T
(Superseded to 583731301)

$

$

Not available

2

Electrolux/AYP 8016J

SUB= 125925X

$

$

Not available

3

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 104597X

LEVER ASSY LT

$

$

Not available

5

Electrolux/AYP 23180606

SCREW

$

$

Not available

6

Electrolux/AYP 8330H

KEY STD

$

$

Not available

7

Electrolux/AYP 7596J

LINK-LIFT MOW T
(Superseded to 532007596)

$

$

Not available

8

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 7594J

BRACKET T
(Superseded to 532007594)

$

$

Not available

10

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$

$

Not available

11

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

12

Electrolux/AYP 104448X

SHAFT ASSY GTV

$

$

Not available

13

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$9.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 5142H

ROLL PIN STD
(Superseded to 532437620)

$

$

Not available

15

Electrolux/AYP 8488J

LINK - LIFT

$

$

Not available

16

Murray 4939M

SUB= 85902

$

$

Not available

17

Electrolux/AYP 100735K

ROD ADJUST LT

$

$

Not available

18

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 100734K

SUB= 138057

$

$

Not available

21

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 678H450

SUB= 6519J

$

$

Not available

23

Electrolux/AYP 9038R

"T, BEARING"
(Superseded to 532009038)

$

$

Not available

24

Electrolux/AYP 101274N

SUPPORT ASSY T
(Superseded to 532101274)

$

$

Not available

25

Electrolux/AYP 101355X

SPRING GTV
(Superseded to 583639701)

$43.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 101356L

ROD CLUTCH GTV
(Superseded to 532101356)

$

$

Not available

28

Electrolux/AYP 101276L

NLA

$

$

Not available

29

Electrolux/AYP 101349L

NLA

$

$

Not available

30

Electrolux/AYP 101350K

"GTV, BEARING"
(Superseded to 583639601)

$

$

Not available

31

Electrolux/AYP 8846R

SUB= 110484X

$

$

Not available

32

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$

$

Not available

33

Electrolux/AYP 207J

WASHER T
(Superseded to 532000207)

$

$

Not available

34

Electrolux/AYP 101348L

NLA

$

$

Not available

35

Electrolux/AYP 104360X

SUB= 131494

$

$

Not available

36

Electrolux/AYP 4617J

SUB= 532131861
(Superseded to 532131861)

$

$

Not available

37

Electrolux/AYP 105054X

NLA

$

$

Not available

38

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

39

Electrolux/AYP 5348J

NLA

$

$

Not available

40

Electrolux/AYP 101347L

BRACKET GTV

$

$

Not available

41

Electrolux/AYP 19131413

WASHER
(Superseded to 819131413)

$

$

Not available

42

Electrolux/AYP 101358K

BRACKET ASSY GTV
(Superseded to 532101358)

$

$

Not available

47

Electrolux/AYP 76020816

COTTER PIN
(Superseded to 876020816)

$

$

Not available

48

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$

$

Not available

49

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$3.49

$

In Stock, only 4 left!

0

50

Electrolux/AYP 104598X

ROD ASSY-LEVER LT

$

$

Not available

51

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$

$

Not available

63

Electrolux/AYP 101342N

BELT-V.93.07
(Superseded to 583639501)

$51.99

$

In Stock, only 1 left!

0

64

Electrolux/AYP 2083R

SUB= 102403X

$

$

Not available

65

Electrolux/AYP 5256J

GUIDE-BELT T

$

$

Not available

66

Electrolux/AYP 5255J

BRACKET

$

$

Not available

67

Electrolux/AYP 5252J

BRACKET - V IDLER

$

$

Not available

68

Electrolux/AYP 102671X

NLA

$

$

Not available

69

Electrolux/AYP 101344L

PULLEY V IDLR GTV
(Superseded to 532101344)

$56.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 5328J

BOLT-ADJ SPRING T
(Superseded to 532005328)

$

$

Not available

71

Electrolux/AYP 678H445

SUB= 143363

$

$

Not available

72

Electrolux/AYP 678H641

SUB= 123994X

$

$

Not available

73

Electrolux/AYP 7901J

SHOULDER BOLT T
(Superseded to 532007901)

$

$

Not available

74

Electrolux/AYP 73900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0
