GT-1810 (148-800-190) - White Outdoor Garden Tractor (1988) Transaxle Peerless Parts Diagram

Garden Tractor

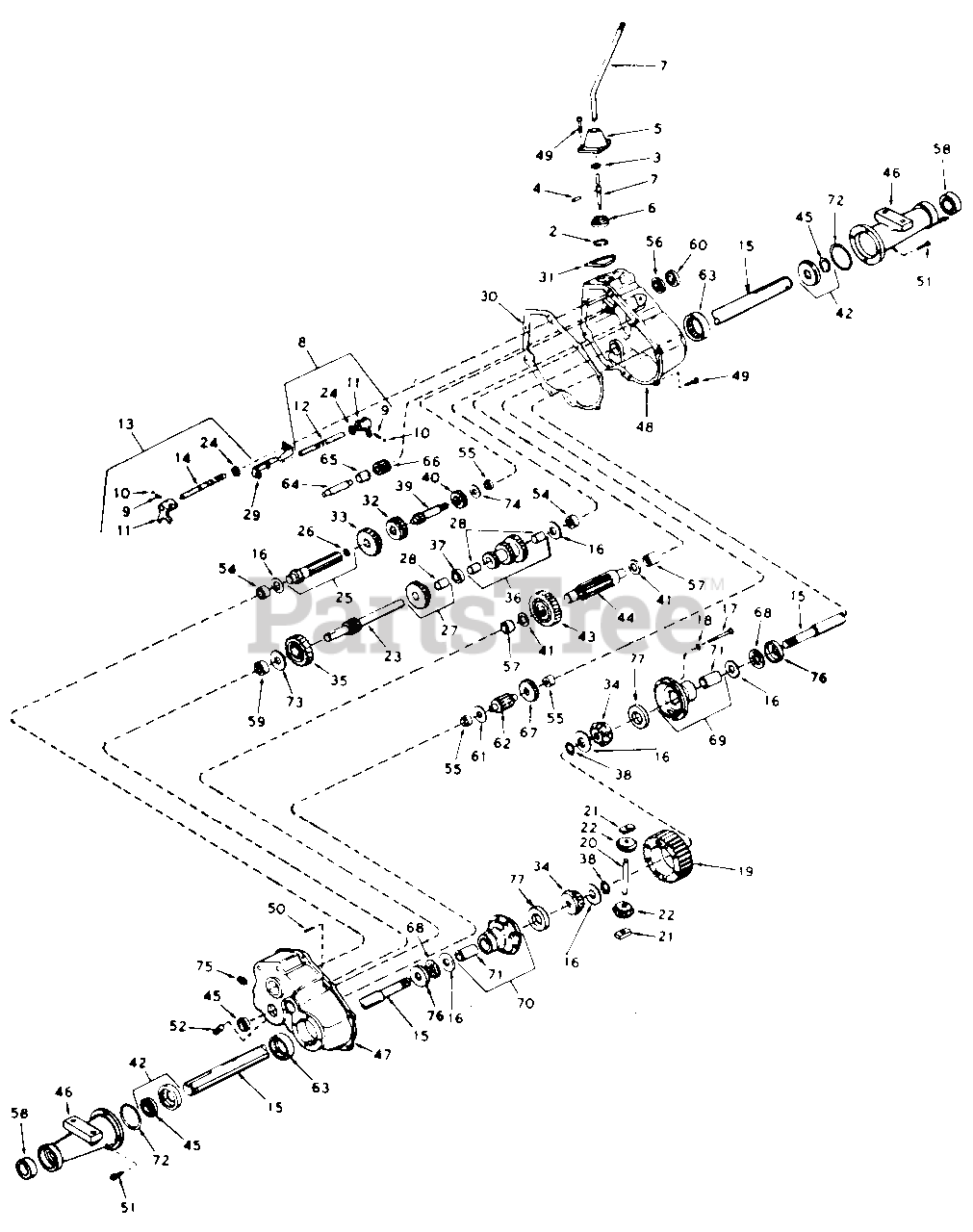

Transaxle Peerless Parts Diagram

  • Title

2

MTD TC-792016

Ring, Snap

Note: NLA

$

$

Currently unavailable

3

MTD TC-792001

Ring, Quad

$4.49

$

In Stock, Qty 11

0

4

MTD TC-792049

Pin, Roll

Note: NLA

$6.49

$

In Stock, only 4 left!

0

5

MTD TC-784093

Housing, Shift Lever

Note: NLA

$80.99

$

Usually ships in 3-12 days

0

6

MTD TC-784094

Keeper, Shift Lever

Note: NLA

$36.99

$

In Stock, only 1 left!

0

7

MTD TC-784308

Lever, Shift

Note: NLA

$

$

Currently unavailable

8

MTD TC-784054

Rod Ass'y., Shin

Note: NLA

$65.99

$

Usually ships in 3-12 days

0

9

MTD TC-792003

Spring. Shift Fork

$4.49

$

In Stock, only 2 left!

0

10

MTD TC-792004

Ball Steel

Note: NLA

$4.49

$

In Stock, Qty 12

0

11

MTD TC-784004

Fork, Shifter

Note: NLA

$45.99

$

Usually ships in 3-12 days

0

12

MTD TC-784055

Rod, Shifter

Note: NLA

$16.99

$

In Stock, only 1 left!

0

13

MTD TC-784056

Rod Ass'y., Shift

Note: NLA

$65.99

$

Usually ships in 3-12 days

0

14

MTD TC-784057

Rod, Shifter

Note: NLA

$19.99

$

Usually ships in 3-12 days

0

15

MTD TC-774433

Axle (18-11/32' Long)

Note: NLA

$

$

Currently unavailable

16

MTD TC-780042

Washer, Thrust

Note: NLA

$4.49

$

In Stock, only 2 left!

0

17

MTD TC-792005

Scr., Hex Hd., 1/4-20 x 2l/2

Note: NLA

$

$

Currently unavailable

18

MTD TC-792006

Lock Washer, Split 1/4 "

Note: NLA

$

$

Currently unavailable

19

MTD TC-778033A

Gear, Ring

Note: NLA

$

$

Currently unavailable

20

MTD TC-786019

Pin, Drive

Note: NLA

$14.99

$

Usually ships in 3-12 days

0

21

MTD TC-786027

Block, Drive

Note: NLA

$10.99

$

In Stock, only 1 left!

0

22

MTD TC-778097

Pinion, Bevel

Note: NLA

$

$

Currently unavailable

23

MTD TC-776029A

Shaft and Gear, Brake

Note: NLA

$137.99

$

Usually ships in 3-12 days

0

24

MTD TC-792017

Ring, Snap

Note: NLA

$

$

Currently unavailable

25

MTD TC-776189A

Shaft and Bearing Ass'y., Pinion

Note: NLA

$89.99

$

Usually ships in 3-12 days

0

26

MTD TC-780018

Bearing, Needle

Note: NLA

$18.99

$

Usually ships in 3-12 days

0

27

MTD TC-778034

Gear Cluster Ass'y.

Note: NLA

$115.99

$

Usually ships in 3-12 days

0

28

MTD TC-780053

Bushing

Note: NLA

$7.99

$

Usually ships in 3-12 days

0

29

MTD TC-784074

Stop, Shifter

Note: NLA

$

$

Not available

30

MTD TC-788023

Gasket, Case and Cover

$4.49

$

Usually ships in 3-12 days

0

31

MTD TC-788022

Gasket, Shifter Lever Housing

Note: NLA

$

$

Not available

32

MTD TC-778019A

Gear, Shifting

$66.99

$

Usually ships in 3-12 days

0

33

MTD TC-778020

Gear, Shifting

Note: NLA

$66.99

$

Usually ships in 3-12 days

0

34

MTD TC-778231

Gear, Bevel

Note: NLA

$43.99

$

Usually ships in 3-12 days

0

35

MTD TC-778037

Gear, Idler

Note: NLA

$56.99

$

Usually ships in 3-12 days

0

36

MTD TC-778035A

Gear Cluster Ass'y.

Note: NLA

$

$

Not available

37

MTD TC-786024

Spacer

Note: NLA

$

$

Not available

38

MTD 716-3001

Ring, Snap

$4.49

$

In Stock, only 1 left!

0

39

MTD TC-776175

Shaft, Input

Note: NLA

$

$

Currently unavailable

40

MTD TC-778024A

Spur Gear, Input Shaft

Note: NLA

$28.99

$

In Stock, only 2 left!

0

41

MTD TC-780052

Washer, Thrust

$4.49

$

In Stock, only 1 left!

0

42

MTD TC-788021

Seal and Retainer Ass'y.,Oil

$32.99

$

In Stock, only 1 left!

0

43

MTD TC-778036

Gear, Output

Note: NLA

$76.99

$

Usually ships in 3-12 days

0

44

MTD TC-776028

Pinion, Output

Note: NLA

$

$

Not available

45

MTD TC-788008

Seal, Oil

$8.49

$

In Stock, only 2 left!

0

46

MTD TC-782025

Housing, Axle

Note: NLA

$

$

Not available

47

MTD TC-772016A

Cover Ass'y., Transaxle

Note: NLA

$

$

Currently unavailable

48

MTD TC-770012

Case Ass'y., Transaxle

Note: NLA

$

$

Currently unavailable

49

MTD TC-792007

Screw, Flanged Hex Hd. 1/4-20 x 3 /4

Note: NLA

$

$

Not available

50

MTD TC-786026

Pin, Dowel

$1.99

$

Usually ships in 3-12 days

0

51

MTD TC-792037

Screw, Hex Hd. Sems, 5/16-18 x 1

Note: NLA

$4.49

$

Usually ships in 3-12 days

0

52

MTD TC-792019

Plug, Magnetic Drain

Note: NLA

$

$

Not available

54

MTD TC-780049

Bearing, Needle

Note: NLA

$23.99

$

In Stock, only 1 left!

0

55

MTD TC-780140

Bearing, Needle

Note: NLA

$24.99

$

In Stock, Qty 7

0

56

MTD TC-780024

Bearing, Ball

$48.99

$

In Stock, only 2 left!

0

57

MTD TC-780047

Bearing, Needle

Note: NLA

$22.99

$

Usually ships in 3-12 days

0

58

MTD TC-780050

Bearing, Ball

Note: NLA

$56.99

$

In Stock, only 3 left!

0

59

MTD TC-780046

Bearing, Needle

Note: NLA

$21.99

$

Usually ships in 3-12 days

0

60

MTD TC-788025

Seal, Oil

$

$

Not available

61

MTD TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

62

MTD TC-776031

ShaR and Pinion

Note: NLA

$75.99

$

Usually ships in 3-12 days

0

63

MTD TC-780048

Bearing, Needle

Note: NLA

$46.99

$

Usually ships in 3-12 days

0

64

MTD TC-776030

Shaft, Reverse Idler

Note: NLA

$18.99

$

Usually ships in 3-12 days

0

65

MTD TC-786025

Spacer, Reverse Idler

Note: NLA

$

$

Not available

66

MTD TC-778016

Idler, Reverse

Note: NLA

$54.99

$

Usually ships in 3-12 days

0

67

MTD TC-778038

Spur Gear (22 Teeth)

Note: NLA

$

$

Currently unavailable

68

MTD TC-780039

Bearing, Thrust

Note: NLA

$9.99

$

Usually ships in 3-12 days

0

69

MTD TC-774072A

Carrier Ass'y., Differential

Note: NLA

$

$

Not available

70

MTD TC-774071A

Carrier Ass'y, Differential

Note: NLA

$

$

Not available

71

MTD TC-780041

Bushing

Note: NLA

$

$

Currently unavailable

72

MTD TC-788024

Seal, Square Cut

$5.99

$

In Stock, only 3 left!

0

73

MTD TC-780007

Washer, Thrust

$4.49

$

In Stock, Qty 5

0

74

MTD TC-780051

Washer, Thrust

$4.49

$

In Stock, only 1 left!

0

75

MTD TC-792010

Plug, Pipe

Note: NLA

$

$

Not available

76

MTD TC-780075

Race, Thrust

Note: NLA

$

$

Not available

77

MTD TC-780107

Washer

$4.49

$

Usually ships in 3-12 days

0
