GT-1810 (148-800-190) - White Outdoor Garden Tractor (1988) Transmission Mounting Assembly Parts Diagram

Garden Tractor

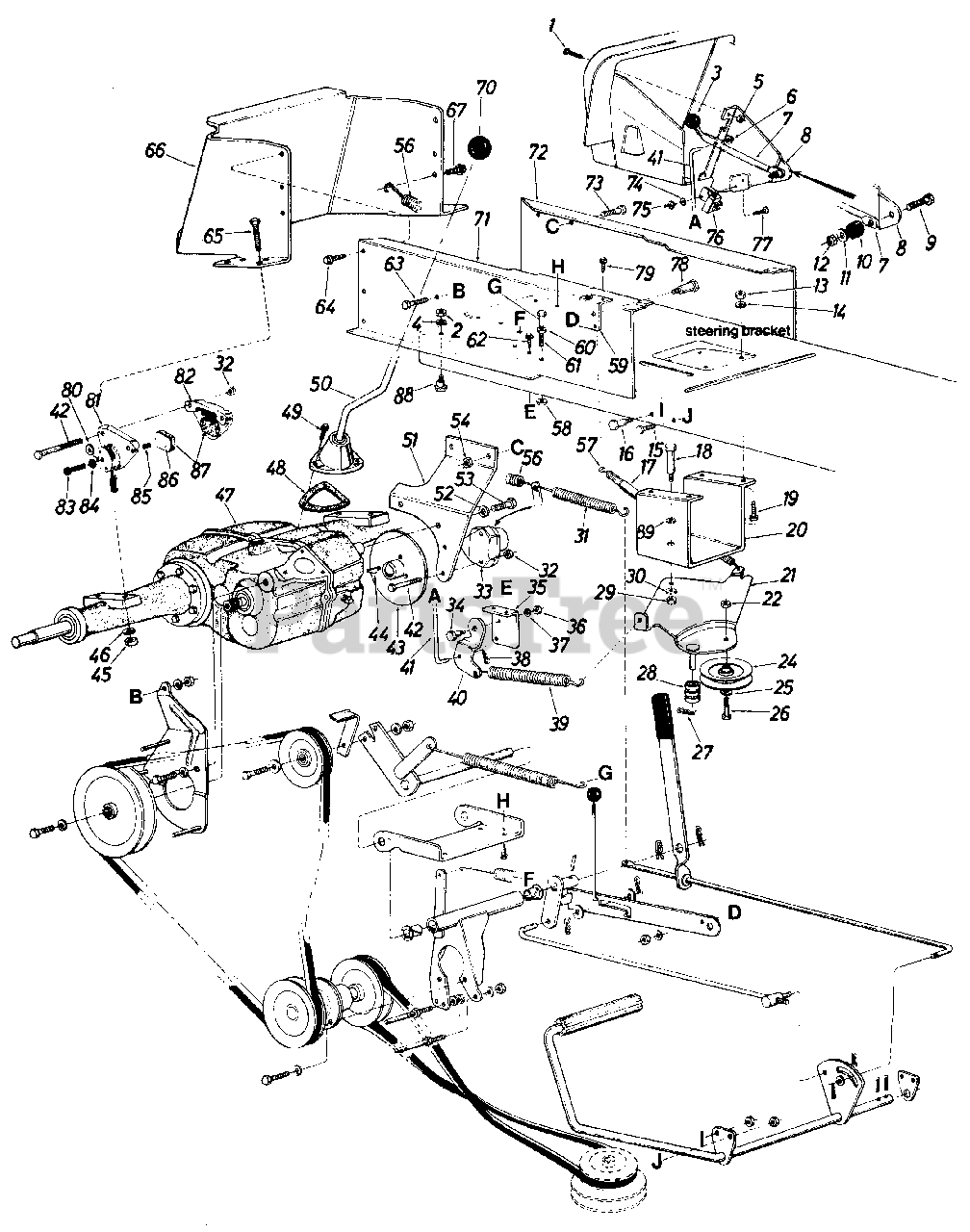

Transmission Mounting Assembly Parts Diagram

  • Title

1

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

2

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, only 2 left!

0

3

MTD 920-0232

Knob-Blade Clutch

$9.99

$

In Stock, only 4 left!

0

4

MTD 936-0329

L-Wash. 1/4 I.D.

$4.49

$

In Stock, Qty 13

0

5

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

6

MTD 926-0106

Push Cap 1/4n Rod
(Superseded to 726-0106)

$

$

Not available

7

MTD 747-0513

Blade Clutch Lever

Note: NLA

$

$

Not available

8

MTD 13950

Deck Clutch Control Brkt.

Note: NLA

$

$

Not available

9

MTD 710-0106

Hex Scr. 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

10

MTD 735-0126A

Rubber Wash. .330 I.D. x .87

$

$

Not available

11

MTD 736-0173

Fl-Wash. 1/4" I.D. x .75" O.D. x .057

$3.99

$

In Stock, Qty 10

0

12

MTD 912-0107

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 1 left!

0

13

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0201

Hex Bolt 3/8-16 x .62" Lg.

Note: NLA

$

$

Not available

16

MTD 738-0143

Shld. Bolt 1/2" Dia. x .335 Lg. 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

MTD 731-0757-4

Convoluted Conduit .50 I.D. x 4" Lg.

$15.99

$

In Stock, only 2 left!

0

18

MTD 938-0155

Shld. Bolt 7/16 Dia. x .16" 5/1 6-1 8

$6.49

$

Usually ships in 3-6 days

0

19

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.'

$3.99

$

In Stock, Qty 17

0

20

MTD 13826

Idler Mtg. Brkt.-Deck

Note: NLA

$

$

Not available

21

MTD 13893

Idler Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

22

MTD 912-0181

Hex L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

24

MTD 756-0487

4"-"V" Idler Pulley

$45.99

$

In Stock, only 4 left!

0

25

MTD 936-0300

Fl-Wash. 3/8" I.D.
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-3005

Hex Bolt 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

27

MTD 914-0104

Hairpin Cotter 5/16" Rod
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

28

MTD 948-0278

Spacer

$10.99

$

In Stock, Qty 15

0

29

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 936-0119

L-Wash. 5/16" Scr.

$4.49

$

In Stock, Qty 20+

0

31

MTD 932-0260

Ext. Spring-Brake Rod

$19.99

$

In Stock, only 4 left!

0

32

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

33

MTD 761-0178

Disc Brake Caliper Ass'y.

Note: NLA

$

$

Not available

34

MTD 938-0155

Shld. Scr. 7/16" Dia. x .16" Lg. 5/16-18

$6.49

$

Usually ships in 3-6 days

0

35

MTD 13833

Parking Brake Cam Mtg. Brkt.

Note: NLA

$

$

Not available

36

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0119

L-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 914-0104

Hairpin Cotter 5/16" Dia.
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

39

MTD 932-0478

Ext. Spring-Deck Control

$11.99

$

In Stock, Qty 18

0

40

MTD 13887A

Deck Control Pivot Brkt.

$

$

Not available

41

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

42

MTD 710-0859

Hex Bolt 3/8-16 x 2.50" Lg.

$6.49

$

In Stock, Qty 20+

0

43

MTD 761-0142

Hub & Disc Ass'y. (For Brake)

$

$

Not available

44

MTD 714-0137

Hi-Pro Key 3/16 x 3/4" Lg.

$

$

Not available

45

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

46

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

47

Transaxle

Note: (See Breakdown)

$

$

Not available

48

Part of Ref. No. 47

$

$

Not available

49

Part of Ref. No. 47

$

$

Not available

50

Part of Ref. No. 47

$

$

Not available

51

MTD 13012

Transaxle Support

Note: NLA

$

$

Currently unavailable

52

MTD 936-0169

L-Wash. 3/8" Scr.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

53

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

54

MTD 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

56

MTD 732-0157

Ext. Spring-Brake Return

$13.99

$

Usually ships in 3-6 days

0

57

MTD 732-0308A

Ext. Spring-Deck Idler Return

$10.99

$

In Stock, Qty 12

0

58

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 20+

0

59

MTD 13833

Parking Brake Cam Mtg. Brkt.

Note: NLA

$

$

Not available

60

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

62

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

63

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

64

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

65

MTD 710-0344

Hex Scr. 3/8-16 x 1.50" Lg.

$5.49

$

In Stock, only 3 left!

0

66

MTD 13813

Hitch Plate

Note: NLA

$

$

Not available

67

MTD 710-1260A

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$3.49

$

In Stock, Qty 20+

0

70

MTD 920-0232

Knob-Transaxle

$9.99

$

In Stock, only 4 left!

0

71

MTD 13848

Side Panel Upper Frame-R.H.

Note: NLA

$

$

Currently unavailable

72

MTD 16445

Side Panel Upper Frame-L.H.

Note: NLA

$

$

Currently unavailable

73

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

75

MTD 912-0121

Hex Nut #10-24 Thd.
(Superseded to 712-0121)

$3.99

$

In Stock, Qty 20+

0

76

MTD 925-0465A

Safety Switch (Deck)

$28.99

$

In Stock, only 2 left!

0

77

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$3.99

$

In Stock, only 1 left!

0

78

MTD 938-0155

Shld. Bolt 7/16" Dia. x .16" Lg. 5/16-18

$6.49

$

Usually ships in 3-6 days

0

79

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

80

MTD HU-20-9764

Washer

Note: NLA

$

$

Currently unavailable

81

MTD HU-B003770066

Housing with Lever & Pin

Note: NLA

$

$

Currently unavailable

82

MTD HU-16-13807

Anvil

Note: NLA

$

$

Not available

83

MTD HU-A611030003

Pin, Adjuster

$

$

Not available

84

MTD 912-0240

Nut

$3.99

$

In Stock, Qty 20+

0

85

MTD HU-39-13774

Pin, Actuator

Note: NLA

$

$

Not available

86

MTD HU-A611950129

Backing Plate

$

$

Not available

87

MTD 761-04060

Lining

$30.99

$

In Stock, Qty 9

0

88

MTD 938-0255

Shld. Bolt .375" Dia. x .180 Lg. 1/4-20 Thd.

$4.99

$

In Stock, Qty 10

0

89

MTD 936-0141

Wave Washer

$6.49

$

Usually ships in 3-6 days

0
