GT-1845 (146-842-190) - White Outdoor Yard Boss Garden Tractor (1986) Electrical System Parts Diagram

Yard Boss Garden Tractor

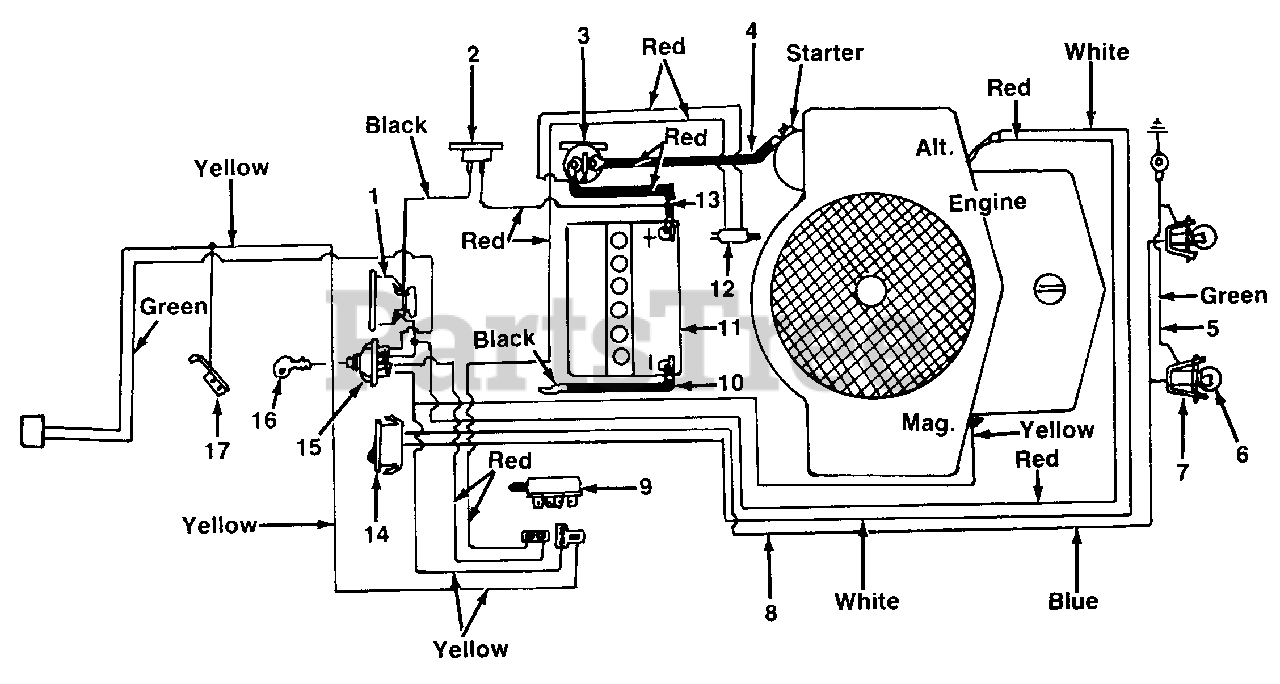

Electrical System Parts Diagram

  • Title

1

MTD 925-0925

Ammeter

$28.99

$

Usually ships in 3-6 days

0

2

MTD 753-0685

Circuit Breaker

$35.99

$

In Stock, only 1 left!

0

3

MTD 925-0771

Solenoid

$32.99

$

In Stock, Qty 5

0

4

MTD 629-0705

Electrical Cable

$

$

Not available

5

MTD 725-0916A

Double 14 x 5 Wire Lead

$

$

Not available

6

MTD 925-0963

Lamp 12V

$6.99

$

In Stock, Qty 20+

0

7

MTD 925-1058A

Twist Lock Lamp Socket

$10.99

$

In Stock, Qty 7

0

8

MTD 925-1134A

Wire Harness

$

$

Not available

9

MTD 925-0465A

Safety Switch Blade

$28.99

$

In Stock, only 3 left!

0

10

MTD 725-0996

6 Ga. Elec. Wire Black 7.5" Lg.

Note: NLA

$

$

Not available

11

MTD 925-0453G

Battery 12V

$

$

Not available

12

MTD 925-0268

Safety Switch

$39.99

$

Usually ships in 3-6 days

0

13

MTD 725-0563

Electric Wire

Note: NLA

$

$

Currently unavailable

14

MTD 925-0634

Headlight Switch

$16.99

$

In Stock, Qty 5

0

15

MTD 925-0267B

Ignition Switch

$33.99

$

In Stock, Qty 18

0

16

MTD 925-0201

Ignition Key

$8.99

$

In Stock, Qty 14

0

17

MTD 753-0579

Switch Spring

$

$

Not available
