GT-1845 (146-842-190) - White Outdoor Yard Boss Garden Tractor (1986) Hydraulic Assembly Parts Diagram

Yard Boss Garden Tractor

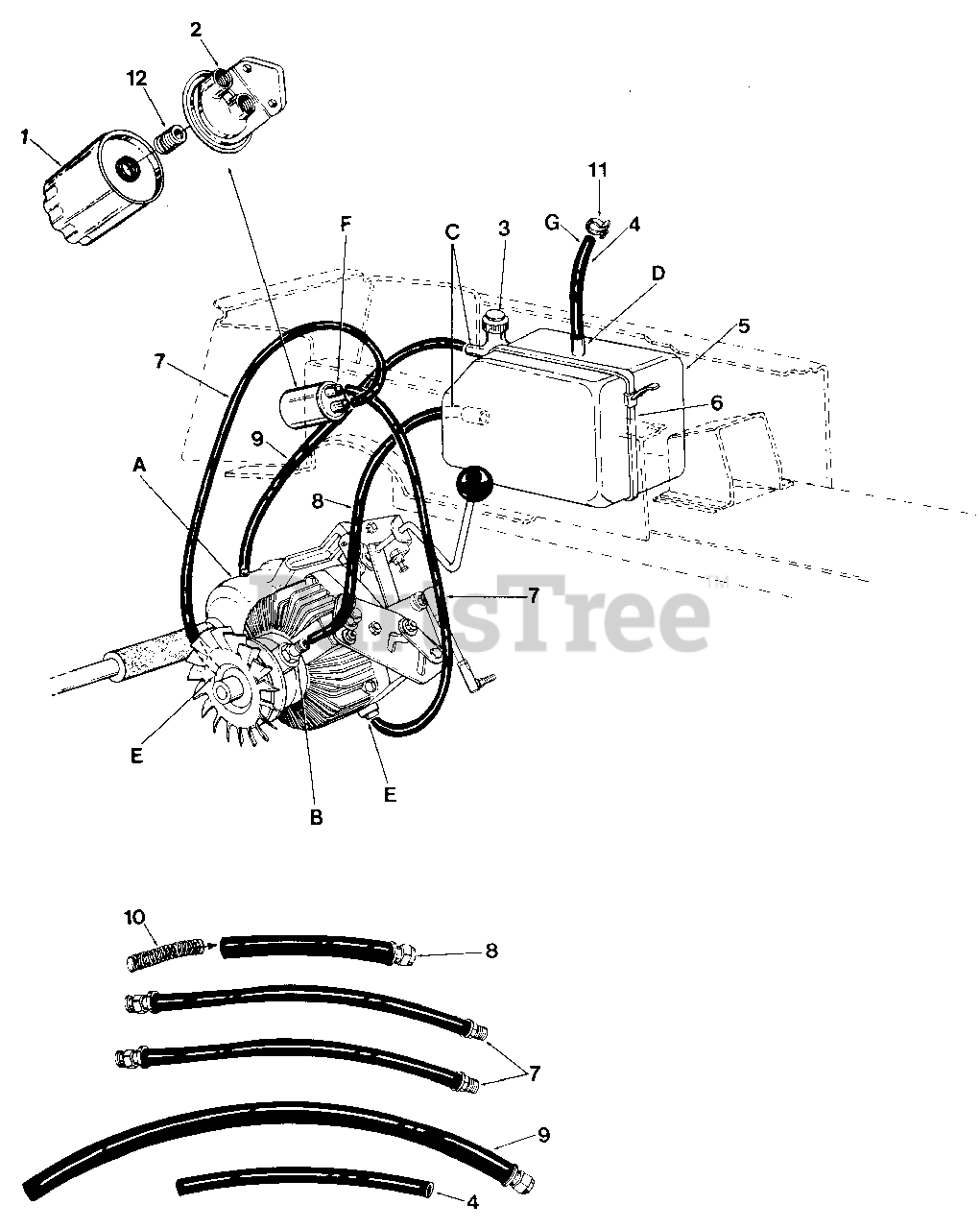

Hydraulic Assembly Parts Diagram

  • Title

1

MTD 727-0162

Oil Filter

Note: NLA

$

$

Not available

2

MTD 727-0163

Filter Base

Note: NLA

$

$

Not available

3

MTD 737-0203

Oil Reservoir Cap

Note: NLA

$

$

Currently unavailable

4

MTD 751-10349-16

Gas Line 13" Lg.

$18.99

$

In Stock, Qty 13

0

5

MTD 737-0202

Oil Reservoir

Note: NLA

$

$

Not available

6

MTD 726-0230

Cable Tie 34.25" Lg.

$25.99

$

In Stock, only 2 left!

0

7

MTD 727-0303

Hose Ass'y. 3/8" I.D. x 16.5" Lg.

Note: NLA

$

$

Not available

8

MTD 727-0305

Hose Ass'y. 5/8" I.D. x 9" Lg.

Note: NLA

$

$

Not available

9

MTD 727-0304

Hose Ass'y. 1/2" I.D.

Note: NLA

$

$

Not available

10

Spring Part of Ref. No. 8

$

$

Not available

11

MTD 726-0161

Wire Retainer

$

$

Not available

12

MTD 726-0164

Plug Expansion 13/16

Note: NLA

$

$

Not available
