GT-1845 (146-842-190) - White Outdoor Yard Boss Garden Tractor (1986) Shift Lever Assembly Parts Diagram

Yard Boss Garden Tractor

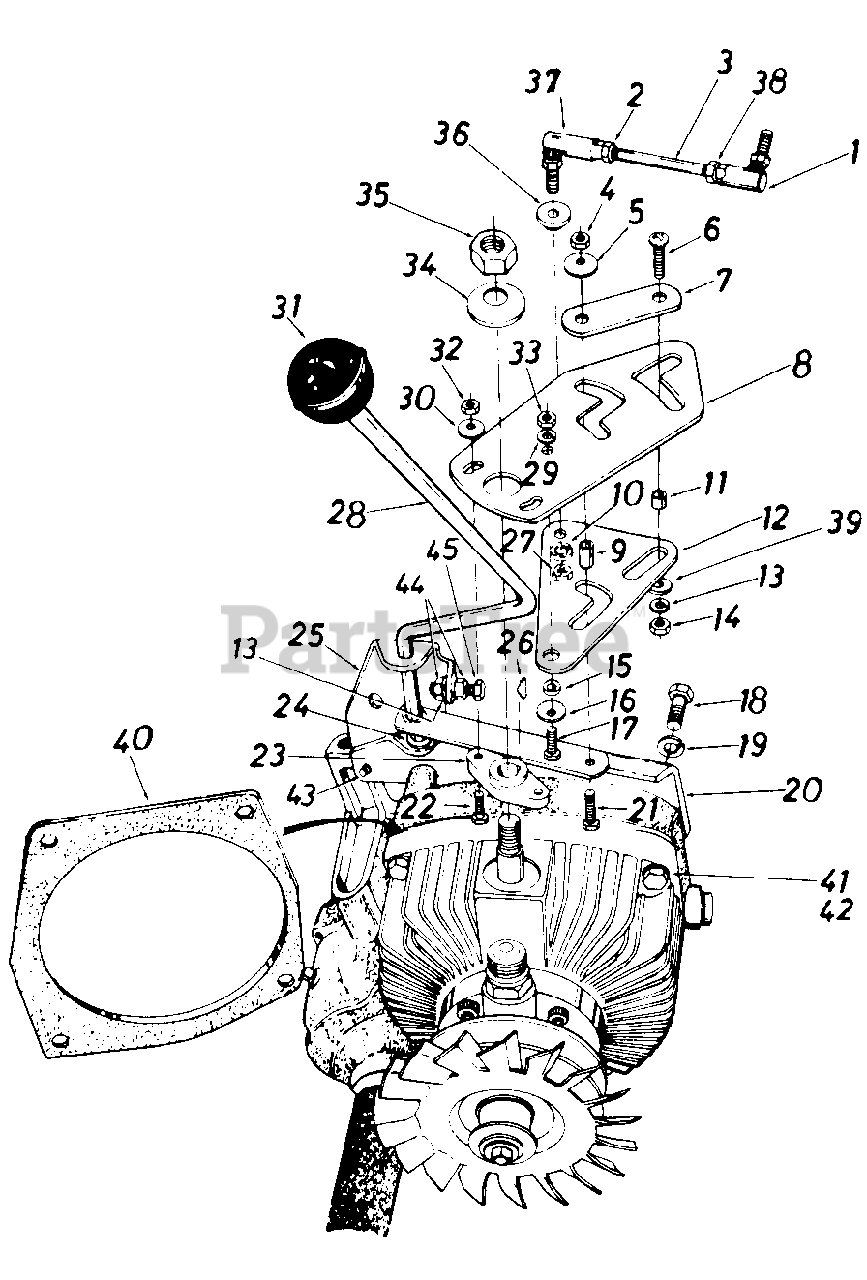

Shift Lever Assembly Parts Diagram

  • Title

1

MTD 923-0156

Ball Joint Ass'y. 3/8-24 Thd.

$16.99

$

In Stock, Qty 20+

0

2

MTD 712-0312A

Hex Nut 3/8-24 Thd. (L.H. Threads)

$3.99

$

Usually ships in 3-6 days

0

3

MTD 747-0508

Control Rod 3/8-24 x 3.75"

Note: NLA

$

$

Currently unavailable

4

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

5

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

6

MTD 1511-047

Truss Mach. Scr. Phil. 5/16-18 x 1.00" Lg.

Note: NLA

$

$

Currently unavailable

7

MTD 16157

Locking Link

Note: NLA

$

$

Currently unavailable

8

MTD 16159

Pintle Main Control Plate

Note: NLA

$

$

Currently unavailable

9

MTD 750-0630

Spacer .377" I.D. x .500" O.D. x .830" Lg.

Note: NLA

$

$

Currently unavailable

10

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

11

MTD 748-0304

Spacer .315" I.D. x .500" O.D. x .350

Note: NLA

$

$

Not available

12

MTD 16160

Pintle Drive Plate

Note: NLA

$

$

Not available

13

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

14

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 950-0535

Spacer .38" I.D. x .227" Lg.

$4.49

$

In Stock, Qty 6

0

16

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

17

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 11

0

18

MTD 710-0514

Hex Bolt 3/8-16 x 1.0" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

19

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

20

MTD 16151

Shift Lever Bracket

Note: NLA

$

$

Currently unavailable

21

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

22

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

23

MTD 748-0302

Pintle Hub

Note: NLA

$

$

Not available

24

MTD 741-0407

Nyliner .375" Dia. x .140

Note: NLA

$

$

Currently unavailable

25

MTD 16153

Shift Lever Bracket Upper

Note: NLA

$

$

Currently unavailable

26

MTD 714-0131

#5 Hi-Pro Key 1/8 x 5/8 Dia.

Note: NLA

$

$

Not available

27

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

28

MTD 16225

Shift Lever Ass'y.

Note: NLA

$

$

Currently unavailable

29

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

30

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

31

MTD 931-0009A

Gear Shift Knob

$14.99

$

In Stock, Qty 5

0

32

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

33

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

34

MTD 936-0253

Bell-Wash. .505" I.D. x 1.00" O.D.
(Superseded to 736-0253)

$

$

Not available

35

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

36

MTD 938-0347

Shld. Spacer .625" I.D.

$10.99

$

In Stock, Qty 13

0

37

MTD 923-0351

Ball Joint Ass'y. 3/8-24 L.H. Thd.

$44.99

$

Usually ships in 3-6 days

0

38

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0343

Fl-Wash. .330" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 18

0

40

MTD 721-0116

Gasket

Note: NLA

$

$

Not available

41

MTD 710-0933

Hex Bolt 3/8-16 x 2.75" Lg. (Gr. 5)

Note: NLA

$

$

Not available

41

MTD 710-0944

Hex Bolt 3/8-16 x 4.25" Lg. (Gr. 5)

$10.99

$

In Stock, Qty 16

0

42

MTD 936-0140

Fl-Wash. .385" I.D. x .62" O.D.
(Superseded to 736-0140)

$

$

Not available

43

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, Qty 13

0

45

MTD 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 11

0
