GT-1855 (146-995-190) - White Outdoor 50" Garden Tractor (1986) Frame Assembly Parts Diagram

50" Garden Tractor

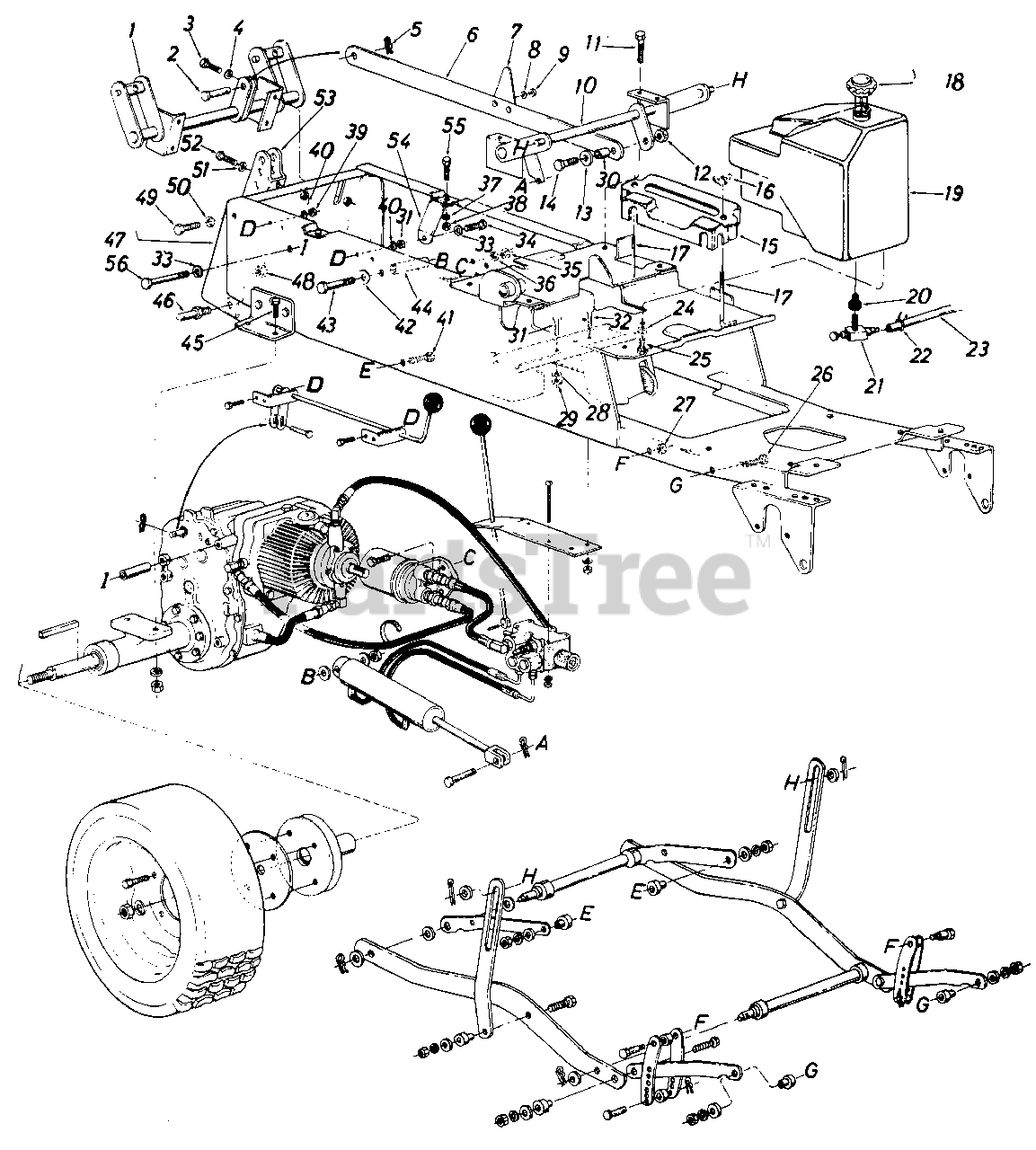

Frame Assembly Parts Diagram

  • Title

1

White Outdoor 13135

Rear Lift Shaft Ass'y.
(Superseded to 13135-0637)

Variations

White Outdoor 13135-0637

SHAFT-LIFT-RR - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 711-0654

Clevis Pin

$14.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0514

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 736-0217

L-Wash. 3/8" Scr. H.D.

$3.99

$

In Stock, Qty 13

0

5

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 13709

Push Bar Ass'y.

Variations

White Outdoor 13709-0637

BAR ASSY-PUSH - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 13535

Position Indicator

$

$

Not available

8

White Outdoor 736-0119

L-Wash. 5/16 Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

10

White Outdoor 13501

Lift Shaft Ass'y.

Variations

White Outdoor 13501-0637

No Longer Available SHAFT ASSY.-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 710-0649

Hex Self-Tap Scr. 3/8-24 x .88" Lg.

$

$

Not available

12

White Outdoor 712-0239

Hex Cent. L-Nut 1/2-20 Thd.

$5.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0179

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-0504

Hex Scr. 1/2-20 x 1.25" Lg.

$

$

Not available

15

White Outdoor 731-0707

Battery Cover

$

$

Not available

16

White Outdoor 712-0113

Wing Nut 1/4-20 Thd.
(Superseded to 912-0113)

$6.49

$

In Stock, only 2 left!

0

17

White Outdoor 711-0222

Battery Hold Down Rods
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

18

White Outdoor 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$53.99

$

In Stock, Qty 14

0

19

White Outdoor 751-0243

Gas Tank Ass'y.

$

$

Not available

20

White Outdoor 735-0149

Bushing
(Superseded to 935-0149)

$7.99

$

In Stock, Qty 20+

0

21

White Outdoor 751-0171

Fuel Shut-Off Valve with Screen
(Superseded to 951-0171)

$19.99

$

In Stock, only 4 left!

0

22

726-0184

Gas Line Clamp 7/16"

$

$

Not available

23

731-0470

Gas Line 30" Lg.

$

$

Not available

24

White Outdoor 736-0270

Bell-Wash.

$3.99

$

In Stock, Qty 15

0

25

White Outdoor 710-0289

Hex Scr. 1/4-20 x .38" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

26

White Outdoor 710-0459

Hex Scr. 3/8-24 x 1.50" Lg.*
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

27

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

28

White Outdoor 736-0169

L-Wash. 3/8" Scr.

$3.49

$

In Stock, Qty 20+

0

29

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

30

White Outdoor 750-0336

Push Bar Sleeve
(Superseded to 950-0336)

$

$

Not available

31

White Outdoor 710-0253

Hex Scr. 3/8-16 x 1.00 Lg. Grade 5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 736-0921

L-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.

$

$

Not available

35

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

36

White Outdoor 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 736-0217

L-Wash 3/8" Scr. H.D.

$3.99

$

In Stock, Qty 13

0

38

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

39

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

40

White Outdoor 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

41

White Outdoor 710-0459

Hex Scr. 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

42

White Outdoor 736-0179

Fl-Wash. .50" I.D. x 1.25 O.D.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0515

Hex Scr. 1/2-20 x 3-1/2" Lg. Grade 5

$10.99

$

Usually ships in 3-6 days

0

44

White Outdoor 750-0443

Spacer for Cyl i nder

$

$

Not available

45

White Outdoor 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 711-0497

Link Clevis Pin

$

$

Not available

47

White Outdoor 13196

Hitch Plate Ass'y.
(Superseded to 13196-0637)

Variations

White Outdoor 13196-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13196-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

White Outdoor 13196-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

48

White Outdoor 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

49

White Outdoor 710-0216

Hex Scr. 3/8-16 x .75" Lg. Grade 5

$3.99

$

In Stock, Qty 17

0

50

White Outdoor 736-0169

L-Wash. 3/8" Scr.

$3.49

$

In Stock, Qty 20+

0

51

White Outdoor 736-0217

L-Wash. 3/8" Scr. H.D.

$3.99

$

In Stock, Qty 13

0

52

White Outdoor 710-0216

Hex Scr. 3/8-16 x .75" Lg. Grade 5

$3.99

$

In Stock, Qty 17

0

53

White Outdoor 13026

Hitch Brkt.
(Superseded to 13026-0637)

Variations

White Outdoor 13026-0637

Hitch Bracket - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

54

13530

Transmission Brace

$

$

Not available

55

White Outdoor 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 710-0490

Hex Scr. 1/2-13 x 2.75" Lg.

$

$

Not available
