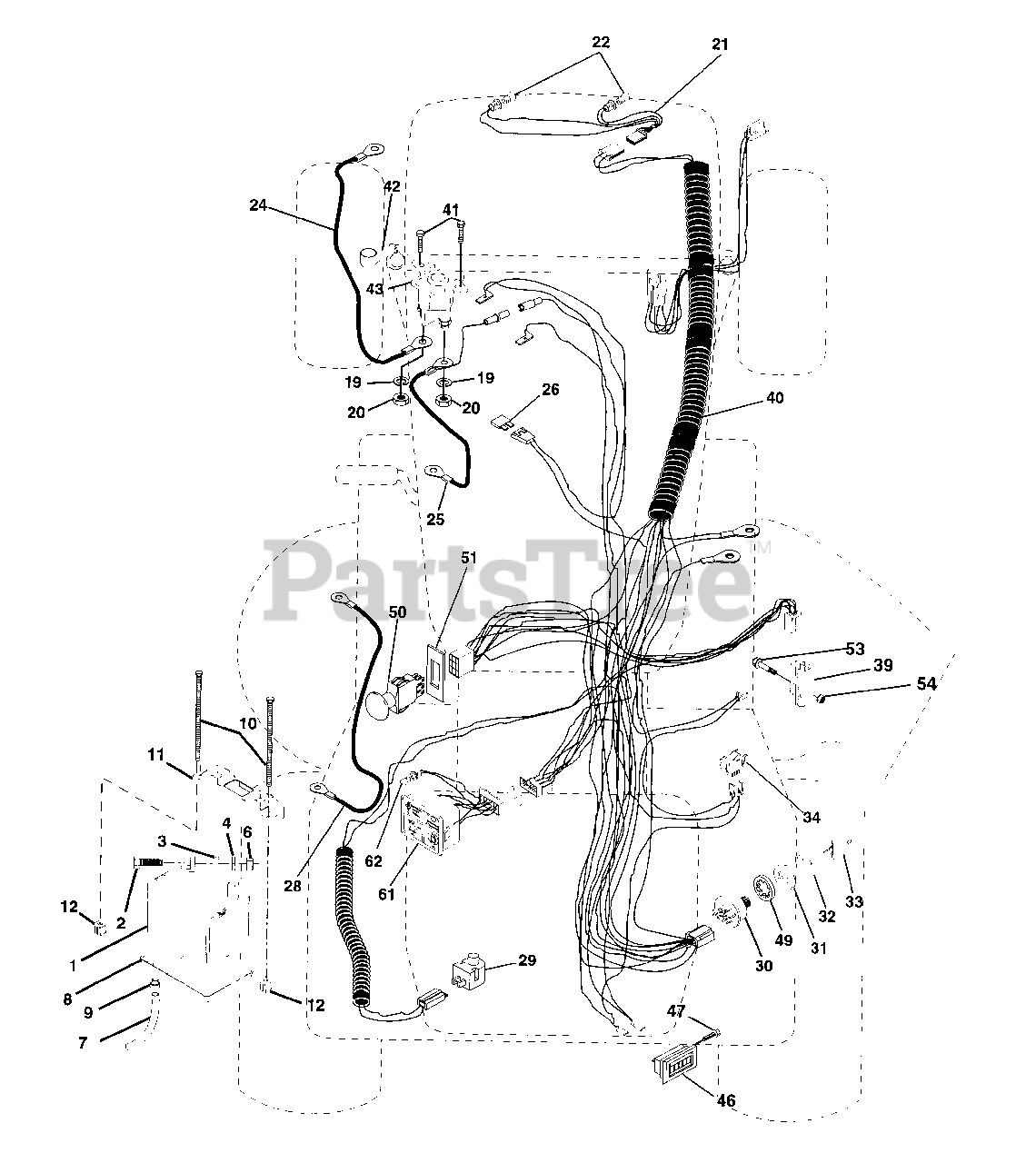

GT 200 (954830156-A) - Husqvarna Garden Tractor (1995-08) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, Qty 5

0

3

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

4

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873220400

Nut Fin Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 532007697

Tube Plastic

$

$

Not available

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt, Btr Frt 1/4-20 x 7-1/2 Zinc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532145209

Holddown Battery Dash Mount
(Superseded to 532150109)

$

$

Not available

12

Husqvarna 532145769

Nut Push Nylon 1/4" Battery Frt.
(Superseded to 532150177)

$

$

Not available

19

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 873350400

Nut, Jam Hex 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532136850

Harness Socket Light w/4152J

$

$

Not available

22

Husqvarna 532004152

Bulb Light

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532004014

Cable, Starter

$

$

Not available

25

Husqvarna 532146686

Cable, Battery

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532006408

Cable, Ground

$

$

Not available

29

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

30

Husqvarna 532144921

Switch, Ign
(Superseded to 532158913)

$67.99

$

In Stock, only 1 left!

0

31

Husqvarna 532140400

Nut, ignition Switch
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

Cover Switch Key

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532140401

Key

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch, Light

$8.99

$

In Stock, Qty 11

0

39

Husqvarna 532109553

Intlk Switch
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

40

Husqvarna 532147341

Harness Ign.
(Superseded to 532151873)

$

$

Not available

41

Husqvarna 817720408

Screw 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

46

Husqvarna 532110940

Meter Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

47

Husqvarna 817011008

Screw #10-24 x 1/2

$

$

Not available

49

Husqvarna 811151000

Washer, Lock internal Tooth 5/8

$

$

Not available

50

Husqvarna 532140404

Switch, PTO
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

Ring Retainer PTO

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 871031008

Screw Hex Washer Hd #10-32 x 1
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

54

Husqvarna 873951000

Nut Keps #10-32

$5.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532138101

Light Pkg Asm

$

$

Not available

62

Husqvarna 532110143

Bulb, Light Pkg.

$

$

Not available
