GT-200 B - Echo String Trimmer (B Version) Ignition, Starter Parts Diagram

String Trimmer

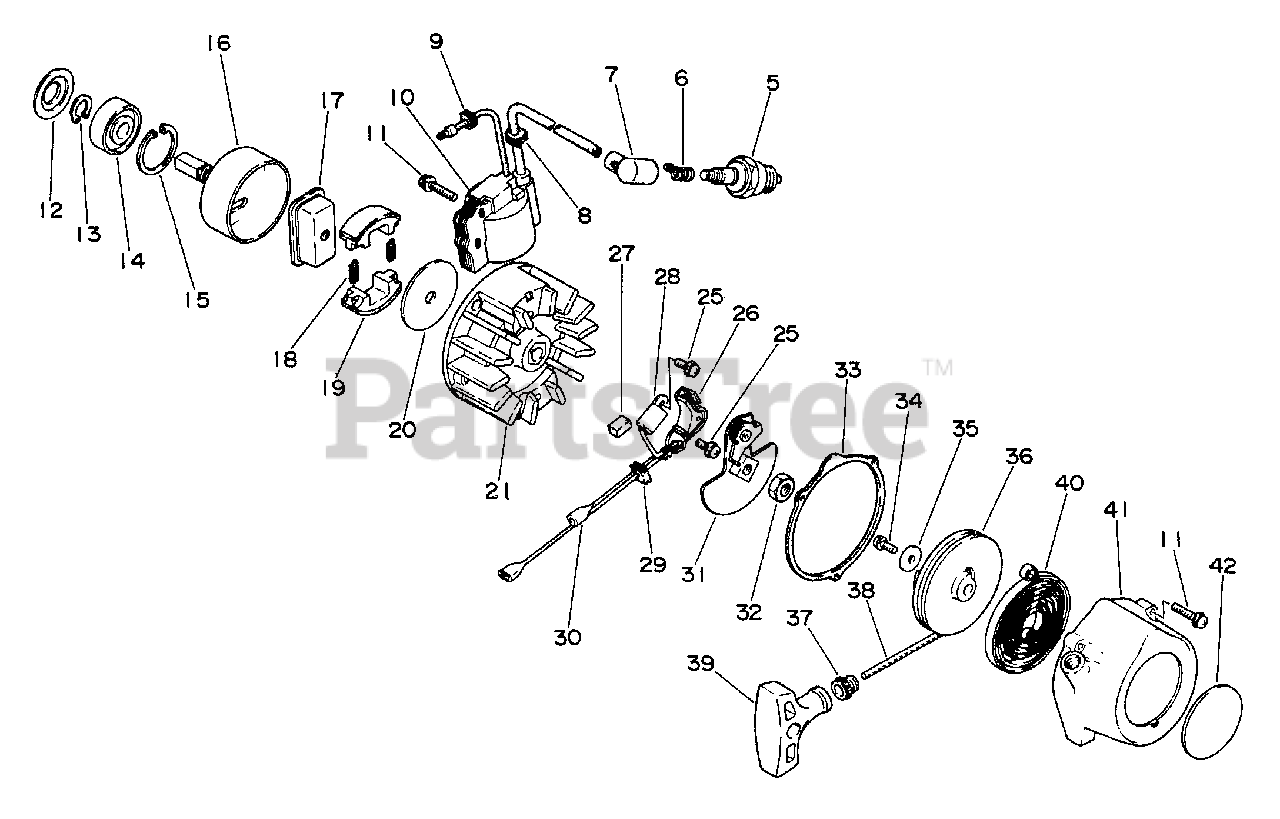

Ignition, Starter Parts Diagram

  • Title

5

Echo 15902603930

SPARK PLUG -- CJ-8
(Superseded to CJ8)

$3.49

$

In Stock, Qty 20+

0

6

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

7

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

8

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

9

Echo 15611407320

GROMMET

$0.99

$

Usually ships in 2-4 days

0

10

Echo 15612606520

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

12

Echo 17505304920

RETAINER, PIPE

$

$

Not available

13

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

14

Echo 90081906201

BEARING, BALL - 6201
(Superseded to 90081206201)

$12.99

$

In Stock, Qty 8

0

15

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

16

Echo 17501004920

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

17

Echo 17501604920

HUB, CLUTCH

$12.99

$

Usually ships in 2-4 days

0

18

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 4 left!

0

19

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$21.99

$

In Stock, only 2 left!

0

20

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

21

Echo 15620006520

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

26

Echo 15610106520

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

27

Echo 15613403730

PAD, OIL
(Superseded to Discontinued)

$

$

Not available

28

Echo 15612706520

CONDENSER
(Superseded to Discontinued)

$

$

Not available

29

Echo 15011404920

GROMMET

$1.49

$

Usually ships in 2-4 days

0

30

Echo 15650506520

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

31

Echo 17730504920

STARTER PAWL ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 5

0

33

Echo 10061504920

GASKET, STARTER
(Superseded to 10061504921)

$

$

Not available

Echo 17720006320

STARTER ASSY
(Superseded to 17720006321)

Note: Consists of 34 thru 41

$

$

Not available

34

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

35

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 10

0

36

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

37

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 20+

0

38

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

39

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

40

Echo 17722006530

SPRING, REWIND

$13.99

$

In Stock, Qty 17

0

41

Echo 17720906320

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

42

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 15

0
