GT-200 CE - Echo String Trimmer (CE Version) Fuel System Parts Diagram

String Trimmer

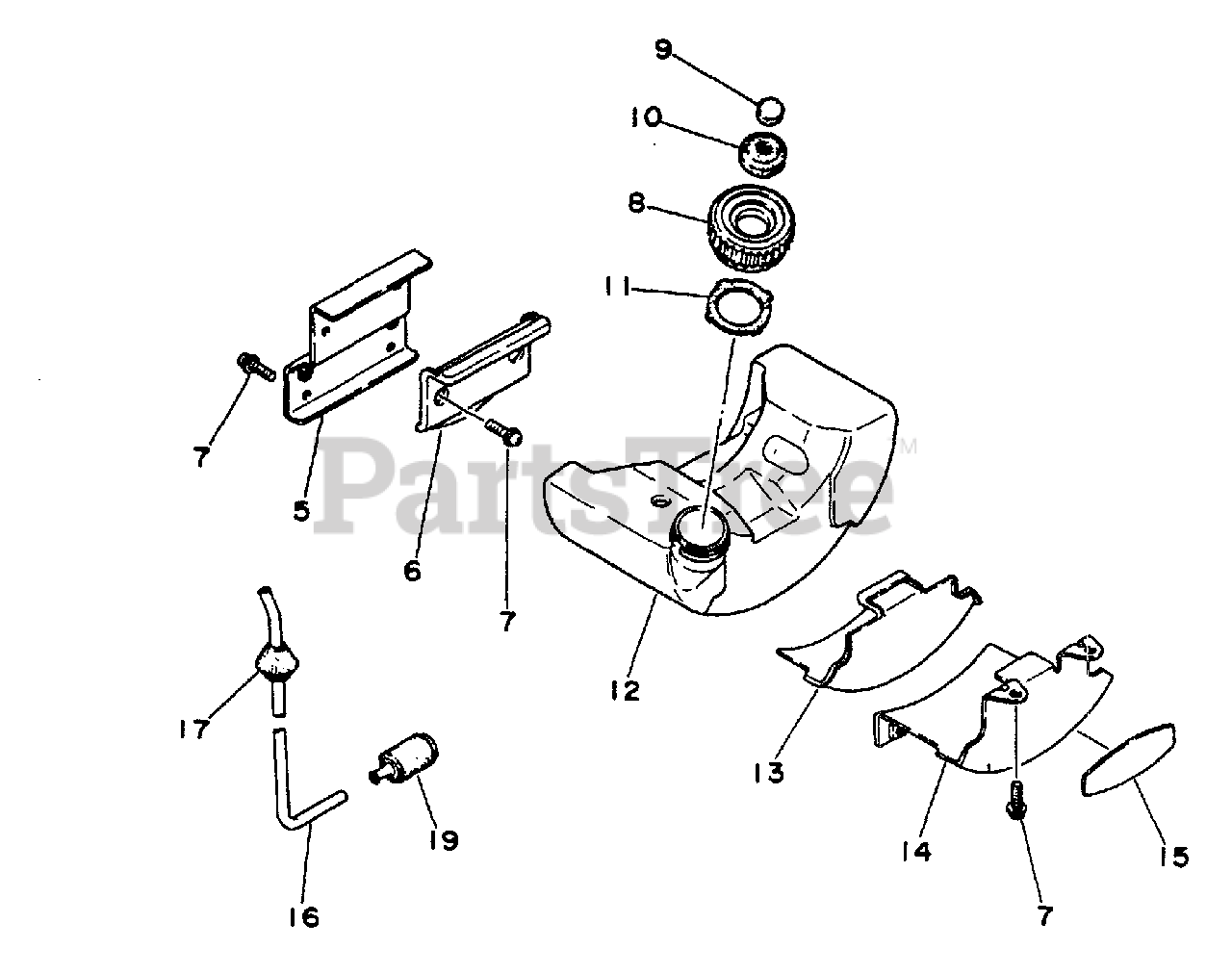

Fuel System Parts Diagram

  • Title

5

Echo 13191009220

BRACKET, FUEL TANK

$7.49

$

Usually ships in 2-4 days

0

6

Echo 13192009220

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

7

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

8

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Includes 9, 10 and 11

$

$

Not available

9

Echo 13131505020

FILTER, CHECK VALVE

$0.99

$

In Stock, Qty 8

0

10

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

11

Echo 13101604920

PACKING

$2.99

$

Usually ships in 2-4 days

0

12

Echo 13101009220

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

13

Echo 13192409220

CUSHION

$

$

Not available

14

Echo 13191809220

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

15

Echo 89011824030

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

16

Echo 13200709220

PIPE, FUEL - 3×6×135
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

17

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

19

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0
